The D-Link DES-F1010P-E is a 10-port unmanaged Fast Ethernet switch designed for surveillance and small business applications. It features 8 PoE+ ports supporting IEEE 802.3af/at standards, delivering up to 30W per port, and 2 uplink ports. With a total PoE power budget of 96W and extended PoE transmission up to 250 meters, it is ideal for powering IP cameras, access points, and other PoE-enabled devices. The switch also includes features like VLAN, QoS, and 6kV surge protection for enhanced performance and reliability.
Key Features:
8 x 10/100 Mbps PoE+ ports (up to 30W per port)
2 x 10/100 Mbps uplink ports
Total PoE power budget: 96W
Extended PoE transmission up to 250 meters
Supports IEEE 802.3af/at standards
VLAN support for network segmentation
Quality of Service (QoS) for traffic prioritization
6kV surge protection on all ports
Fanless design for silent operation
Plug-and-play installation
Specifications:Dimensions: 184 x 94 x 27 mmWeight: 0.95 kgMaterial: Metal chassisColor Options: BlackPower Requirements: External power adapter: 100-240V AC, 50/60Hz, 52V/1.85AOther Specs:
Switching Capacity: 2 Gbps
Packet Forwarding Rate: 1.49 Mpps
MAC Address Table: 2K entries
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 90% non-condensing
Standards Compliance: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
The Dahua CS4010-8GT-110 is a 10-port cloud-managed desktop Gigabit switch featuring 8 PoE ports. Designed for efficient network management, it supports IEEE802.3af/at/bt and Hi-PoE standards, offering intelligent PoE power consumption management. Its robust metal casing ensures durability, making it ideal for various networking environments.
Key Features:
8 × RJ-45 10/100/1000 Mbps PoE ports
2 × RJ-45 10/100/1000 Mbps uplink ports
Supports IEEE802.3af/at/bt and Hi-PoE standards
Intelligent PoE power management
Cloud management via DoLynk platform
Supports STP/RSTP and port-based VLAN
Full metal casing with IP30 protection
Desktop and wall-mount installation options
Specifications:
Dimensions: 190 mm × 106 mm × 30 mm
Weight: 0.55 kg (net), 1.3 kg (gross)
Material: Sheet metal
Color Options: Black
Power Requirements: External power supply: 54 VDC, 2.22 A
Other Specs:
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
MAC Address Table: 8K entries
Packet Buffer Size: 4 Mbit
Jumbo Frame Size: 15K bytes
PoE Power Budget: Port 1 ≤ 90 W, Ports 2–8 ≤ 30 W each, Total ≤ 110 W
Operating Temperature: –10°C to +55°C
Storage Temperature: –40°C to +70°C
Operating Humidity: 5%–95% (non-condensing)
Lightning Protection: Common mode: 4 kV; Differential mode: 2 kV
Static Protection: Air discharge: 8 kV; Contact discharge: 6 kV
Management: Web and app-based via DoLynk platform
The D-Link DMC-520SSC is a media converter that transforms 10/100 Mbps Fast Ethernet twisted-pair signals into 100BASE-FX Fast Ethernet single-mode fiber signals. It supports fiber cable distances up to 20 km, making it ideal for extending network connections over long distances.
Key Features:
Converts 10/100 Mbps Ethernet to 100 Mbps single-mode fiber
Supports fiber cable distances up to 20 km
Auto MDI/MDIX for easy installation
Can operate as a standalone device or within the DMC-1014 chassis
Fiber wavelength: 1310 nm
Specifications:
Dimensions: 95 x 70 x 26 mm
Material: Metal housing
Power Requirements: 5 V / 1 A external power adapter
Other Specs:
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 90% RH, non-condensing
Emission Certifications: FCC, CE, VCCI
The Dahua DH-PFM920I-6UN-C-100 is a 100-meter unshielded twisted pair (UTP) CAT6 cable designed for high-performance data transmission. It features high-purity oxygen-free copper conductors and a customized PVC outer sheath, ensuring reliable connectivity and compliance with CE CPR Eca flame retardant standards.
Key Features:
100m (328ft) UTP CAT6 cable
High-purity oxygen-free copper conductor (99.97% purity)
Customized PVC outer sheath; CE CPR Eca flame retardant class certified
Supports Power over Ethernet (PoE)
10-year quality commitment
Specifications:
Dimensions: Cable diameter: 6.0 mm ± 0.3 mm
Weight: Net weight: 3.8 kg ± 0.3 kg
Material: Conductor: Oxygen-free copper; Insulation: HDPE; Sheath: PVC
Color Options: White
Power Requirements: Supports PoE applications
Other Specs:
Conductor diameter: 0.53 mm ± 0.01 mm
Insulation diameter: 0.95 mm ± 0.1 mm
Characteristic impedance: 100Ω ± 15Ω
Operating temperature: –20°C to +60°C
Storage temperature: –10°C to +40°C, <60% RH
Packaging dimensions: 286 mm × 119 mm × 289 mm
Packaging method: 100 m/carton, 4 inner cartons in one package
Compliance: CE CPR Eca certified

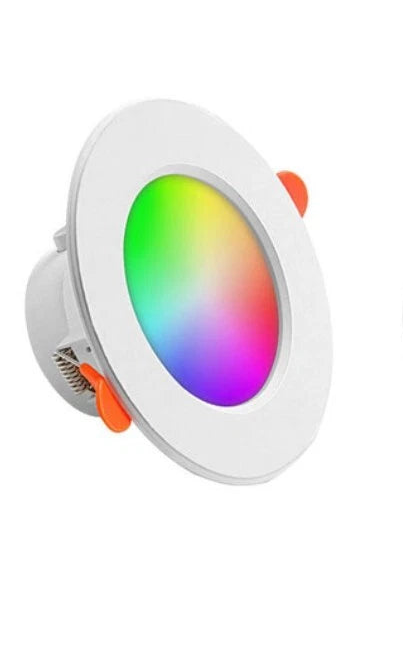

A 10W RGB smart spotlight that supports WiFi and Bluetooth, allowing you to control lighting, color, and brightness via a smartphone app or voice commands.
Key Features:
Remote control via smartphone app
Supports WiFi and Bluetooth
Compatible with Amazon Alexa and Google Assistant
Adjustable colors and brightness
Scheduling for auto on/off lighting
Specifications:
Color Options: RGB multicolor
Power Requirements: 220–240V ~ 50/60Hz
Other Specs: 120° beam angle, IP44 protection rating
The Dahua DH-PFS3211-8GT-120 is an 11-port unmanaged industrial-grade PoE switch designed for harsh environments. It offers 8 Gigabit PoE ports, 2 SFP uplink ports, and 1 Gigabit uplink port, supporting high-power devices and long-distance transmission.
Key Features:
8 × 10/100/1000 Mbps PoE ports
2 × 1000 Mbps SFP uplink ports
1 × 10/100/1000 Mbps RJ-45 uplink port
Supports IEEE802.3af/at/bt and Hi-PoE standards
Total PoE power budget: 120W
PoE Watchdog for automatic device reboot
Extend Mode for long-distance PoE transmission up to 250m
Wide operating temperature range: -30°C to +65°C
High lightning protection: Common Mode 4KV, Differential Mode 2KV
Specifications:
Dimensions: 150 mm × 110 mm × 42 mm
Weight: 0.62 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: DC 48–57V
Other Specs:
Switching Capacity: 33 Gbps
Packet Forwarding Rate: 16.37 Mpps
Packet Buffer Memory: 1.75 Mb
MAC Address Table: 4K entries
Flow Control: Enabled by default
Humidity: 10%–90%
ESD Protection: Contact discharge ±6kV, Air discharge ±8kV
The Dahua DHI-NVR608H-128-XI is a high-performance 128-channel network video recorder (NVR) from the WizMind series, designed for large-scale IP surveillance applications. It supports advanced AI features, including face recognition, perimeter protection, and smart motion detection, making it ideal for enterprise-level security systems.
Key Features:
Supports up to 128 IP camera inputs
AI by Recorder: 8-channel face detection and recognition, 8-channel metadata, 32-channel perimeter protection, 32-channel SMD Plus
AI by Camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
Supports AcuPick with up to 64 channels
Max. decoding capability: 32 × 1080p@30 fps
Max. 1280/1280/1024 Mbps incoming/recording/outgoing bandwidth
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Supports N+M cluster, RAID 0/1/5/6/10, and iSCSI
Drawer-like chassis design allows for HDD hot swapping
Supports EPTZ, One-click Arming & Disarming
Security baseline 2.3
Specifications:
Dimensions: 444 mm × 459.6 mm × 95 mm
Weight: 6.4 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: 100–240 V AC, 50–60 Hz, <18 W (without HDD)
Other Specs:
Video Input: 128 channels
Alarm Input/Output: 16/8 channels
Audio Input/Output: 1/1 channel
Video Output: 4 HDMI, 2 VGA
USB Ports: 2 × USB 2.0, 2 × USB 3.2 Gen 1 Type-A
Ethernet Ports: 2 × RJ-45 (10/100/1000 Mbps)
eSATA Ports: 1
HDD Bays: 8 SATA interfaces, up to 16 TB per HDD
Operating Temperature: -10°C to 55°C
Operating Humidity: 10% to 93% (non-condensing)
Certifications: CE, FCC
The Dahua DHI-NVR616H-128-XI is a high-performance 128-channel network video recorder from the WizMind series, designed for large-scale surveillance applications. It supports advanced AI features such as face detection, perimeter protection, and SMD Plus, ensuring intelligent and efficient video monitoring.
Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Maximum decoding capability: 32 × 1080p@30 fps
Maximum 1280 Mbps incoming, 1280 Mbps recording, and 1024 Mbps outgoing bandwidth
Supports IP cameras with resolutions up to 32 MP
AI by recorder: 8-channel face detection and recognition, up to 40 face databases and 300,000 face images; 8-channel metadata; 32-channel perimeter protection; 32-channel SMD Plus
AI by camera: supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
Supports AcuPick with up to 64 channels
Supports N+M cluster, RAID 0/1/5/6/10, and iSCSI
Drawer-like chassis design allows for HDD hot swapping
Supports EPTZ, one-click arming & disarming
Security baseline 2.3
Specifications:
Dimensions: 485 mm × 133.2 mm × 508.3 mm
Weight: Approximately 11.95 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: AC 100–240V, 50/60Hz
Other Specs:
16 SATA III ports, each supporting up to 10 TB HDD
4 HDMI (HDMI3 up to 8K) and 2 VGA video outputs
Supports various network protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI
Browser support: Chrome, IE, Safari, Edge, Firefox
The Dahua NVR2216-16P-I is a 16-channel network video recorder featuring 16 PoE ports and integrated WizSense AI technology. It supports up to 12MP resolution, advanced AI functions like face detection and perimeter protection, and offers a user-friendly interface for efficient surveillance management
Key Features:
16-channel IP camera input
16 PoE ports for power and data transmission
Supports H.265/H.264/Smart H.265+/Smart H.264+/MJPEG video compression
Max decoding capability: 6 × 1080p@30fps
AI functions: 1-channel face detection and recognition, 2-channel perimeter protection, 4-channel SMD Plus
Supports up to 10 face databases and 5,000 face images
Simultaneous HDMI (up to 4K) and VGA video output
Supports ONVIF and RTSP protocols for third-party camera integration
Remote access via mobile app
Specifications:
Dimensions: 375 mm × 329.3 mm × 53 mm
Weight: Net weight: 2.63 kg; Gross weight: 3.91 kg
Material: Metal chassis
Color Options: Black
Power Requirements: 100V–240V AC, 47Hz–63Hz, 3.5A; PoE total output: 130W, max 25.5W per port
Other Specs:
Operating temperature: –10°C to +55°C
Operating humidity: 10%–93% RH
Storage: 2 SATA ports, up to 10 TB per HDD
Network bandwidth: 200 Mbps (access), 200 Mbps (storage), 100 Mbps (forwarding)
Audio input/output: 1/1 RCA
Alarm input/output: 4/2
The Dahua DH-XVR1B16-I is a 16-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP camera inputs. It features AI Coding, Smart H.265+ compression, and SMD Plus for efficient and intelligent surveillance.
Key Features:
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
H.265+/H.265 dual-stream video compression
Full-channel AI Coding
Up to 18 IP camera inputs, each up to 6MP
Max 64 Mbps incoming bandwidth
8-channel SMD Plus for analog channels
Auto-detection of front-camera signals
Specifications:
Dimensions: 260 mm × 231.4 mm × 47.6 mm
Weight: 0.89 kg
Material: Metal
Color Options: Black
Power Requirements: 12V DC, 2A
Other Specs:
Analog Camera Input: 16 channels, BNC
IP Camera Input: 16+2 channels, up to 6MP per channel
Video Output: 1 HDMI, 1 VGA
Audio In/Out: 1/1 RCA
Recording Resolution: Up to 6MP
Storage: 1 SATA port, up to 6TB
Network Interface: 1 RJ-45 port (10/100 Mbps)
USB Ports: 2 USB 2.0
Operating Temperature: -10°C to +55°C
Operating Humidity: 0%–90%
The Dahua DHI-NVR4216-16P-4KS2 is a 16-channel network video recorder from the Lite Series, designed for high-definition IP surveillance. It supports 4K resolution processing and advanced H.265 compression, ensuring efficient storage and high-quality video recording.
Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Maximum decoding capability: 8 × 1080p@30 fps
Maximum 160 Mbps incoming bandwidth
Supports IP cameras with resolutions up to 8 MP
16 PoE ports for easy camera installation
Supports ONVIF, CGI, and SDK for third-party camera access
Video output: 1 VGA, 1 HDMI (up to 4K)
Remote access via DMSS app for iOS and Android
Specifications:
Dimensions: 375 mm × 327.5 mm × 53 mm
Weight: 2.7 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: AC 100–240V, 50/60Hz
Other Specs:
2 SATA III ports, each supporting up to 10 TB HDD
1-channel RCA audio input and output
4 alarm inputs and 2 alarm outputs
Supports various network protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration
Browser support: Chrome, IE, Safari, Edge, Firefox
The Dahua DHI-NVR5216-EI is a 16-channel network video recorder from the WizSense series, designed for high-performance IP surveillance applications. It supports advanced AI features, including face recognition, perimeter protection, and Smart Motion Detection Plus (SMD Plus), making it suitable for various security scenarios.
Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Maximum decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps
Maximum 384 Mbps incoming/recording/outgoing bandwidth
Supports IP cameras with resolutions up to 32 MP
AI by Recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
AI by Camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
Supports AcuPick with up to 16 channels
Supports N+M cluster and iSCSI
Specifications:
Dimensions: 375 mm × 327 mm × 53 mm
Weight: 2.6 kg
Material: Metal
Color Options: Black
Power Requirements: 100–240V AC, 50/60 Hz
Other Specs:
Video Output: 1 HDMI (up to 3840 × 2160), 1 VGA (up to 1920 × 1080)
Audio Input/Output: 1/1 RCA
Alarm Input/Output: 4/2 channels
HDD: 2 SATA ports, each supporting up to 20 TB
Network Interface: 1 × 10/100/1000 Mbps Ethernet port
USB Ports: 2 × USB 2.0, 1 × USB 3.0
Operating Temperature: –10°C to +55°C
Operating Humidity: 10%–90% RH
The Dahua DHI-NVR4216-4KS2/L is a 16-channel network video recorder from the Lite Series, designed for high-definition surveillance applications. It supports up to 8MP resolution, H.265+/H.264+ compression, and advanced AI features when paired with compatible cameras.
Key Features:
Supports up to 16 IP camera inputs.
Maximum decoding capability: 8 × 1080p@30 fps.
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats.
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD.
P2P remote surveillance, video playback on mobile devices.
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K.
Supports mainstream cameras of ONVIF and RTSP protocols.
Remote configuration and management of IPCs, including parameter settings, information retrieval, and batch upgrades.
Specifications:
Dimensions: 375 mm × 282.4 mm × 53 mm
Weight: 1.51 kg (net), 2.76 kg (gross)
Material: Metal enclosure
Color Options: Black
Power Requirements: 12 V DC, 4 A; Power consumption <10 W (without HDD)
Other Specs:
Video Input: 16 channels
Audio Input/Output: 1/1 RCA
Video Output: 1 HDMI (up to 4K), 1 VGA
USB Ports: 2 × USB 2.0 (1 front, 1 rear)
Network Interface: 1 × RJ-45 (10/100/1000 Mbps)
HDD Bays: 2 SATA III ports, up to 10 TB per HDD
Alarm Input/Output: 4/2 channels
Operating Temperature: –10 °C to +55 °C
Operating Humidity: 10%–93% (non-condensing)
Certifications: CE, FCC
The Dahua XVR5116H-4KL-I3 is a powerful 16-channel 4K digital video recorder designed for high-performance surveillance. It supports multiple video input formats and advanced AI features, making it ideal for secure and intelligent monitoring environments.
Key Features:
16-channel HDCVI/AHD/TVI/CVBS/IPC input
Up to 32-channel IP camera access (each up to 8MP)
Supports H.265+/H.265 compression
16-channel SMD Plus for analog channels
8-channel perimeter protection for analog channels
2-channel face recognition for analog channels
Supports QuickPick 2.0 and privacy protection
AI search and smart detection technology
Supports full-channel AI Coding
HDMI (up to 4K) and VGA output
Specifications:
Dimensions: 325 mm × 255 mm × 55 mm
Weight: 1.23 kg
Material: Metal
Color Options: Black
Power Requirements: 12V DC, 2A
Other Specs:
1 SATA port (up to 10 TB)
16 alarm inputs, 3 alarm outputs
Operating Temp: -10°C to +55°C
Humidity: 10%–90% RH
The Dahua DH-XVR5216AN-4KL-I3 is a 16-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP video inputs. It features advanced AI capabilities, including perimeter protection, face recognition, and Smart Motion Detection Plus (SMD Plus). With support for up to 32 IP channels and 4K resolution, it offers comprehensive surveillance solutions.
Key Features:
Supports 16 analog channels and up to 32 IP channels (each up to 8MP)
H.265+/H.265 dual-stream video compression
AI functions: 16-channel SMD Plus, 8-channel perimeter protection, 2-channel face recognition
QuickPick 2.0 for efficient target retrieval
Privacy protection with real-time face masking
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Maximum incoming bandwidth of 128 Mbps
Specifications:
Dimensions: 375 mm × 334.4 mm × 53 mm
Weight: 1.80 kg
Material: Metal casing
Color Options: Black
Power Requirements: 100–240V AC, 50/60Hz; <15W (without HDD)
Other Specs:
Video Input: 16 BNC ports
Audio Input/Output: 1/1 RCA; 16-channel BNC (Coaxial Audio)
Video Output: 1 HDMI, 1 VGA
Storage: 2 SATA ports, up to 16TB per HDD
USB Ports: 2 (1 front USB 2.0; 1 rear USB 3.0)
Network Interface: 1 RJ-45, 10/100/1000 Mbps Ethernet port
Operating Conditions: –10°C to +55°C; 10%–90% RH
Certifications: CE, FCC
The Dahua DH-XVR1B16H-I is a 16-channel Penta-brid digital video recorder from the WizSense series, designed for high-definition surveillance applications. It supports multiple video formats and incorporates AI features for enhanced security monitoring.
Key Features:
16-channel SMD Plus for analog channels or 24-channel SMD by camera, enabling accurate human and vehicle detection.
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs.
H.265+/H.265 dual-stream video compression for efficient storage and bandwidth usage.
Supports full-channel AI Coding.
Supports up to 24 IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
Long transmission distance over coaxial cable.
POS functionalities for retail applications.
Specifications:
Dimensions: 260 mm × 231.4 mm × 47.6 mm
Weight: 0.93 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: 12 VDC, 2 A; Power consumption <12 W (without HDD)
Other Specs:
Video Input: 16 channels (BNC)
IP Camera Input: Up to 24 channels, each up to 6MP
Audio In/Out: 1/1 RCA
Video Output: 1 HDMI, 1 VGA
USB Ports: 2 × USB 2.0
Network Interface: 1 × RJ-45 (100 Mbps)
HDD: 1 SATA port, up to 6TB capacity
Operating Temperature: –10 °C to +45 °C
Operating Humidity: 10%–90% (non-condensing)
Certifications: CE, FCC
The Dahua DH-XVR5116H-I3 is a 16-channel Penta-brid digital video recorder from the WizSense series. It supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, providing flexibility for various surveillance setups. With advanced AI features like SMD Plus, perimeter protection, and face recognition, it enhances security monitoring by reducing false alarms and enabling accurate human and vehicle detection
Key Features:
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
Up to 16 analog channels and 8 IP channels (total of 24 channels)
Maximum 128 Mbps incoming bandwidth
Supports up to 5MP HDCVI and 6MP IP camera inputs
Smart H.265+/H.265 dual-stream video compression
16-channel SMD Plus for human/vehicle classification
4-channel perimeter protection with tripwire and intrusion detection
2-channel face recognition with up to 10 face databases and 20,000 images
Supports IoT and POS functionalities
Specifications:
Video Compression: H.265+/H.265/H.264+/H.264
Audio Compression: G.711a, G.711u, PCM
Video Outputs: 1 HDMI (up to 4K), 1 VGA (up to 1080P)
Audio Inputs/Outputs: 1/1 RCA, supports two-way talk
Recording Resolution: 5M-N, 4M-N, 1080P, 720P, 960H, D1, CIF
Playback: Up to 16 channels simultaneous playback
Storage: 1 SATA port, up to 16TB capacity
Network Interface: 1 RJ-45 port (10/100/1000 Mbps)
USB Interface: 1 USB 2.0, 1 USB 3.0
Power Supply: 12V DC, 2A
Power Consumption: <12W (without HDD)
Working Temperature: -10°C to +55°C (14°F to 131°F)
Dimensions: 325 mm × 257 mm × 55 mm
Weight: 1.15 kg (without HDD)
The D-Link DES-F1016P-E is a 16-port Fast Ethernet PoE+ switch designed for surveillance and network expansion. It features 16 PoE-enabled ports and 1 Gigabit Combo (RJ45/SFP) uplink port, supporting a total PoE power budget of 150W. With a maximum transmission distance of 250 meters, it's ideal for powering devices like IP cameras and access points over extended distances.
Key Features:
16 x 10/100 Mbps PoE ports
1 x Gigabit Combo (RJ45/SFP) uplink port
Supports IEEE 802.3af/at PoE standards
Total PoE power budget of 150W
Maximum transmission distance of 250 meters
Plug-and-play installation with no configuration required
IEEE 802.3x Flow Control for reliable data transmission
Auto MDI/MDIX crossover for all ports
Fanless design for silent operation
Specifications:
Dimensions: 285 x 180 x 44 mm
Weight: 2.1 kg
Material: Metal housing
Color Options: Black
Power Requirements: 100–240 V AC, 50/60 Hz
Other Specs:
Switching Capacity: 5.2 Gbps
Packet Forwarding Rate: 3.868 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: Not specified
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 70°C
Humidity: Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing
Certifications: CE, FCC, RoHS
The D-Link DES-1016A is a 16-port unmanaged Fast Ethernet switch designed for small to medium-sized businesses and SOHO environments. It offers plug-and-play installation, making it easy to expand your network by adding more devices. Each port supports auto-negotiation for 10/100 Mbps speeds and auto MDI/MDI-X crossover, eliminating the need for crossover cables. The switch features a non-blocking architecture, ensuring maximum throughput, and supports IEEE 802.3az Energy-Efficient Ethernet to reduce power consumption during low data activity periods.
Key Features:
16 x 10/100 Mbps Fast Ethernet ports
Auto MDI/MDIX crossover for all ports
IEEE 802.3az Energy-Efficient Ethernet (EEE) compliance
Store-and-forward switching method
3.2 Gbps switching fabric
Fanless design for silent operation
Plug-and-play installation
Specifications:Dimensions: 155.7 x 122 x 41 mmWeight: 0.27 kgMaterial: Plastic casingColor Options: BlackPower Requirements: 100–240V AC, 50/60HzOther Specs:
Switching Capacity: 3.2 Gbps
Packet Forwarding Rate: 2.38 Mpps
MAC Address Table: 8K entries
Buffer Memory: 256 KB
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 90% non-condensing
Standards Compliance: IEEE 802.3, 802.3u, 802.3x, 802.3az
The D-Link DES-1016A/E is a 16-port 10/100 Mbps unmanaged switch designed for small offices and home networks. It offers reliable performance with energy-saving features, making it ideal for expanding network connectivity efficiently.
Key Features:
Sixteen 10/100 Mbps Fast Ethernet ports
Auto MDI/MDIX crossover for all ports
3.2 Gbps switching fabric
IEEE 802.3x Flow Control
IEEE 802.1P QoS support
Fanless design for silent operation
Plug and play installation
D-Link Green Technology for energy efficiency
Specifications:Dimensions: 155.7 × 122 × 41 mmWeight: 0.27 kgMaterial: Plastic casingColor Options: BlackPower Requirements: 100 to 240 V ACOther Specs:
Switching Capacity: 3.2 Gbps
Packet Buffer Size: 2 MB
Maximum Forwarding Rate: 2.38 Mpps
Operating Temperature: 0 ~ 40 °C
Storage Temperature: -40 ~ 70 °C
Operating Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 90% RH
The Dahua DH-PFS4218-16GT-190 is a Layer 2 managed PoE switch featuring 16 Gigabit Ethernet ports with PoE support and 2 Gigabit SFP uplink ports. Designed for high-definition video transmission, it offers robust network management capabilities, making it ideal for surveillance systems and enterprise networks.
Key Features:
16× 10/100/1000 Mbps PoE ports
2× 1000 Mbps SFP uplink ports
Supports IEEE802.3af, IEEE802.3at, and Hi-PoE standards
Total PoE power budget: 190W
Port 1 and 2 support up to 60W (Hi-PoE)
Switching capacity: 52 Gbps
Packet forwarding rate: 23.81 Mpps
4 Mb packet buffer memory
MAC address table: 8K entries
Supports STP/RSTP/MSTP for network redundancy
Network management via Web, Telnet, CLI, and SNMP v1/v2c/v3
Enhanced security features: IEEE802.1X, HTTPS, SSH/SSL
QoS support with IEEE802.1p/1Q, CoS/ToS
EMC high protection design
Specifications:
Dimensions: 440 mm × 300 mm × 44 mm
Material: Metal casing
Color Options: Black
Power Requirements: AC 100–240V, 50/60Hz
Other Specs:
Operating Temperature: –10°C to +55°C
Operating Humidity: 5%–95% RH (non-condensing)
Lightning Protection: Common mode: 2KV; Differential mode: 1KV
Management Interfaces: 1× RS232 console port
The Dahua XVR7216AN-4K-I3 is a 16-channel Penta-brid 4K digital video recorder from the WizSense series, designed for high-performance surveillance applications. It supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, providing flexibility in system integration. With advanced AI features such as SMD Plus, perimeter protection, and face recognition, it enhances security monitoring and reduces false alarms.
Key Features:
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
Up to 32-channel IP camera inputs, each channel up to 8MP
H.265+/H.265 dual-stream video compression
16-channel AI Coding for efficient storage and bandwidth usage
Up to 16 channels SMD Plus for accurate human and vehicle detection
12-channel perimeter protection with tripwire and intrusion detection
6-channel face recognition with a database capacity of up to 20,000 images
1-channel privacy protection for real-time face masking
Supports QuickPick 2.0 for efficient target retrieval
IoT and POS functionalities
Specifications:
Dimensions: 375 mm × 287 mm × 53 mm
Weight: 2.4 kg
Material: Metal chassis
Color Options: Black
Power Requirements: DC 12V, 5A
Other Specs:
Video Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711u, PCM
Video Output: 1 HDMI (up to 4K), 1 VGA
Audio Input/Output: 1-channel RCA input, 1-channel RCA output
Two-way Talk: Supported (shares audio input with the first channel)
HDD Interface: 2 SATA ports, up to 16TB capacity for each disk
USB Ports: 1 front USB 2.0, 1 rear USB 3.0
Network Interface: 1 RJ-45 port (10/100/1000 Mbps)
RS-485: 1 port for PTZ control
Alarm Input/Output: 16-channel BNC (coaxial audio), 1-channel RCA output
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90% RH (non-condensing)
Certifications: CE, FCC
The Dahua XVR7216AN-4K-I3 is a 16-channel Penta-brid 4K digital video recorder from the WizSense series, designed for high-performance surveillance applications. It supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, providing flexibility in system integration. With advanced AI features such as SMD Plus, perimeter protection, and face recognition, it enhances security monitoring and reduces false alarms.
Key Features:
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
Up to 32-channel IP camera inputs, each channel up to 8MP
H.265+/H.265 dual-stream video compression
16-channel AI Coding for efficient storage and bandwidth usage
Up to 16 channels SMD Plus for accurate human and vehicle detection
12-channel perimeter protection with tripwire and intrusion detection
6-channel face recognition with a database capacity of up to 20,000 images
1-channel privacy protection for real-time face masking
Supports QuickPick 2.0 for efficient target retrieval
IoT and POS functionalities
Specifications:
Dimensions: 375 mm × 287 mm × 53 mm
Weight: 2.4 kg
Material: Metal chassis
Color Options: Black
Power Requirements: DC 12V, 5A
Other Specs:
Video Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711u, PCM
Video Output: 1 HDMI (up to 4K), 1 VGA
Audio Input/Output: 1-channel RCA input, 1-channel RCA output
Two-way Talk: Supported (shares audio input with the first channel)
HDD Interface: 2 SATA ports, up to 16TB capacity for each disk
USB Ports: 1 front USB 2.0, 1 rear USB 3.0
Network Interface: 1 RJ-45 port (10/100/1000 Mbps)
RS-485: 1 port for PTZ control
Alarm Input/Output: 16-channel BNC (coaxial audio), 1-channel RCA output
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90% RH (non-condensing)
Certifications: CE, FCC
The Dahua XVR5116HS-I3 is a 16-channel Penta-brid digital video recorder designed for high-definition surveillance systems. It supports HDCVI, AHD, TVI, CVBS, and IP video inputs, offering flexibility for various camera types. With advanced AI features like SMD Plus, perimeter protection, and face recognition, it enhances security monitoring and reduces false alarms.
Key Features:
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Up to 16 analog channels and 8 IP channels (total 24 channels)
Supports up to 6MP IP camera input
H.265+/H.265 dual-stream video compression
Full-channel AI Coding
16-channel SMD Plus for analog channels
4-channel perimeter protection for analog channels
2-channel face recognition for analog channels
IoT & POS functionalities
Specifications:
Dimensions: 260 mm × 237.9 mm × 47.6 mm
Weight: 1.17 kg (net), 1.57 kg (gross)
Material: Metal enclosure
Color Options: Black
Power Requirements: DC12V, 2A; Power consumption <12W
Other Specs:
Video Outputs: 1 HDMI, 1 VGA
Audio Inputs/Outputs: 1 RCA input, 1 RCA output
Two-way Talk: Supported
HDD: 1 SATA port, up to 16TB
Network Interface: 1 RJ-45 port (10/100/1000 Mbps)
USB Ports: 1 USB 2.0, 1 USB 3.0
Operating Temperature: –10°C to +55°C
Operating Humidity: 10%–90%
The Dahua LR2218-16ET-240 is an 18-port Layer 2 managed ePoE switch designed for long-distance power and data transmission. It supports Dahua's Enhanced Power over Ethernet (ePoE) technology, enabling PoE transmission up to 800 meters over Ethernet cables. The switch offers advanced features like VLAN, QoS, and PoE management, making it ideal for surveillance systems and other network applications.
Key Features:
Supports long-distance PoE transmission up to 800 meters with ePoE technology
Ports 1–8 support three self-adaptive transmission modes: IEEE, E100, and E10
Ports 1–8 support both twisted-pair and coaxial cable transmission
Compliant with IEEE802.3af, IEEE802.3at, and Hi-PoE standards
Supports web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
PoE management features including Green PoE and Legacy Support
Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab/z, and IEEE802.3X standards
Specifications:
Dimensions: 440 mm × 300 mm × 44 mm
Weight: 3.14 kg
Material: Sheet metal
Color Options: Black
Power Requirements: 100–240V AC, 50/60 Hz
Other Specs:
Ethernet Ports: 16 × 10/100 Mbps RJ-45 PoE ports
Uplink Ports: 2 × 10/100/1000 Mbps RJ-45 and 2 × 1000 Mbps SFP combo ports
PoE Power Budget: 240W total; Ports 1–2 support up to 60W (Hi-PoE), Ports 3–16 support up to 30W each
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 5.36 Mpps
Packet Buffer Memory: 2.75 Mb
MAC Table Size: 4K
VLAN Support: Supports up to 31 VLANs
Operating Temperature: –10°C to +55°C
Operating Humidity: 5%–95% RH
Lightning Protection: Common mode: 4KV; Differential mode: 2KV
The D-Link DGS-1210-20 is a 20-port Gigabit Smart Managed Switch designed for small to medium-sized businesses seeking a cost-effective and flexible network solution. It features 16 10/100/1000BASE-T ports and 4 Gigabit RJ45/SFP combo ports, providing high-speed connectivity and scalability. With advanced Layer 2 features, energy-efficient technology, and multiple management options, it ensures efficient and reliable network performance.
Key Features:
16 x 10/100/1000BASE-T ports
4 x Gigabit RJ45/SFP combo ports
Advanced Layer 2 features: VLANs, QoS, IGMP Snooping, Link Aggregation
Auto Surveillance VLAN and Auto Voice VLAN for optimized traffic management
Energy-efficient design with D-Link Green Technology
Multiple management interfaces: Web-based GUI, SNMP, CLI, and D-Link Network Assistant
Fanless design for silent operation
Specifications:Dimensions: 440 x 210 x 44 mmWeight: 2.5 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100–240 V AC, 50/60 HzOther Specs:
Switching Capacity: 40 Gbps
Forwarding Rate: 29.8 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 1.5 Mbits
Operating Temperature: 0°C to 50°C
Operating Humidity: 0% to 95% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link NPP-C61BLK241 is a 24-port Cat6 Unshielded Twisted Pair (UTP) fully loaded patch panel designed for efficient cable management and high-performance network installations. It ensures reliable connectivity in structured cabling systems.
Key Features:
24 RJ45 ports with Cat6 UTP compatibility
1U rack-mountable design suitable for standard 19” racks
Six-port RJ45 modules applied
ID stripes for identifying port allocations
Improved cable management with optional cable management bar
IDC compatible with 110 & Krone punch-down tools
Supports T568A & T568B wiring schemes
RoHS and UL certified
Specifications:
Dimensions: Standard 1U height for 19” racks
Material: Panel: SPCC, 1.6mm thickness with Black (RAL 9005) color painted; RJ45 Jack Housing: PBT+ Glass Fiber UL94V-0; Contact Bracket: PBT+ Glass Fiber UL94V-0; RJ45 Jack Contact: Phosphor Bronze with Nickel plating and 50 micro-inches Gold plating on plug contact area; IDC Housing: PC+ Glass Fiber UL94V-2; Terminal: Phosphor Bronze with Tin plating; Support Bar: SPCC, 1.6mm thickness with Black (RAL 9005) color painted; PCB: FR4 UL94V-0
Color Options: Black
Other Specs: Insertion force: 20N max (IEC 60603-7-4); Retention strength: 7.7 kg between jack and plug; Operating temperature: -10°C to 60°C; Life (mating cycles): Jack: 750 cycles min (ISO/IEC 11801, IEC 60603-7-4); IDC: suitable for 22-26 AWG stranded and solid wire
The D-Link DES-1024D is a 24-port unmanaged Fast Ethernet switch designed for small to medium-sized businesses. It offers plug-and-play installation, making it easy to expand your network by adding more devices. Each port supports auto-negotiation for 10/100 Mbps speeds and auto MDI/MDI-X crossover, eliminating the need for crossover cables. The switch features a non-blocking architecture, ensuring maximum throughput, and supports IEEE 802.3az Energy-Efficient Ethernet to reduce power consumption during low data activity periods.
Key Features:
24 x 10/100 Mbps RJ-45 ports
Auto-negotiation and auto MDI/MDI-X support on all ports
Non-blocking wire-speed architecture
IEEE 802.3az Energy-Efficient Ethernet (EEE) compliance
Store-and-forward switching method
8K MAC address table
Fanless design for silent operation
Desktop or rackmount installation options
Specifications:Dimensions: 282 x 150 x 44 mmWeight: 1.14 kgMaterial: Metal chassisColor Options: BlackPower Requirements: 100–240V AC, 50/60HzOther Specs:
Switching Capacity: 4.8 Gbps
Packet Forwarding Rate: 3.57 Mpps
MAC Address Table: 8K entries
Buffer Memory: 256 KB
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% to 95% non-condensing
Standards Compliance: IEEE 802.3, 802.3u, 802.3x, 802.3az
The D-Link DGS-1024C is a 24-port Gigabit Unmanaged Switch designed for small to medium-sized businesses seeking a cost-effective and reliable network solution. It provides twenty-four 10/100/1000BASE-T ports, allowing for high-speed connectivity and easy network expansion. With its plug-and-play design, energy-efficient technology, and durable metal housing, the DGS-1024C ensures seamless and efficient network performance.
Key Features:
24 x 10/100/1000BASE-T Gigabit ports
Plug-and-play installation with no configuration required
IEEE 802.1p Quality of Service (QoS) for traffic prioritization
IEEE 802.3az Energy-Efficient Ethernet (EEE) support
Fanless design for silent operation
Durable metal housing
Cable diagnostics function
Auto MDI/MDIX crossover for all ports
Specifications:Dimensions: 282.2 x 178 x 44.5 mmWeight: 1.14 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100 to 240 V ACOther Specs:
Switching Capacity: 48 Gbps
Forwarding Rate: 35.7 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 512 KB
Jumbo Frame Support: 9,216 bytes
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 90% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link NLU-FXXUXXR-24 is a 24-port rack-mountable unloaded fiber patch panel designed for efficient fiber optic cable management in enterprise networks, data centers, and telecommunications rooms. Its modular design allows for customization with various fiber adapter types, providing flexibility and scalability for your network infrastructure.
Key Features:
24-port capacity for fiber optic terminations
19-inch rack-mountable design with 1U height
Unloaded configuration allows for customization with LC, SC, ST, or FC adapters
Durable cold-rolled steel construction with powder-coated finish
Front-mounted cable saddles for organized jumper management
Supports both simplex and duplex connections
Removable front and top covers for easy access during installation and maintenance
Includes accessory kit with cable ties, mounting ear screws, and spiral wrap tube
Specifications:
Dimensions: 410 x 310 x 43.5 mm (L x W x H)
Material: Cold-rolled steel with powder-coated finish
Color Options: Black
Other Specs:
Accommodates up to two adapter panels (175 x 37 mm each)
Supports installation of up to two splice trays (12/24 fibers per tray)
Rubber grommets for cable entry protection
Compatible with various fiber adapter types for customized configurations
The D-Link DGS-1100-26MPV2 is a 26-port Gigabit Smart Managed PoE switch designed for small to medium-sized businesses seeking a cost-effective and flexible network solution. It features 24 10/100/1000BASE-T PoE ports and 2 Gigabit RJ45/SFP combo ports, providing high-speed connectivity and scalability. With advanced Layer 2 features, energy-efficient technology, and multiple management options, it ensures efficient and reliable network performance.
Key Features:
24 x 10/100/1000BASE-T PoE ports
2 x Gigabit RJ45/SFP combo ports
Supports IEEE 802.3af/at PoE standards
PoE power budget: 370W
Advanced Layer 2 features: VLANs, QoS, IGMP Snooping, Link Aggregation
Auto Surveillance VLAN and Auto Voice VLAN for optimized traffic management
Energy-efficient design with D-Link Green Technology
Multiple management interfaces: Web-based GUI, SNMP, CLI, and D-Link Network Assistant
Fanless design for silent operation
Specifications:Dimensions: 440 x 208 x 44 mmWeight: 2.8 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100–240 V AC, 50/60 HzOther Specs:
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 512 KB
Operating Temperature: -10°C to 50°C
Operating Humidity: 0% to 95% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link DGS-1210-28P is a 28-port Gigabit Smart Managed PoE switch designed for small to medium-sized businesses seeking a cost-effective and flexible network solution. It features 24 10/100/1000BASE-T PoE ports and 4 Gigabit RJ45/SFP combo ports, providing high-speed connectivity and scalability. With advanced Layer 2 features, energy-efficient technology, and multiple management options, it ensures efficient and reliable network performance.
Key Features:
24 x 10/100/1000BASE-T PoE ports
4 x Gigabit RJ45/SFP combo ports
Supports IEEE 802.3af/at PoE standards
PoE power budget: 193W
Advanced Layer 2 features: VLANs, QoS, IGMP Snooping, Link Aggregation
Auto Surveillance VLAN and Auto Voice VLAN for optimized traffic management
Energy-efficient design with D-Link Green Technology
Multiple management interfaces: Web-based GUI, SNMP, CLI, and D-Link Network Assistant
Smart fan design for efficient cooling
Specifications:Dimensions: 440 x 210 x 44 mmWeight: 3.3 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100–240 V AC, 50/60 HzOther Specs:
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 3.5 Mbits
Operating Temperature: 0°C to 50°C
Operating Humidity: 0% to 95% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link DGS-1210-28 is a 28-port Gigabit Smart Managed Switch designed for small to medium-sized businesses seeking a cost-effective and flexible network solution. It features 24 10/100/1000BASE-T ports and 4 Gigabit RJ45/SFP combo ports, providing high-speed connectivity and scalability. With advanced Layer 2 features, energy-efficient technology, and multiple management options, it ensures efficient and reliable network performance.
Key Features:
24 x 10/100/1000BASE-T ports
4 x Gigabit RJ45/SFP combo ports
Advanced Layer 2 features: VLANs, QoS, IGMP Snooping, Link Aggregation
Auto Surveillance VLAN and Auto Voice VLAN for optimized traffic management
Energy-efficient design with D-Link Green Technology
Multiple management interfaces: Web-based GUI, SNMP, CLI, and D-Link Network Assistant
Fanless design for silent operation
Specifications:Dimensions: 440 x 210 x 44 mmWeight: 3.3 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100–240 V AC, 50/60 HzOther Specs:
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 3.5 Mbits
Operating Temperature: 0°C to 50°C
Operating Humidity: 0% to 95% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link DGS-1250-28X is a 28-port Gigabit Smart Managed Switch designed for enterprise and SMB networks. It features 24 Gigabit Ethernet ports and 4 10G SFP+ uplink ports, providing high-speed connectivity and flexibility. With advanced Layer 2 and Lite Layer 3 features, including static routing and VLAN support, it ensures efficient network management and scalability.
Key Features:
24 x 10/100/1000BASE-T ports
4 x 10G SFP+ uplink ports
Lite Layer 3 static routing
Dual image and configuration support
Advanced security features: Access Control List, 802.1X Authentication
Auto Voice VLAN and Surveillance Mode
Full CLI, SNMP, and web-based management interfaces
Supports STP/RSTP/MSTP for network redundancy
Specifications:Dimensions: 440 x 140 x 44 mmWeight: 3.86 kgMaterial: Metal enclosureColor Options: BlackPower Requirements: 100 to 240 V AC, 50/60 HzOther Specs:
Switching Capacity: 128 Gbps
Forwarding Rate: 95.24 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 12 Mbits
Jumbo Frame Support: Up to 12,000 bytes
Operating Temperature: -5°C to 50°C
Operating Humidity: 0% to 95% non-condensing
Certifications: CE, FCC, VCCI, BSMI
The D-Link DGS-3000-28XS is a high-performance Layer 2 managed switch designed for Metro Ethernet and campus networks. It offers 24 SFP ports and 4 10G SFP+ ports, providing versatile connectivity options. With features like 6kV surge protection, Ethernet Ring Protection Switching (ERPS), and advanced security protocols, it ensures reliable and secure network operations.
Key Features:
24 x 1G SFP ports
4 x 10G SFP+ ports
1 x RJ-45 console port
6kV surge protection
Redundant Power Supply (RPS) support
Ethernet Ring Protection Switching (ERPS)
Zero-Touch Provisioning (ZTP)
Quality of Service (QoS) functionality
Authentication Authorization Accounting (AAA)
Comprehensive OAM for rapid troubleshooting
IPv6-Ready
Specifications:
Dimensions: 440 x 210 x 44 mm
Weight: 2.10 kg
Material: Metal housing
Color Options: Black
Power Requirements: 100–240 V AC, 50/60 Hz
Other Specs:
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.24 Mpps
MAC Address Table: Up to 16K entries
Packet Buffer Memory: 1.5 MB
Operating Temperature: -5°C to 50°C
Storage Temperature: -20°C to 70°C
Humidity: Operating: 0% to 95% non-condensing; Storage: 0% to 95% non-condensing
Certifications: CE, FCC, RoHS

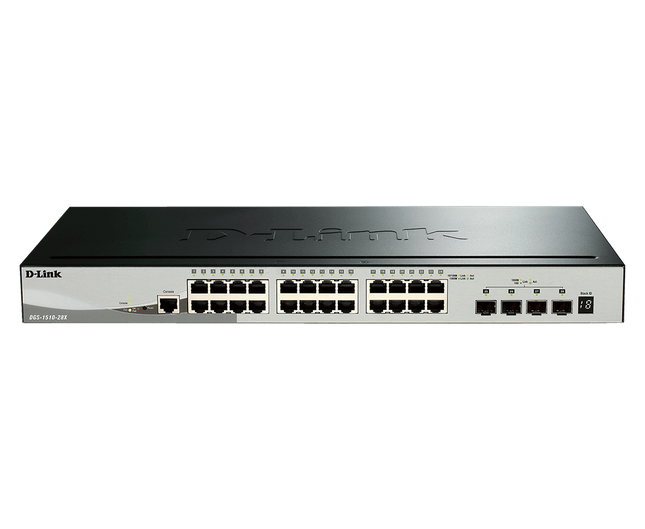

The D-Link DGS-1510-28X is a 28-port stackable Gigabit smart managed switch designed for small to medium-sized enterprises (SMEs) and small to medium-sized businesses (SMBs). It offers advanced Layer 2 and Layer 3 Lite features, including static routing, making it suitable for network aggregation and core deployments.
Key Features:
24 x 10/100/1000BASE-T ports
4 x 10G SFP+ ports for uplinks or stacking
Physical stacking support for up to 6 units (up to 288 Gigabit ports)
Virtual stacking support for up to 32 units via Single IP Management (SIM)
Layer 3 Lite features including static routing
Advanced security features: ACL, ARP Spoofing Prevention, IP-MAC-Port Binding, D-Link Safeguard Engine, DoS Attack Prevention
Quality of Service (QoS) with Auto Surveillance VLAN and Auto Voice VLAN
IPv6 Ready with dual-stack support
Energy-efficient design with D-Link Green 3.0 technology
Specifications:
Dimensions: 440 x 210 x 44 mm
Weight: Approximately 2.0 kg
Material: Metal housing
Color Options: Black
Power Requirements: 100–240 V AC, 50/60 Hz
Other Specs:
Switching Capacity: 128 Gbps
Forwarding Rate: 95.24 Mpps
MAC Address Table: 16K entries
Packet Buffer Memory: 1.5 MB
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing
Certifications: CE, FCC, RoHS
The Dahua DH-PFM920I-6UN-C is a high-performance 305-meter UTP CAT6 network cable designed for efficient data transmission and Power over Ethernet (PoE) applications. Constructed with high-purity oxygen-free copper conductors and a customized PVC outer sheath, this cable ensures reliable connectivity and meets CE CPR Eca flame retardant standards, making it suitable for various networking environments.
Key Features:
305 meters (1000 feet) per carton
High-purity (99.97%) oxygen-free copper conductors
Customized PVC outer sheath with CE CPR Eca flame retardant certification
Supports Power over Ethernet (PoE) applications
Complies with Category 6 standards for high-speed data transmission
Specifications:
Conductor Material: Oxygen-free copper (99.97% purity)
Conductor Diameter: 0.53 mm ± 0.01 mm
Insulation Material: High-Density Polyethylene (HDPE)
Insulation Diameter: 0.95 mm ± 0.1 mm
Color Code (4 Pairs): Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Separator Material: Polyethylene (PE), translucent 4.5 × 0.4 mm
Rip Cord Material: Polyester, 500D specification
Sheath Material: PVC
Sheath Diameter: 6.0 mm ± 0.3 mm
Sheath Color: White
Electrical Performance:
Max. DC Resistance (Single Conductor): 8.7 Ω/100 m
Min. Insulation Resistance: 5000 MΩ·km
Max. DC Resistance Unbalance: 2% (intra-pair), 4% (inter-pair)
Dielectric Strength: No breakdown at 1 KV DC for 1 minute
Transmission Characteristics:
Characteristic Impedance: 100 ± 15 Ω
Near End Crosstalk (NEXT): ≥39.3 dB/100 m @ 250 MHz
Max. Attenuation: 34.8 dB/100 m @ 250 MHz
Return Loss: ≥17.3 dB/100 m @ 250 MHz
Mechanical Properties:
Tensile Strength (Sheath): ≥13.5 MPa
Tensile Strength (Insulation): ≥16 MPa
Elongation at Break (Sheath): ≥150%
Elongation at Break (Insulation): ≥300%
Minimum Bending Radius:
8 times the outer cable diameter
Environmental Conditions:
Operating Temperature: –20°C to +60°C
Installation Temperature: 0°C to +50°C
Storage Temperature and Humidity: –10°C to +40°C, <60% RH
Packaging:
Cable Length: 305.0 m (1000.66 ft) ± 1.5 m
Packaging Dimensions: 412 mm × 412 mm × 215 mm
Net Weight: ≥10.5 kg
Gross Weight: ≥11.5 kg
The Dahua DHI-NVR5432-EI is a high-performance 32-channel network video recorder from the WizSense series. It supports up to 32MP IP cameras, offers advanced AI functions including face recognition, perimeter protection, and SMD Plus, and features a robust design suitable for various surveillance applications.Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps
Max. 384 Mbps incoming/recording/outgoing bandwidth
Supports IP cameras with a resolution up to 32 MP
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
Supports AcuPick with up to 32 channels
Supports N+M cluster and iSCSISpecifications:
Dimensions: 440 mm × 415.1 mm × 70 mm
Weight: 4.74 kg
Material: Metal casing
Color Options: Black
Power Requirements: 100–240 VAC, 50–60 Hz
Other Specs:
4 SATA ports, each supporting up to 20 TB
2 HDMI and 2 VGA video outputs
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
1 USB 2.0 port (front), 2 USB 3.0 ports (rear)
1 audio input (RCA), 2 audio outputs (RCA)
16 alarm inputs, 6 alarm outputs
Operating temperature: –10°C to +55°C
Operating humidity: 10%–93% (non-condensing)
Rack or desktop installation
Certifications: CE, FCC
The Dahua DHI-NVR4432-EI is a high-performance 32-channel network video recorder featuring advanced AI capabilities. It supports up to 4 hard drives and offers intelligent functions such as face recognition, perimeter protection, and Smart Motion Detection Plus (SMD Plus), making it ideal for comprehensive surveillance solutions.
Key Features:
Supports 32 IP camera channels
4 SATA ports supporting up to 16 TB each
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding formats
Maximum decoding capability: 16 × 1080p@30 fps
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Supports adaptive decoding
Connected to third-party network cameras
Security baseline 2.3
Specifications:
Dimensions: 440 mm × 415.6 mm × 76 mm
Weight: 4.25 kg (net), 6.35 kg (gross)
Material: Metal casing
Color Options: Black
Power Requirements: 100–240V AC, 50/60Hz
Other Specs:
Video Output: 1 HDMI (up to 4K), 1 VGA
Audio Input/Output: 1 RCA input, 1 RCA output
Alarm Input/Output: 16 inputs, 4 outputs
Network Interface: 2 RJ-45 ports (10/100/1000 Mbps)
USB Ports: 1 USB 2.0, 1 USB 3.0
Operating Conditions: –10°C to +55°C; 10%–93% RH
Certifications: CE, FCC
The Dahua DHI-NVR5232-16P-EI is a high-performance 32-channel network video recorder from the WizSense series. It features 16 PoE ports, supports up to 32MP IP cameras, and offers advanced AI functions including face recognition, perimeter protection, and SMD Plus.Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps
Max. 384 Mbps incoming/recording/outgoing bandwidth
Supports IP cameras with a resolution up to 32 MP
Supports AcuPick with up to 32 channels
Supports N+M cluster
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD PlusSpecifications:
Dimensions: 375.0 mm × 327.0 mm × 53.0 mm
Weight: 2.66 kg
Material: Metal casing
Color Options: Black
Power Requirements: 100–240 VAC, 47–63 Hz
Other Specs:
2 SATA ports, up to 16 TB for each HDD
16 PoE ports (IEEE802.3af/at), total output power ≤ 130W
1 HDMI and 1 VGA output
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
1 USB 2.0 port (front), 1 USB 3.0 port (rear)
Operating temperature: –10°C to +55°C
Operating humidity: 10%–93%
Rack or desktop installation
The Dahua DHI-NVR4232-16P-4KS2/L is a high-performance 32-channel network video recorder (NVR) with integrated 16-port PoE, designed for professional-grade surveillance systems. Supporting ultra-high-definition recording and advanced management features, this NVR is ideal for large-scale security applications.
Key Features:
Supports 32 IP camera channels
16 built-in PoE ports for direct camera connectivity
Supports H.265+/H.265/H.264+/H.264 video compression
Maximum incoming bandwidth of 200 Mbps
Supports up to 8MP resolution for preview and playback
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
Supports mainstream cameras of ONVIF and RTSP protocols
P2P remote surveillance, video play on mobile device
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
Supports remote configuration and management of IPC
Specifications:
Dimensions: 375 mm × 327.9 mm × 53 mm
Weight: Net: 2.6 kg; Gross: 3.8 kg
Material: Metal casing
Color Options: Black
Power Requirements: 100 V–240 V AC, 47–63 Hz, 3.5 A
Other Specs:
Storage: 2 SATA III ports, up to 10 TB for a single HDD
Video Output: 1 HDMI (up to 4K), 1 VGA
Audio Input/Output: 1 RCA input, 1 RCA output
USB Ports: 2 (1 front USB2.0; 1 back USB2.0)
Network Interface: 1 RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
PoE: 16 ports, total power 130 W, max. 25.5 W per port
Operating Conditions: –10 °C to +55 °C; 10%–93% RH
Certifications: CE, FCC
The Dahua DHI-NVR4232-4KS3 is a 32-channel network video recorder (NVR) designed for high-definition surveillance systems. Supporting up to 12MP resolution and equipped with advanced AI features, it ensures efficient video recording and intelligent analytics.
Key Features:
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats.
Maximum decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
Supports IP cameras with resolutions up to 12 MP.
AI by Recorder supports 2-channel SMD Plus.
AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis, and heat map.
Supports EPTZ and one-click arming and disarming.
Specifications:
Dimensions: 375 mm × 282.9 mm × 53 mm
Weight: 1.49 kg
Material: Metal casing
Color Options: Black
Power Requirements: 12V DC, 4A; Power consumption: <10W (without HDD)
Other Specs:
Operating Temperature: –10°C to +55°C
Operating Humidity: 10%–93% RH
Installation: Rack or desktop
Video Output: 1 HDMI (up to 4K), 1 VGA (up to 1080p)
Audio Input/Output: 1-channel RCA each
Alarm Input/Output: 4 inputs / 2 outputs
Disk Interface: 2 SATA ports, up to 20TB total capacity
Network Interface: 1 RJ-45 (10/100/1000 Mbps)
USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)
Supported Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Mobile Access: iOS, Android
Browser Support: Chrome, IE, Safari, Edge, Firefox
Interoperability: ONVIF 22.12 (Profile T/S/G), CGI, SDK
The Dahua NVR4232-4KS2/L is a 32-channel 4K Lite Network Video Recorder designed for high-definition surveillance applications. It supports up to 8MP resolution recording, H.265 compression, and AI features like face detection and perimeter protection.
Key Features:
Supports up to 32 IP camera inputs
Video compression: H.264, H.265, Smart H.264+, Smart H.265+
Maximum decoding capability: 8 × 1080p@30 fps
Supports ONVIF and RTSP protocols
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
P2P remote surveillance via mobile devices
Simultaneous HDMI (up to 4K) and VGA video output
Specifications:
Dimensions: 375.0 mm × 282.9 mm × 53.0 mm
Weight: 1.5 kg (net), 2.6 kg (gross)
Material: Metal casing
Color Options: Black
Power Requirements: 12V DC, 4A; Power consumption: <5.6W (without HDD)
Other Specs:
Operating Temperature: –10°C to +55°C
Operating Humidity: 10%–93% RH
Installation: Desktop/Rack mount
Video Output: 1 HDMI (up to 4K), 1 VGA
Audio Input/Output: 1-channel RCA each
Alarm Input/Output: 4 inputs / 2 outputs
Disk Interface: 2 SATA III ports, up to 10TB per HDD
Network Interface: 1 RJ-45 (10/100/1000 Mbps)
USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)
Supported Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Mobile Access: iOS, Android
Browser Support: Chrome, IE, Safari, Edge, Firefox
Interoperability: ONVIF (Profile T/S/G), CGI, SDK
The Dahua DH-XVR5232AN-I3 is a 32-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP video inputs. It features advanced AI capabilities, including perimeter protection, face recognition, and Smart Motion Detection Plus (SMD Plus). With support for up to 48 IP channels and 5MP resolution, it offers comprehensive surveillance solutions.
Key Features:
Supports 32 analog channels and up to 48 IP channels (each up to 6MP)
H.265+/H.265 dual-stream video compression
AI functions: 32-channel SMD Plus, 8-channel perimeter protection, 2-channel face recognition
QuickPick 2.0 for efficient target retrieval
IoT and POS functionalities
Specifications:
Dimensions: 375 mm × 289 mm × 53 mm
Weight: 1.98 kg
Material: Metal casing
Color Options: Black
Power Requirements: 12 VDC, <17W (without HDD)
Other Specs:
Video Input: 32 BNC ports
Audio Input/Output: 1/1 RCA
Video Output: 1 HDMI, 1 VGA
Storage: 2 SATA ports, up to 16TB per HDD
USB Ports: 2 (1 front USB 2.0; 1 rear USB 3.0)
Network Interface: 1 RJ-45, 10/100/1000 Mbps Ethernet port
Operating Conditions: –10°C to +55°C; 0%–90% RH
Certifications: CE, FCC
The Dahua DHI-NVR4832-EI is a 32-channel network video recorder from the WizSense series, designed to deliver advanced AI-driven surveillance capabilities. It supports high-resolution video recording up to 16MP, intelligent analytics like face recognition and perimeter protection, and offers robust storage options with 8 SATA ports. Its compatibility with third-party cameras and adherence to ONVIF standards make it a versatile choice for comprehensive security solutions.
Key Features:
Supports up to 32 IP camera inputs
Maximum decoding capability: 16 × 1080p@30 fps
Video compression formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases with 20,000 images; 4-channel SMD Plus
AI by Camera: Face detection and recognition, perimeter protection, SMD Plus, ANPR, people counting, stereo analysis, heat map
Supports adaptive decoding
Security baseline 2.3
Compatible with third-party network cameras
Dual HDMI and VGA video outputs
Supports up to 8 SATA HDDs, each up to 16 TB
Alarm inputs/outputs: 16/4 channels
Operating system: Embedded Linux
Specifications:
Dimensions: 2U chassis
Material: Metal enclosure
Color Options: Black
Power Requirements: 100–240V AC, 50/60Hz
Other Specs:
Network Bandwidth: 256 Mbps (AI disabled), 180 Mbps (AI enabled)
Video Output Resolutions: HDMI: up to 3840 × 2160; VGA: up to 1920 × 1080
Audio Input/Output: 1-channel RCA input, 1-channel RCA output
Alarm Input/Output: 16 channels input, 4 channels output
USB Ports: 2 × USB 2.0, 1 × USB 3.0
Ethernet Ports: 2 × RJ-45 (10/100/1000 Mbps)
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90% RH
The Dahua DHI-NVR1104HS-P-S3-H is a compact 4-channel network video recorder featuring Power over Ethernet (PoE) support, Smart H.265+/H.264+ video compression, and a user-friendly interface. Designed for small to medium-sized surveillance setups, it offers efficient storage, remote monitoring, and seamless integration with ONVIF-compatible cameras.
Key Features:
4-channel IP camera input
4 PoE ports with a total power budget of 36W
Supports up to 8MP resolution
Smart H.265+/H.264+ video compression
HDMI and VGA simultaneous video output (max 1080p)
Remote access via mobile app (iDMSS/gDMSS)
ONVIF and RTSP protocol support
Specifications:
Dimensions: 260mm × 225mm × 47.6mm
Weight: 0.84 kg
Material: Metal
Color Options: Black
Power Requirements: DC 48V, 1.25A
Other Specs:
Video Input: 4 IP channels
PoE Ports: 4 (10/100 Mbps)
Maximum Decoding Capability: 1-ch@8MP (30fps), 4-ch@1080p (30fps)
Storage: 1 SATA port, up to 8TB
Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
Mobile Access: iDMSS (iOS), gDMSS (Android)
USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)
Operating Temperature: -10°C to +45°C
Storage Temperature: 0°C to +40°C
Operating Humidity: 10%~93%
Storage Humidity: 30%~85%
The Dahua XVR1B04H-I is a 4-channel Penta-brid digital video recorder from the Cooper-I Series, supporting HDCVI, AHD, TVI, CVBS, and IP video inputs. It features AI-powered functions like SMD Plus for accurate human and vehicle detection, and AI Coding for efficient storage. With support for up to 6 IP camera inputs and Smart H.265+ compression, it offers a versatile and cost-effective surveillance solution.
Key Features:
Supports HDCVI, AHD, TVI, CVBS, and IP video inputs
Up to 6-channel IP camera input, each up to 6MP
Smart H.265+/H.265 dual-stream video compression
4-channel SMD Plus for accurate human and vehicle detection
AI Coding for optimized storage and bandwidth usage
Supports HDMI and VGA simultaneous video output
One SATA port, up to 6TB capacity
Supports mobile remote monitoring via iOS and Android
Specifications:
Dimensions: 260 mm × 236 mm × 48 mm
Weight: 1.0 kg
Material: Metal chassis
Color Options: Black
Power Requirements: DC 12V, 1.5A
Other Specs:
Video Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression: G.711a, G.711u, PCM
Video Output: 1 HDMI (up to 1080p), 1 VGA
Audio Input/Output: 1-channel RCA input, 1-channel RCA output
Two-way Talk: Supported (shares audio input with the first channel)
HDD Interface: 1 SATA port, up to 6TB capacity
USB Ports: 2 USB 2.0 ports
Network Interface: 1 RJ-45 port (10/100 Mbps)
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90% RH (non-condensing)
Certifications: CE, FCC
Shop the latest smart home accessories in Jordan, our collection at Xmart is your trusted smart home devices store for the best smart home accessories, including smart lighting, security systems, and energy-efficient solutions, all designed to enhance your living space with convenience and innovation.
