Description

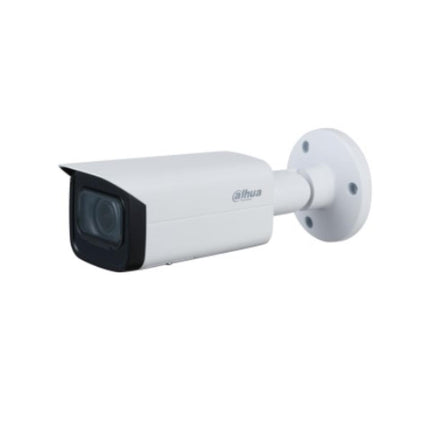

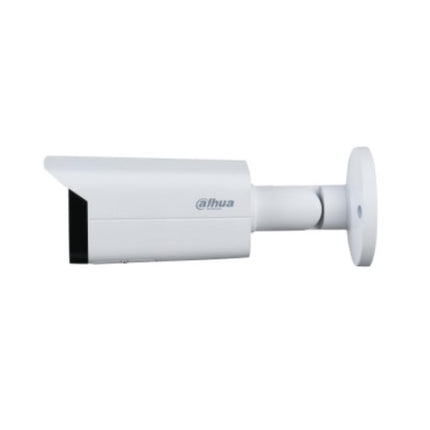

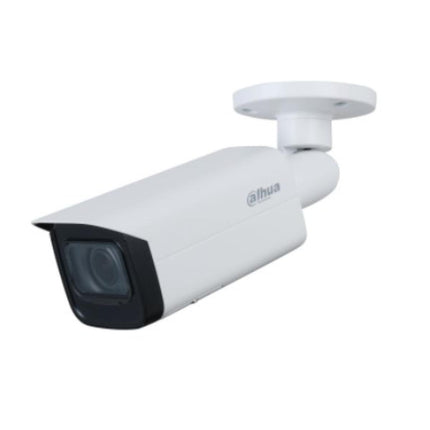

The Dahua DH-IPC-HFW2231T-VFS is a 2MP bullet network camera featuring a 1/2.8" CMOS sensor, motorized vari-focal lens, and built-in IR LEDs with a range of up to 50 meters. It supports H.265/H.264 dual-stream encoding and is designed for both indoor and outdoor surveillance applications.

Key Features:

  • 2MP 1/2.8" CMOS image sensor

  • Motorized vari-focal lens (2.7–13.5mm)

  • IR illumination up to 50 meters

  • H.265/H.264 dual-stream encoding

  • IP67 weatherproof rating

  • Supports micro SD card up to 256GB

  • Wide Dynamic Range (WDR) 120dB

  • 3D Noise Reduction (3DNR)

  • Day/Night (ICR), AWB, AGC, BLC

Specifications:

  • Dimensions: 244.1mm × 79mm × 75.9mm (9.61” × 3.11” × 2.99”)

  • Weight: 0.815kg (1.80lb)

  • Material: Metal

  • Color Options: White

  • Power Requirements: 12V DC or PoE (IEEE 802.3af)

  • Other Specs:

    • Operating Temperature: -30°C to +60°C

    • Storage Temperature: -40°C to +60°C

    • Operating Humidity: ≤95% RH

    • Ingress Protection: IP67

    • Vandal Resistance: IK10 (optional)

    • Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

    • Smart Codec: Smart H.265+; Smart H.264+

    • Video Frame Rate:

      • Main stream: 1920 × 1080@1–25/30 fps

      • Sub stream: 704 × 576@1–25 fps; 704 × 480@1–30 fps

    • Lens Mount: Board-in

    • Max. Aperture: F1.5

    • Field of View:

      • Horizontal: 108°–28°

      • Vertical: 57°–16°

      • Diagonal: 129°–33°

    • Min. Illumination:

      • 0.005 Lux@F1.5 (Color, 30 IRE)

      • 0.0005 Lux@F1.5 (B/W, 30 IRE)

      • 0 Lux (IR on)

    • IR Distance: Up to 50 meters

    • Storage: Micro SD card (up to 256GB), NAS, FTP, SFTP

    • Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

    • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

    • Smart Features: Motion detection, privacy masking, video tampering, scene change detection, intrusion detection, tripwire detection

2MP Entry IR Vari-focal Bullet Network Camera

Product form

The Dahua DH-IPC-HFW2231T-VFS is a 2MP bullet network camera featuring a 1/2.8" CMOS sensor, motorized vari-focal lens, and built-in IR... Read more

SKU: DH-IPC-HFW2231T-VFS

70.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua DH-IPC-HFW2231T-VFS is a 2MP bullet network camera featuring a 1/2.8" CMOS sensor, motorized vari-focal lens, and built-in IR LEDs with a range of up to 50 meters. It supports H.265/H.264 dual-stream encoding and is designed for both indoor and outdoor surveillance applications.

    Key Features:

    • 2MP 1/2.8" CMOS image sensor

    • Motorized vari-focal lens (2.7–13.5mm)

    • IR illumination up to 50 meters

    • H.265/H.264 dual-stream encoding

    • IP67 weatherproof rating

    • Supports micro SD card up to 256GB

    • Wide Dynamic Range (WDR) 120dB

    • 3D Noise Reduction (3DNR)

    • Day/Night (ICR), AWB, AGC, BLC

    Specifications:

    • Dimensions: 244.1mm × 79mm × 75.9mm (9.61” × 3.11” × 2.99”)

    • Weight: 0.815kg (1.80lb)

    • Material: Metal

    • Color Options: White

    • Power Requirements: 12V DC or PoE (IEEE 802.3af)

    • Other Specs:

      • Operating Temperature: -30°C to +60°C

      • Storage Temperature: -40°C to +60°C

      • Operating Humidity: ≤95% RH

      • Ingress Protection: IP67

      • Vandal Resistance: IK10 (optional)

      • Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

      • Smart Codec: Smart H.265+; Smart H.264+

      • Video Frame Rate:

        • Main stream: 1920 × 1080@1–25/30 fps

        • Sub stream: 704 × 576@1–25 fps; 704 × 480@1–30 fps

      • Lens Mount: Board-in

      • Max. Aperture: F1.5

      • Field of View:

        • Horizontal: 108°–28°

        • Vertical: 57°–16°

        • Diagonal: 129°–33°

      • Min. Illumination:

        • 0.005 Lux@F1.5 (Color, 30 IRE)

        • 0.0005 Lux@F1.5 (B/W, 30 IRE)

        • 0 Lux (IR on)

      • IR Distance: Up to 50 meters

      • Storage: Micro SD card (up to 256GB), NAS, FTP, SFTP

      • Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

      • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

      • Smart Features: Motion detection, privacy masking, video tampering, scene change detection, intrusion detection, tripwire detection
