Description

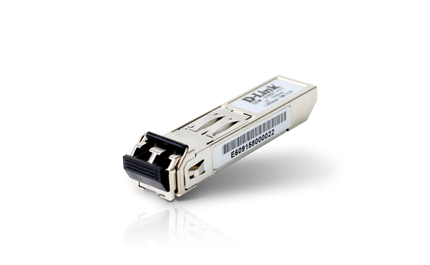

The D-Link DEM-310GT is a high-performance 1310 nm single-mode SFP (Small Form-Factor Pluggable) transceiver. It supports full-duplex Gigabit speeds over single-mode fiber for distances up to 10 km, making it ideal for long-distance network connections.
Key Features:
-
Compliant with IEEE 802.3z 1000BASE-LX standard
-
Supports full-duplex operation
-
Duplex LC connector for fiber connection
-
Hot-pluggable for easy installation
-
Metal housing reduces electromagnetic interference (EMI)
-
Class 1 laser product compliant with EN 60825-1
-
MSA and RoHS compliant
Specifications:
-
Dimensions: Approximately 55.9 mm x 13.7 mm x 8.5 mm
-
Material: Metal enclosure
-
Color Options: Metallic silver
-
Power Requirements: 3.3 V
-
Other Specs:
-
Wavelength: 1310 nm
-
Fiber Type: 9 µm single-mode fiber
-
Maximum Distance: Up to 10 km
-
Transmit Power Range: -3 to -9 dBm
-
Receive Power Range: -3 to -21 dBm
-
Sensitivity: -21 dBm
-
Operating Temperature: 0°C to 70°C
-
Storage Temperature: -40°C to 85°C
-
Operating Humidity: 0% to 85%
-
Storage Humidity: 0% to 85%
