Description

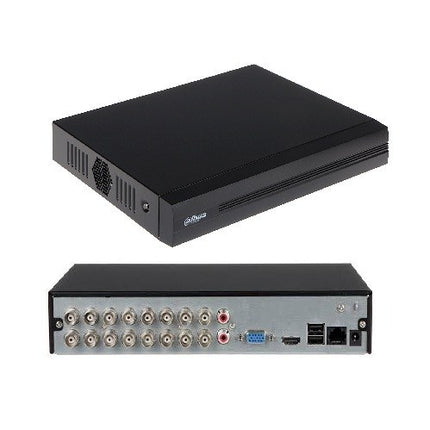

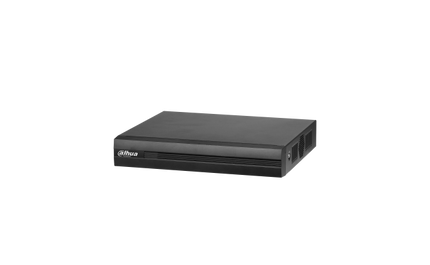

The Dahua DH-XVR1B16-I is a 16-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP camera inputs. It features AI Coding, Smart H.265+ compression, and SMD Plus for efficient and intelligent surveillance.

Key Features:

  • Supports HDCVI, AHD, TVI, CVBS, and IP video inputs

  • H.265+/H.265 dual-stream video compression

  • Full-channel AI Coding

  • Up to 18 IP camera inputs, each up to 6MP

  • Max 64 Mbps incoming bandwidth

  • 8-channel SMD Plus for analog channels

  • Auto-detection of front-camera signals

Specifications:

  • Dimensions: 260 mm × 231.4 mm × 47.6 mm

  • Weight: 0.89 kg

  • Material: Metal

  • Color Options: Black

  • Power Requirements: 12V DC, 2A

  • Other Specs:

    • Analog Camera Input: 16 channels, BNC

    • IP Camera Input: 16+2 channels, up to 6MP per channel

    • Video Output: 1 HDMI, 1 VGA

    • Audio In/Out: 1/1 RCA

    • Recording Resolution: Up to 6MP

    • Storage: 1 SATA port, up to 6TB

    • Network Interface: 1 RJ-45 port (10/100 Mbps)

    • USB Ports: 2 USB 2.0

    • Operating Temperature: -10°C to +55°C

    • Operating Humidity: 0%–90%

16 Channel Penta-brid 1080N/720p Compact 1U 1HDD WizSense Digital Video Recorder

Product form

The Dahua DH-XVR1B16-I is a 16-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP camera inputs. It... Read more

SKU: XVR1B16-I

77.000 JOD

    Description

    The Dahua DH-XVR1B16-I is a 16-channel Penta-brid digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP camera inputs. It features AI Coding, Smart H.265+ compression, and SMD Plus for efficient and intelligent surveillance.

    Key Features:

    • Supports HDCVI, AHD, TVI, CVBS, and IP video inputs

    • H.265+/H.265 dual-stream video compression

    • Full-channel AI Coding

    • Up to 18 IP camera inputs, each up to 6MP

    • Max 64 Mbps incoming bandwidth

    • 8-channel SMD Plus for analog channels

    • Auto-detection of front-camera signals

    Specifications:

    • Dimensions: 260 mm × 231.4 mm × 47.6 mm

    • Weight: 0.89 kg

    • Material: Metal

    • Color Options: Black

    • Power Requirements: 12V DC, 2A

    • Other Specs:

      • Analog Camera Input: 16 channels, BNC

      • IP Camera Input: 16+2 channels, up to 6MP per channel

      • Video Output: 1 HDMI, 1 VGA

      • Audio In/Out: 1/1 RCA

      • Recording Resolution: Up to 6MP

      • Storage: 1 SATA port, up to 6TB

      • Network Interface: 1 RJ-45 port (10/100 Mbps)

      • USB Ports: 2 USB 2.0

      • Operating Temperature: -10°C to +55°C

      • Operating Humidity: 0%–90%
