Description

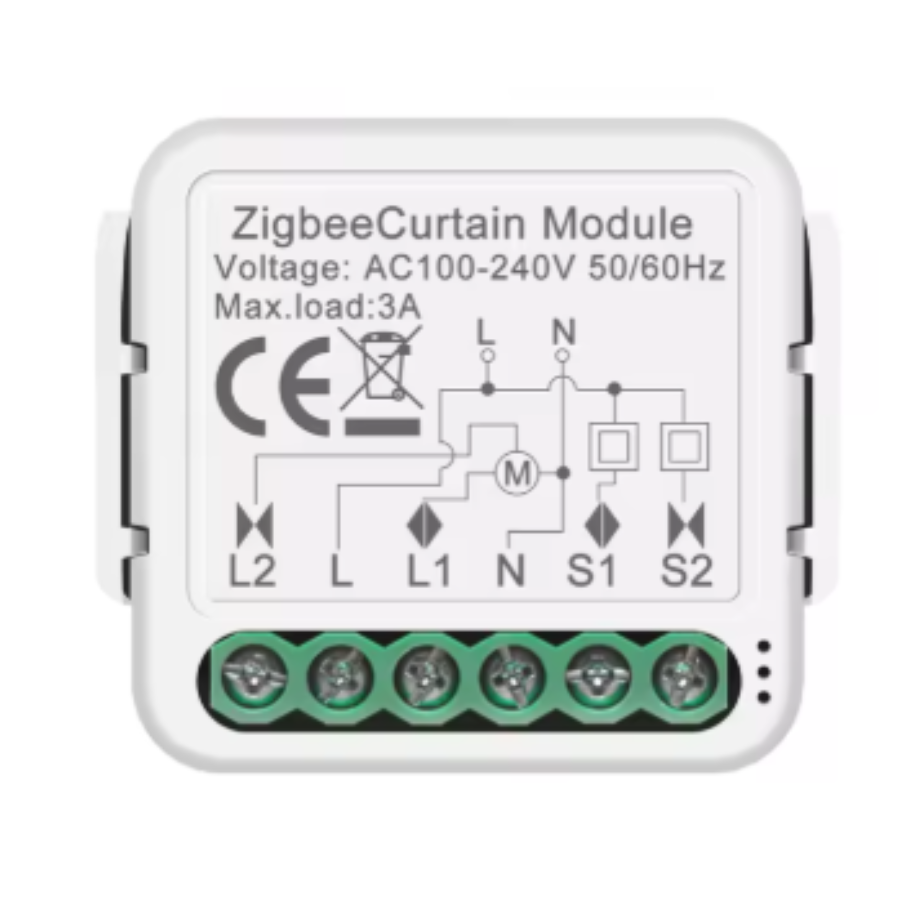

The ZigBee Smart Curtain Switch Module transforms traditional motorized roller shutters, blinds, and curtains into fully automated smart home devices. Designed with an ultra-compact body that fits neatly behind your existing wall switch plates, it offers effortless app control, voice assistant integration, RF remote compatibility, and precise opening angle customization.
Key Features
- Compact mini design installs easily inside standard mounting boxes behind traditional switches
- Available in 1-channel and 2-channel options to control single or dual motorized curtains and shutters
- Multiple wireless protocol options including ZigBee 3.0, Wi-Fi, and RF433 remote integration
- Full remote management via TuyaSmart and Smart Life applications from anywhere
- Hands-free voice control compatibility with Amazon Alexa and Google Assistant
- Customizable shutter slat rotation from 0 to 180 degrees for precise light control
- Quick 0 to 10 minute calibration feature easily adapts to curtains of varying lengths
- Flexible timer scheduling and countdown functions to automate daily routines and save energy
Technical Specifications
| Brand |
ZigBee |
| Product Type |
Smart Curtain & Roller Shutter Switch Module |
| Channel Options |
1 Channel / 2 Channels |
| Wireless Protocols |
ZigBee 3.0 / Wi-Fi (2.4GHz) / RF433MHz |
| Working Voltage |
AC 100-240V ~ 50/60Hz |
| Working Current |
3A |
| Supported Applications |
TuyaSmart / Smart Life |
| Voice Control Integration |
Amazon Alexa / Google Assistant |
| Dimensions |
39.2 x 39.2 x 21 mm |
| Certifications |
CE, RoHS |
