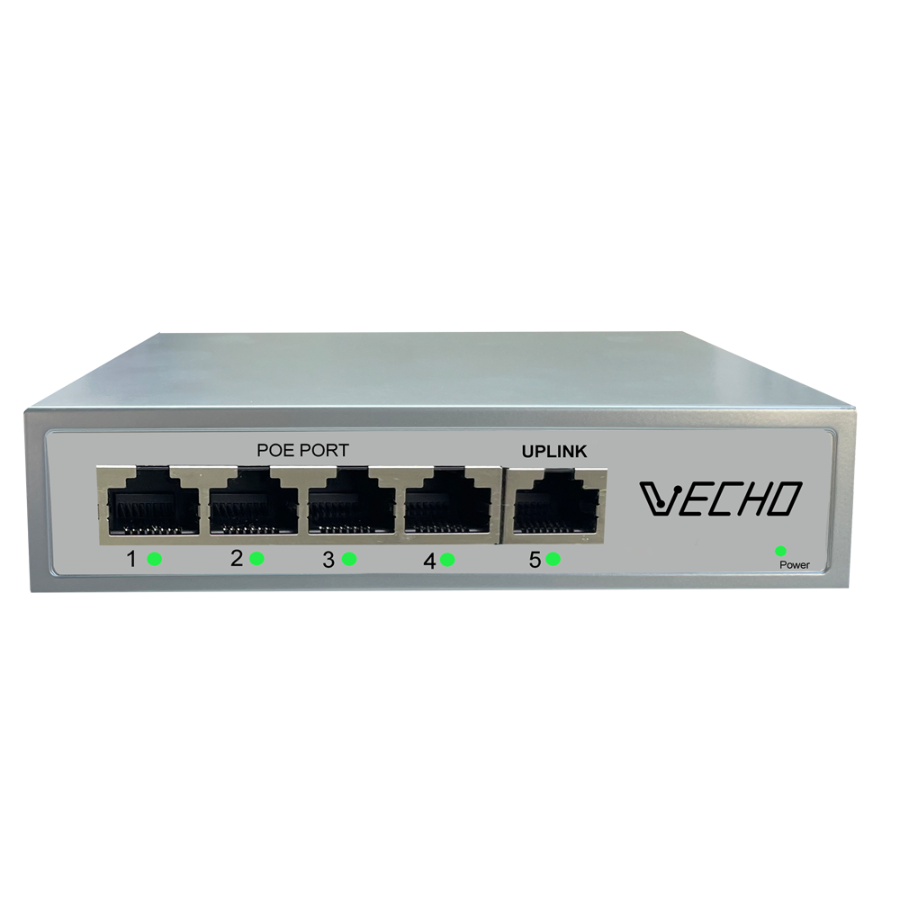

Enhance your local network infrastructure and power delivery with the Vecho VEC-M41A-65 4-Port Gigabit PoE Switch. Designed to deliver high-performance data switching and reliable Power over Ethernet for IP cameras, access points, and VoIP devices, this unmanaged switch combines fast Gigabit speeds with durable internal protection mechanisms.
Featuring four 10/100/1000 Mbps PoE ports and one dedicated 1000 Mbps uplink port, the VEC-M41A-65 delivers up to 30W per port with a total power budget of 65W. With support for IEEE 802.3af/at standards, MDI/MDIX auto-flip, and non-blocking packet forwarding, it ensures smooth transmission distances up to 150 meters without data loss.
Built for stability in demanding operating environments, this switch includes 4KV lightning surge protection and short-circuit protection. Its compact metal enclosure, low-power design, and automatic MAC address learning make it an ideal choice for surveillance setups and small office networks.
Key Features
- Gigabit Speed Ports: Equipped with 4× 1000 Mbps PoE ports and 1× 1000 Mbps Gigabit uplink port.
- IEEE 802.3af/at PoE Support: Delivers up to 30W per single port with a 65W total power capacity.
- 150m Transmission Distance: Supports long-range power and data transmission for security setups.
- 4KV Surge & Lightning Protection: Built-in protection against electrical surges and short circuits.
- Auto MDI/MDIX & Negotiation: All ports support automatic cable recognition and speed adjustment.
- Flow Control Mechanism: Supports IEEE 802.3x full-duplex flow control and half-duplex backpressure.
- Compact & Sturdy Build: Metal enclosure with clear LED indicators for port status and PoE budget.
Technical Specifications
| Brand |
Vecho |
| Model Code |
VEC-M41A-65 |
| Product Type |
4-Port Gigabit PoE Switch |
| Network Ports |
4× 10/100/1000 Mbps PoE Ports + 1× 1000 Mbps Uplink Port |
| PoE Standard & Budget |
IEEE 802.3af/at (30W Single Port / 65W Max Total Power) |
| Switching Capacity |
1 Gbps |
| Transmission Distance |
Up to 150 Meters |
| Circuit Protection |
4KV Lightning Protection & Short-Circuit Protection |
| Dimensions |
150 × 145 × 45 mm |
| Power Supply |
AC 100–240V, 50/60Hz |
