Description

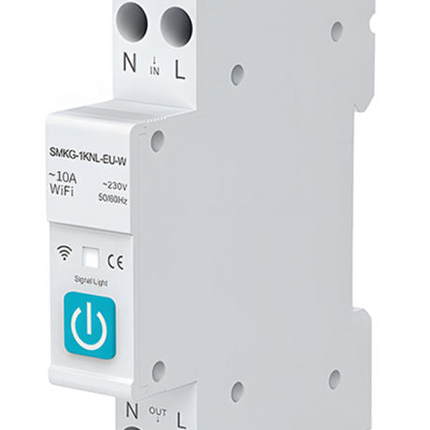

The TUYA WiFi Smart Circuit Breaker with Metering is a DIN rail-mounted device designed for smart home applications. It allows remote control of electrical circuits via the TUYA Smart or Smart Life app and provides real-time energy monitoring.
Key Features:
-
Remote on/off control via TUYA Smart / Smart Life app
-
Real-time energy consumption monitoring
-
Voice control compatibility with Amazon Alexa & Google Assistant
-
Overload and short circuit protection
-
Timer and scheduling functions
-
Direct 2.4GHz WiFi connectivity; no hub required
-
Compact design suitable for standard DIN rail mounting
Specifications:
-
Dimensions: Approximately 85 × 36 × 66 mm
-
Weight: Approximately 150 g
-
Material: Flame-retardant ABS plastic
-
Color Options: White
-
Power Requirements: AC 90–280V, 50/60Hz
-
Other Specifications:
-
Rated Current: 10A
-
Mounting: 35mm DIN rail
-
WiFi Frequency: 2.4GHz
-
Operating Temperature: -20°C to 60°C
-
Storage Temperature: -40°C to 85°C
-
Humidity: 5% to 95% RH, non-condensing
