Description

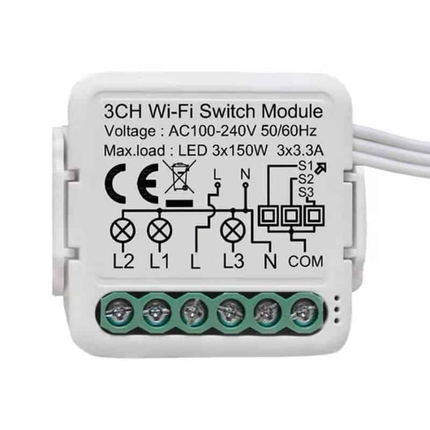

The Tuya Mini 3-Channel Smart Switch Module (MINI-W1-3CH) transforms traditional triple light switches and electrical fixtures into intelligent automated devices. Its ultra-compact design fits neatly inside standard wall junction boxes behind existing switch plates, providing independent smart control over three separate lighting channels without altering your home decor.
Key Features
- Controls up to three independent electrical channels or light fixtures from a single module
- Ultra-compact mini design installs easily inside hidden wall junction boxes behind original switch plates
- Operates seamlessly alongside traditional wall switches for dual manual and smart operation
- Available in Wi-Fi 2.4GHz or Zigbee 3.0 protocol options for flexible smart home networking
- Provides total remote management via Tuya Smart and Smart Life mobile applications
- Compatible with voice control assistants for hands-free lighting management
- Supports custom scheduling, countdown timers, and automated smart scenes
- Supports total current load up to 10A and up to 150W per channel for LED lighting
Technical Specifications
| Model |
MINI-W1-3CH |
| Product Type |
3-Channel Mini Smart Switch Module |
| Number of Channels |
3 Independent Channels (3 Gang) |
| Working Voltage |
AC 100-240V ~ 50/60Hz |
| Max Load Capacity |
10A Total (Max ~150W per channel for LED) |
| Wireless Connection |
Wi-Fi 2.4GHz / Zigbee 3.0 |
| Supported Applications |
Tuya Smart / Smart Life |
| Installation |
In-Wall Cassette / Junction Box |
