Description

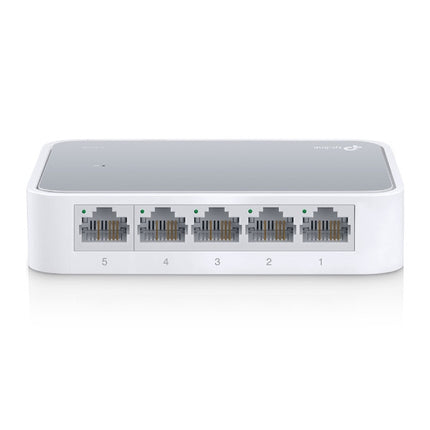

The TP-Link TL-SF1005D is a compact and reliable 5-port Fast Ethernet desktop switch designed to expand your wired network easily. With its plug-and-play design, no configuration is needed, making it an ideal solution for home and small office networks. The switch features a fanless, silent operation and a compact plastic casing for convenient desktop placement or wall mounting.
Key Features:
-
5 Fast Ethernet Ports: Five 10/100 Mbps RJ45 ports with auto-negotiation and auto-MDI/MDIX support.
-
Plug and Play: No configuration required for hassle-free installation.
-
Energy-Efficient: Incorporates energy-saving technology that adjusts power consumption according to cable length and link status.
-
Durable Design: Compact plastic casing suitable for desktop or wall mounting.
Specifications:
-
Model: TL-SF1005D
-
Standards and Protocols: IEEE 802.3, 802.3u, 802.3x
-
Interface: 5 × 10/100 Mbps RJ45 ports
-
MAC Address Table: 1K entries
-
Switching Capacity: 1 Gbps
-
Forwarding Rate: 0.74 Mpps
-
Packet Buffer Memory: 512 KB
-
Power Supply: External power adapter (9V DC, 0.6A)
-
Power Consumption: Maximum 2.8 W
-
Dimensions (W × D × H): Approx. 113 × 70 × 25 mm
-
Weight: Approximately 0.15 kg
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
-
Operating Humidity: 10% to 90% RH non-condensing
-
Storage Humidity: 5% to 90% RH non-condensing
-
Certifications: CE, FCC, RoHS
