Description

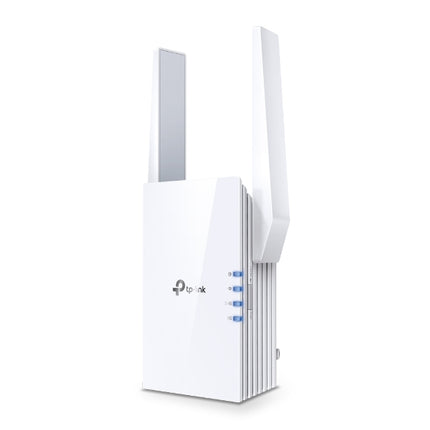

The TP-Link RE705X is a high-performance Wi-Fi 6 range extender designed to eliminate dead zones and enhance your wireless network's coverage. With dual-band speeds up to 3 Gbps, it supports seamless 4K streaming, gaming, and high-speed downloads. Its EasyMesh compatibility ensures a unified network experience, and the built-in Gigabit Ethernet port allows for flexible wired connections. The RE705X also functions as an access point, providing versatile networking solutions for your home or office.
Key Features
-
Dual-Band Wi-Fi 6: Delivers combined speeds of up to 3000 Mbps (574 Mbps on 2.4GHz and 2402 Mbps on 5GHz) for faster and more reliable connections.
-
EasyMesh-Compatible: Integrates seamlessly with TP-Link EasyMesh routers to create a unified and expansive mesh network.
-
Access Point Mode: Transforms a wired internet connection into a dual-band wireless access point.
-
Gigabit Ethernet Port: Provides high-speed wired connectivity for devices like smart TVs, gaming consoles, and PCs.
-
TP-Link Tether App: Simplifies setup and network management via a user-friendly mobile application.
-
Advanced Security: Supports the latest WPA3 encryption standard for enhanced network protection.
Specifications
-
Wireless
Standards: IEEE 802.11a/n/ac/ax (5GHz), IEEE 802.11b/g/n/ax (2.4GHz)
-Frequency: 2.4GHz and 5GHz
-Signal Rate: 574 Mbps on 2.4GHz, 2402 Mbps on 5GHz
-
Reception Sensitivity:
-5GHz:
-11a 6Mbps: -97dBm
-11a 54Mbps: -78dBm
-11ax HE20 MCS0: -97dBm
-11ax HE20 MCS11: -66dBm
-11ax HE40 MCS0: -94dBm
-11ax HE40 MCS11: -62dBm
-11ax HE80 MCS0: -91dBm
-11ax HE80 MCS11: -61dBm
-11ax HE160 MCS11: -59dBm
-
2.4GHz:
-11g 6Mbps: -96dBm
-11g 54Mbps: -78dBm
-11ax HE20 MCS0: -95dBm
-11ax HE20 MCS11: -66dBm
-11ax HE40 MCS0: -93dBm
-11ax HE40 MCS11: -62dBm
-
Transmit Power: CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm
-
Wireless Security: WEP, WPA, WPA2, WPA3
-
Mesh Technology: EasyMesh-Compatible
-
Hardware
-Ports: 1× Gigabit Ethernet Port
-Buttons: WPS Button, Reset Button
-Power Supply: 100-240V~50/60Hz
-Power Consumption: 12.6W
-Antenna: 2 External Antennas
-Dimensions: 97 × 46 × 158 mm
-Weight: Approximately 0.46 kg
-
Software Features
-Working Modes: Range Extender / Access Point
-Wireless Functions: Enable/Disable Wireless Radio, DFS (requires latest firmware and hardware version), Access Control, LED Control, Power Schedule, Wi-Fi Coverage Adjustment
-Management: TP-Link Tether App, Web Interface
