Description

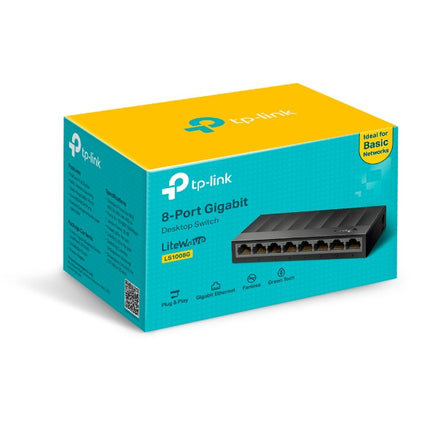

The TP-Link LS1008G is an 8-port Gigabit desktop switch designed to expand your wired network efficiently. With its plug-and-play functionality, it requires no configuration, making it ideal for home offices, small businesses, and workgroups. Its compact design ensures easy placement on a desk or wall.
Key Features:
-
8 Gigabit Ports: Eight 10/100/1000 Mbps RJ45 ports support auto-negotiation and auto-MDI/MDIX.
-
High Performance: Non-blocking switching architecture with 16 Gbps switching capacity ensures smooth data transfer.
-
Energy-Efficient: Innovative energy-saving technology reduces power consumption by up to 84%.
-
Quality of Service (QoS): Supports 802.1p/DSCP QoS for smooth latency-sensitive traffic.
-
Durable Design: Sturdy plastic casing suitable for desktop or wall-mounting.
-
Plug and Play: No configuration required; supports auto-negotiation and auto-MDI/MDIX.
Specifications:
-
Model: LS1008G
-
Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x
-
Interface: 8 × 10/100/1000 Mbps RJ45 Ports
-
MAC Address Table: 4K
-
Switching Capacity: 16 Gbps
-
Forwarding Rate: 11.9 Mpps
-
Packet Buffer Memory: 1.5 Mb
-
Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
-
Power Consumption: Maximum: 3.9W
-
Dimensions (W × D × H): 127 × 66.5 × 23 mm
-
Weight: Approximately 0.35 kg
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
-
Operating Humidity: 10% to 90% RH non-condensing
-
Storage Humidity: 5% to 90% RH non-condensing
-
Certifications: CE, FCC, RoHS
