Description

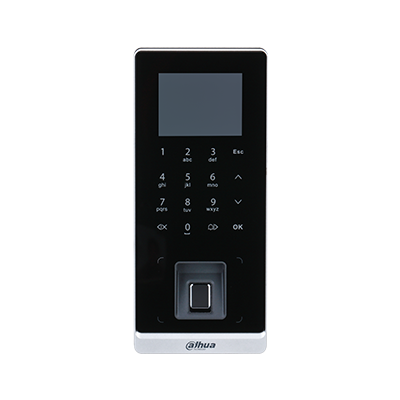

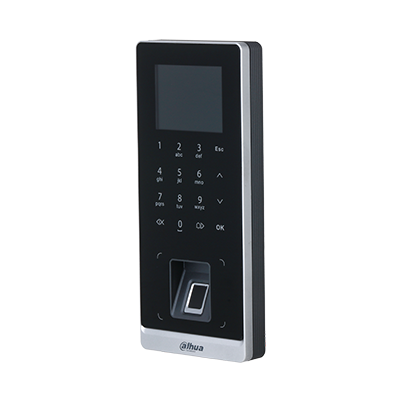

The Dahua ASI2212H-DW is a standalone biometric access control terminal designed for secure and efficient access management. It features a 2.4" LCD screen, capacitive fingerprint sensor, and supports multiple authentication methods, including card, password, and fingerprint. With a capacity of up to 30,000 users and 3,000 fingerprints, it is suitable for various applications requiring robust access control.
Key Features:
-
2.4" LCD screen with 240 × 320 resolution
-
Capacitive fingerprint sensor with <1s recognition time
-
Supports card (IC/ID), password, fingerprint, and combinations
-
User capacity: 30,000; Fingerprint capacity: 3,000; Card capacity: 30,000; Password capacity: 30,000
-
Record capacity: 150,000 unlock records
-
Supports TCP/IP, Wi-Fi, RS-485, RS-232, Wiegand, and USB communication
-
IP65-rated for indoor and outdoor use
-
Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and more
Specifications:
-
Dimensions: 183 mm × 80 mm × 25.5 mm
-
Weight: 264 g
-
Material: PC + ABS plastic casing
-
Color Options: Black
-
Power Requirements: 12 V DC, 1 A; Power consumption ≤ 12 W
-
Other Specs:
-
Operating Temperature: –30 °C to +65 °C
-
Operating Humidity: 10%–95% RH (non-condensing)
-
Installation: Surface mount
-
Certifications: CE, FCC
