Universal wiring compatibility with Zigbee 3.0 connectivity, Detach Relay Mode, and Zigbee router functionality.

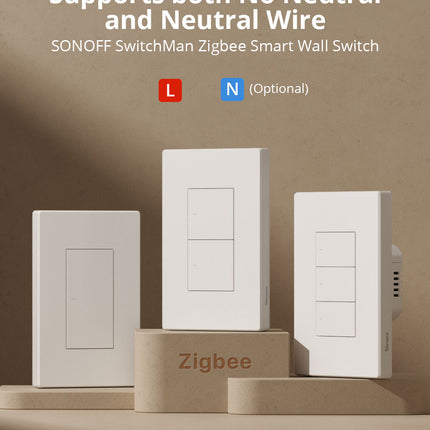

The SONOFF SwitchMan Zigbee Smart Wall Switch ZBM5 offers universal wiring compatibility supporting both neutral-required and no-neutral wiring modes. It seamlessly integrates with Sonoff Zigbee gateways and Home Assistant via ZBDongle for a stable smart home network. This smart switch features Detach Relay Mode, allowing remote control through smart scenes even when the physical switch is off. Additionally, it functions as a Zigbee router in Neutral-Required Mode, enhancing signal coverage and device communication for a reliable Zigbee mesh network. With timer and scheduling capabilities, you can automate appliances to suit your lifestyle.
Key Features
-

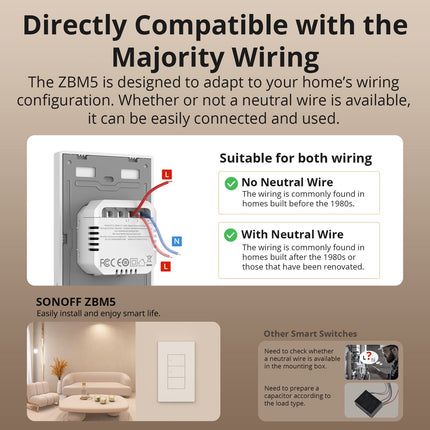

Universal Wiring Compatibility
-
Zigbee 3.0 Connectivity
-
Detach Relay Mode
-
Zigbee Router
-
Timer & Schedule
Technical Specifications
| Specification |
Value |
| Model |
ZBM5-1C-120W/ZBM5-2C-120W/ZBM5-3C-120W |
| ZBM5 Type |
120 Type |
| Color |
White |
| Rating |
3C: 100-240V~50/60Hz 10A/gang, Total 10A Max Resistive load |
| LED |
3C: 400W@240V/gang, 200W@100V/gang, Total 400W@240V, 200W@100V |
| Min. load |
3W (No Neutral Required) |
| Wireless connection |
Zigbee 3.0 |
| Casing materials |
PC+CRS |
| Number of gangs |
1-gang/2-gang/3-gang |
| Operating temperature |
10℃~40℃ |
| Dimension |
120x74x39.4mm |
Get this amazing product today — order now.
