Description

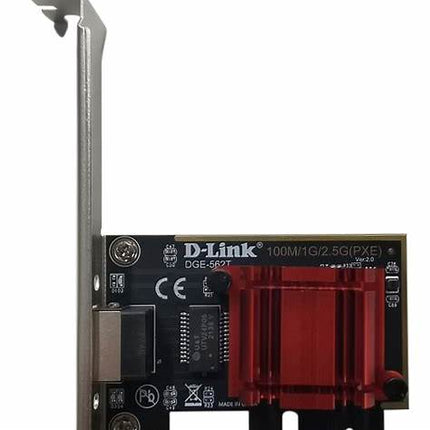

The D-Link DGE-562T is a high-performance PCI Express 2.5 Gigabit Ethernet Network Adapter designed to provide increased bandwidth and connection reliability over standard PCI network cards. It supports the IEEE 802.3bz 2.5GBase-T standard, delivering data rates up to 2.5 Gbps. Advanced features include Wake-on-LAN, VLAN tagging, and Energy-Efficient Ethernet compliance, making it suitable for both home and business networking environments.
Key Features:
-
One 100/1000/2.5GBase-T port with RJ-45 connector
-
PCI Express x1 installation slot
-
Data rates up to 2.5 Gbps
-
Supports IEEE 802.3bz 2.5GBase-T standard
-
Wake-on-LAN (WOL) support
-
802.1Q VLAN Tagging
-
802.1p Priority Encoding
-
IEEE 802.3az Energy-Efficient Ethernet compliance
-
Supports Jumbo Frames up to 9.8 KB
-
Auto MDI/MDIX adjustment
-
LED indicators for Link/Activity and Speed
Specifications:
Dimensions: 71.5 x 50 x 1.6 mm
Other Specs:
-
Chipset: RTL8125
-
Network Cables: UTP Cat. 3 or above for Ethernet (100 m max.); UTP Cat. 5 or above for Fast Ethernet/Gigabit Ethernet/2.5 Gigabit Ethernet (100 m max.)
-
Standards and Functions: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBase-T, IEEE 802.3az Energy-Efficient Ethernet, 802.3x Flow Control in full-duplex mode, PCI Express 2.1 compliant, Advanced Configuration Power Interface (ACPI)
-
Duplex Mode: Full/Half-duplex for 10/100 Mbps; Full-duplex for 1000 Mbps / 2.5 Gbps
-
OS Support: Microsoft Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit); Microsoft Windows Server 2012, 2008; Linux up to kernel version 4.15
-
Operating Temperature: 0 to 60 °C
-
Storage Temperature: -10 to 70 °C
-
Operating Humidity: 10% to 90% non-condensing
-
Storage Humidity: 5% to 90% non-condensing
