Product Title In Arabic : جهاز ليزر تسوية ذاتي – 5 خطوط أخضر من Jadever موديل JDLE2M05

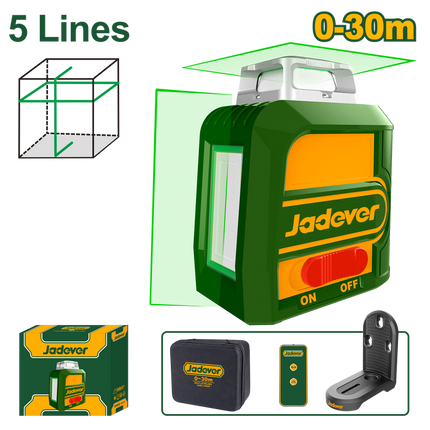

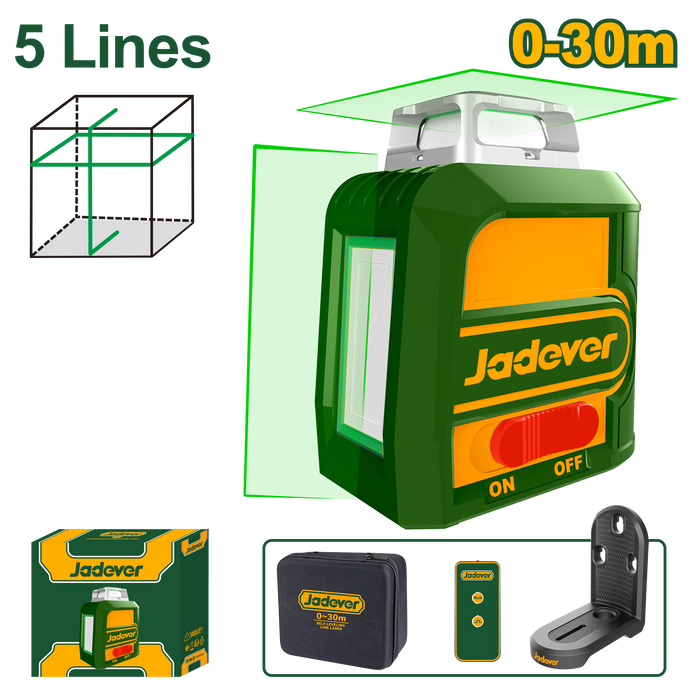

The Jadever JDLE2M05 is a professional-grade self‑leveling green laser level that projects one 360° horizontal line plus four vertical lines (including plumb lines) for comprehensive 5-line layout coverage. It provides ±2 mm accuracy at 5 m, self-levels within ≤ 3 seconds, and functions within a ±4° leveling range. Ideal for construction, interior fit-out, and precise alignment across Jordan.
Key Features:
-
Projects one full 360° horizontal plane and four vertical planes for a full 5-line layout.
-
Green laser (520 ± nm Class II, <1 mW) for superior visibility in bright conditions.
-
±2 mm leveling accuracy at 5 m, with self-level compensation ≤ 3 s and ±4° pendulum range.
-
Includes tripod mount compatibility and magnetic bracket for stable installation. Available accessories typically include remote control and carrying bag.
Specifications:
| Specification |
Value |
| Working Range |
Up to 30 m |
| Levelling Accuracy |
±2 mm @ 5 m |
| Line Accuracy |
±2 mm @ 5 m |
| Self‑Leveling Time |
≤ 3 seconds |
| Self‑Leveling Angle Range |
±4° |
| Laser Wavelength & Class |
Green 520 nm, Class II (<1 mW) |
| Projection Modes |
360° Horizontal + 4 Vertical Lines (5‑Line) |
| Operating Temperature |
0 °C to +40 °C |
| Storage Temperature |
−10 °C to +50 °C |
| Power Supply |
2 × AA (LR6 1.5 V) |
| Included |
Magnetic bracket, remote, canvas carrying bag (by distributor) |
