Product Title In Arabic : جهاز كلامب ميتر 200 أمبير AC/DC من Jadever GDDM65015

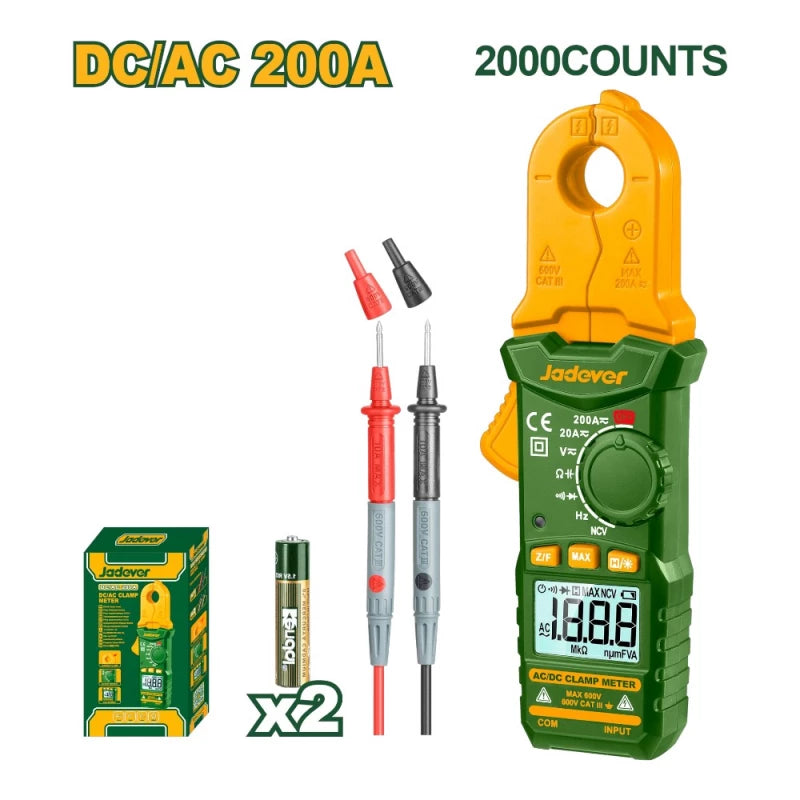

A dual-function clamp meter that measures both AC and DC current up to 200 A, with True RMS accuracy and versatile voltage, resistance, and capacitance testing. Offers non‑contact voltage detection (NCV), backlight display, diode test, data hold, zero adjustment for DC current, low battery indicator, and auto power‑off. Powered by 2 × R03 AAA batteries and packed in a color box.
Key Features:
-
True RMS display with 2000 counts resolution for both AC and DC measurements.
-
Measures AC/DC current in three ranges: 2 A, 20 A, 200 A.
-
Measures AC/DC voltage: 2 V, 20 V, 200 V, 600 V. Resistance up to 20 MΩ and capacitance from 2 nF to 2 mF.
-
Non‑contact voltage detection (NCV) for safe probing.
-
Diode test and data hold function
-
Zero adjustment for DC current mode (DCA zero).
-
Backlight display, low battery indication, and auto power‑off.
Specifications:
| Specification |
Value |
| Auto Power Off |
Yes |
| Packaging |
Color box |
| Material |
Plastic housing |
| Color Options |
Standard green body with yellow clamp |
| Power Requirements |
2 × R03 AAA batteries |
| Display |
True RMS digital, 2000 counts |
| AC Current Ranges |
2 A / 20 A / 200 A |
| DC Current Ranges |
2 A / 20 A / 200 A |
| AC/DC Voltage Ranges |
2 V / 20 V / 200 V / 600 V |
| Resistance |
200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
| Capacitance |
2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF |
| Diode Test |
Yes |
| Data Hold |
Yes |
| Non‑Contact Voltage (NCV) |
Yes |
| DCA Zero Adjustment |
Yes |
| Backlight |
Yes |
| Low Battery Indicator |
Yes |
