Description
Product Title In Arabic: فاحص أسلاك جادِفر حتى ٥٠٠ م

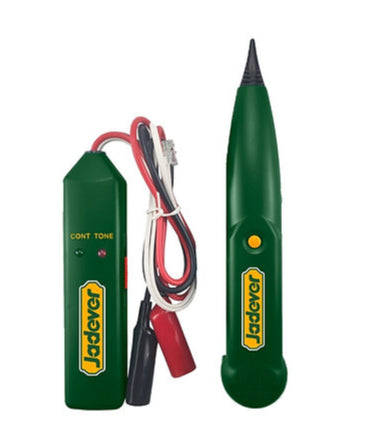

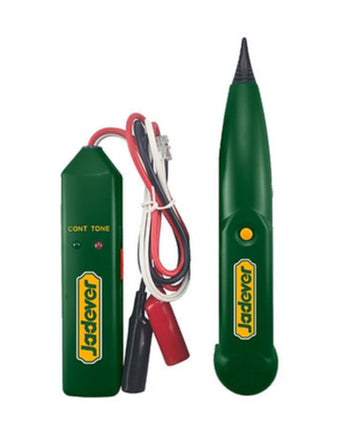

The Jadever JDTP9502 is a professional wire and cable tracker designed for finding wires up to 500 meters. It includes a transmitter and receiver and supports various electrical tests such as voltage, continuity, resistance, capacitance, and current detection. Powered by two 9 V batteries, with user‑friendly operation and built‑in LED lamp and auto power‑off feature for efficiency.
Key Features:
-
Wide reception range: up to 500 m altitude and up to 15 cm tracing depth in single loop lines
-
Supports testing: voltage (12–1000 V AC/DC), current (0–20 A), resistance (0–20 MΩ), and capacitance (0–200 μF)
-
Large backlit LCD display for clear readings, built‑in LED flashlight for use in dark environments
-
Auto power-off feature to conserve battery
-
Compact dimensions (~145 × 70 × 30 mm), lightweight (~200 g), with ABS housing and rubberized grip
-
Supplied with a transmitter and receiver, requires two 9 V (6F22) batteries (not included)
-
Packaged in a color box suitable for retail display
Specifications:
| Specification |
Value |
| Max Tracing Distance |
Up to 500 m receiving altitude |
| Tracing Depth |
Up to 15 cm single loop line |
| Voltage Test Range |
12–1000 V AC/DC |
| Current Test Range |
0–20 A AC/DC |
| Resistance Test Range |
0–20 MΩ |
| Capacitance Test Range |
0–200 μF |
| Dimensions (L × W × H) |
~145 × 70 × 30 mm |
| Weight |
~200 g |
| Display |
Large LCD, backlit |
| Light |
Built-in LED torch |
| Power Source |
2 × 9 V batteries (6F22) not included |
| Auto Power Off |
Yes |
| Housing Material |
ABS plastic, rubber grip |
| Packaging |
Color box |
