Description

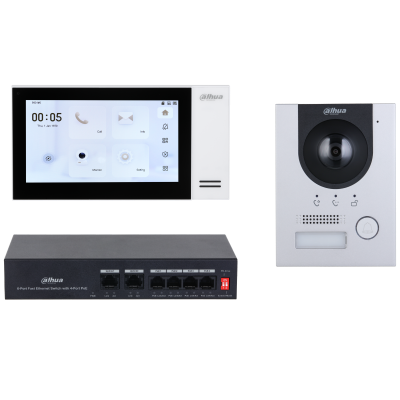

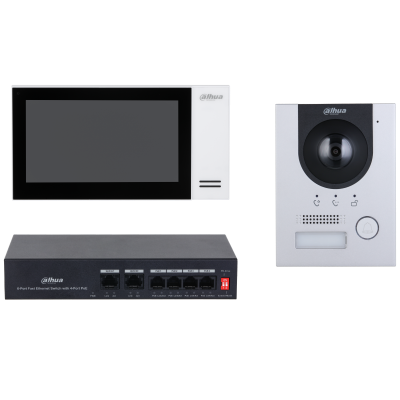

The Dahua KTP01L is a comprehensive IP video intercom kit designed for villa applications. It includes an outdoor station with a 2MP HD camera and a 7-inch indoor monitor, facilitating two-way communication and remote door unlocking via a mobile app.
Key Features:
-
2MP CMOS low illumination HD camera with a 168.6° wide-angle lens
-
7" TFT capacitive touch screen indoor monitor with 1024×600 resolution
-
Supports H.265 and H.264 video compression
-
Two-way audio communication with echo suppression and noise reduction
-
Remote access and door unlocking via mobile application
-
Supports Micro SD card storage up to 256 GB
-
IP65 weatherproof and IK07 vandal-resistant ratings
-
Power over Ethernet (PoE) support
Specifications:
-
Dimensions: Outdoor Station: 200.0 mm × 98.0 mm × 35.4 mm
-
Weight: Outdoor Station: 692 g
-
Material: Anodized aluminum front panel
-
Color Options: Silver (Outdoor Station), White (Indoor Monitor)
-
Power Requirements: 48 VDC, 0.4 A; PoE (802.3af/at)
-
Other Specs:
-
Operating Temperature: –40 °C to +60 °C
-
Operating Humidity: 10%–95% (RH), non-condensing
-
Video Resolution: Main stream: 720p; Sub stream: 1080p
-
Audio Compression: G.711a; G.711u; PCM
-
Network Protocols: SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4
