Description

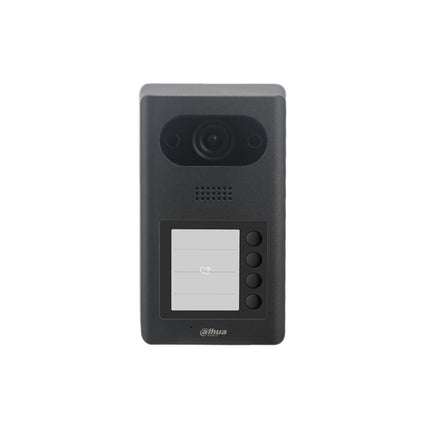

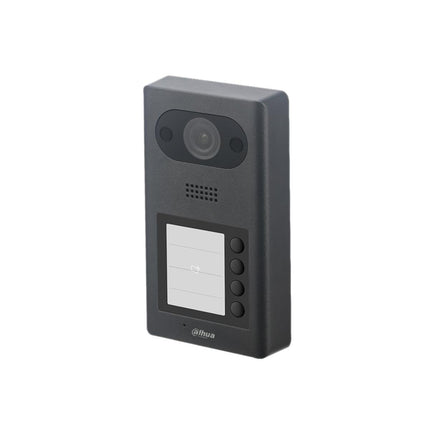

The Dahua VTO3211D-P4-S2 is a robust IP-based villa door station featuring a 2MP camera, four mechanical call buttons, and an integrated Mifare card reader. Designed for multi-resident buildings, it offers two-way audio communication, night vision, and multiple unlocking methods, ensuring secure and convenient access control.
Key Features:
-
2MP CMOS camera with 129° horizontal viewing angle
-
Four mechanical call buttons for multi-resident access
-
Integrated Mifare card reader supporting up to 10,000 cards
-
IR illumination for night vision
-
Two-way audio with echo cancellation and noise reduction
-
Supports card, app, and indoor monitor unlocking methods
-
Tamper alarm and motion detection features
-
Weatherproof (IP65) and vandal-resistant (IK08) design
-
Surface-mounted installation
-
Power options: 12V DC or PoE (802.3af)
Specifications:
-
Dimensions: 181 mm × 101 mm × 31 mm
-
Weight: 0.66 kg
-
Material: Aluminum alloy casing
-
Color Options: Greyish-black
-
Power Requirements: 12V DC / PoE (802.3af)
-
Other Specs:
-
Operating Temperature: -30°C to +60°C
-
Operating Humidity: 10%–95% RH
-
Video Compression: H.264
-
Audio Compression: G.711Mu, G.711u, PCM
-
Network Protocols: SIP, P2P, IPv4, DNS, RTSP, RTP, TCP, UDP
-
Card Reading Distance: 3–5 cm
-
Supports Micro SD card up to 64GB (for indoor monitor)
