Description

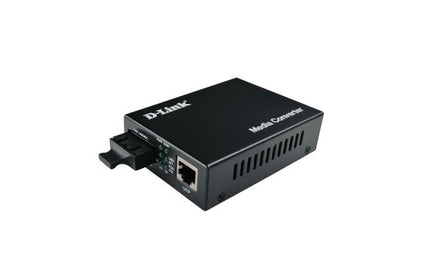

The D-Link DMC-810SSC is a high-performance media converter that facilitates the extension of network connectivity by converting 10/100/1000BASE-T Ethernet signals to 1000BASE-LX single-mode fiber signals. Designed for long-distance data transmission up to 10 km, it ensures seamless integration between copper and fiber networks.
Key Features:
-
Converts 10/100/1000BASE-T Ethernet to 1000BASE-LX single-mode fiber
-
Supports data transmission distances up to 10 km
-
SC-type fiber connector with 1310 nm wavelength
-
Auto MDI/MDIX for easy installation
-
Full-duplex operation with store-and-forward mode
-
Plug-and-play functionality; no additional software required
-
Compatible with DMC-1014 chassis for centralized deployment
Specifications:
Dimensions: 95 x 70 x 26 mm
Material: Metal enclosure
Color Options: Black
Power Requirements: 5V/1A external power adapter
Other Specs:
-
Operating Temperature: 0°C to 60°C
-
Storage Temperature: -20°C to 70°C
-
Humidity: 5% to 90% RH, non-condensing
-
LED Indicators: Power (PWR), Link/Activity (LINK/ACT)
-
Emission Certifications: FCC, CE, VCCI
