Description

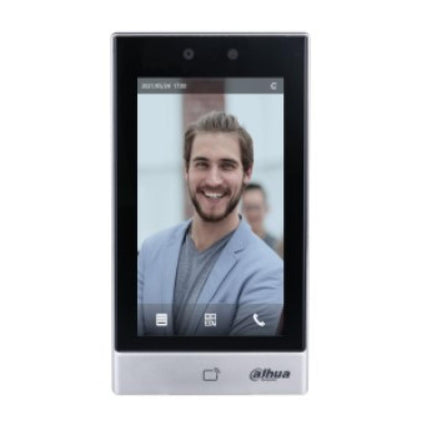

The Dahua DHI-ASI7213S-W is a standalone face recognition access controller equipped with a 7" LCD touchscreen and a 2MP dual-lens CMOS camera. It supports multiple authentication methods, including face recognition, IC card, password, and QR code, providing flexible access control solutions for various applications.

Key Features:

  • 7" LCD touchscreen with 1024 × 600 resolution

  • 2MP dual-lens CMOS camera with DWDR

  • Supports face recognition, IC card, password, and QR code authentication

  • Capacity for 50,000 users, 50,000 faces, 100,000 cards, 50,000 passwords, and 300,000 records

  • Face recognition distance: 0.3 m–2.0 m; accuracy: 99.9%; recognition time: 0.2 s

  • Supports Wi-Fi (802.11b/g/n) and TCP/IP connectivity

  • Multiple alarms: tamper, duress, intrusion, unlock timeout, and illegal card/password attempts

  • Supports video calls with indoor monitors, master station, and mobile app

  • Compatible with DSS Pro and SmartPSS Lite

Specifications:

  • Dimensions: 218 mm × 118 mm × 24.2 mm

  • Weight: 0.67 kg

  • Material: Tempered glass and PC

  • Color Options: Black and Silver

  • Power Requirements: 12 VDC, 2 A; Power consumption ≤24 W

  • Other Specs:

    • Operating Temperature: –20 °C to +55 °C

    • Operating Humidity: 0%–90% RH, non-condensing

    • Installation: Wall mount, turnstile mount, 86 case mount, floor bracket mount

    • Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP

    • Interfaces: 1 × RS-485, 1 × RS-232, 1 × Wiegand (input/output), 1 × USB 2.0, 1 × RJ-45 Ethernet port

    • Alarm Inputs/Outputs: 2 digital inputs, 1 relay output

    • Card Reading Distance: 0 cm–3 cm

    • Face Recognition Height Range: 0.9 m–2.4 m

Face Recognition Access Controller

Product form

The Dahua DHI-ASI7213S-W is a standalone face recognition access controller equipped with a 7" LCD touchscreen and a 2MP dual-lens... Read more

SKU: ASI7213S-W

280.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua DHI-ASI7213S-W is a standalone face recognition access controller equipped with a 7" LCD touchscreen and a 2MP dual-lens CMOS camera. It supports multiple authentication methods, including face recognition, IC card, password, and QR code, providing flexible access control solutions for various applications.

    Key Features:

    • 7" LCD touchscreen with 1024 × 600 resolution

    • 2MP dual-lens CMOS camera with DWDR

    • Supports face recognition, IC card, password, and QR code authentication

    • Capacity for 50,000 users, 50,000 faces, 100,000 cards, 50,000 passwords, and 300,000 records

    • Face recognition distance: 0.3 m–2.0 m; accuracy: 99.9%; recognition time: 0.2 s

    • Supports Wi-Fi (802.11b/g/n) and TCP/IP connectivity

    • Multiple alarms: tamper, duress, intrusion, unlock timeout, and illegal card/password attempts

    • Supports video calls with indoor monitors, master station, and mobile app

    • Compatible with DSS Pro and SmartPSS Lite

    Specifications:

    • Dimensions: 218 mm × 118 mm × 24.2 mm

    • Weight: 0.67 kg

    • Material: Tempered glass and PC

    • Color Options: Black and Silver

    • Power Requirements: 12 VDC, 2 A; Power consumption ≤24 W

    • Other Specs:

      • Operating Temperature: –20 °C to +55 °C

      • Operating Humidity: 0%–90% RH, non-condensing

      • Installation: Wall mount, turnstile mount, 86 case mount, floor bracket mount

      • Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP

      • Interfaces: 1 × RS-485, 1 × RS-232, 1 × Wiegand (input/output), 1 × USB 2.0, 1 × RJ-45 Ethernet port

      • Alarm Inputs/Outputs: 2 digital inputs, 1 relay output

      • Card Reading Distance: 0 cm–3 cm

      • Face Recognition Height Range: 0.9 m–2.4 m
