Description

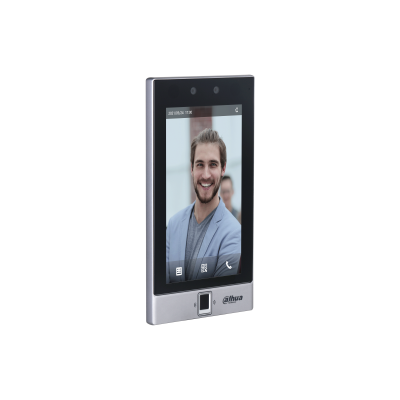

The Dahua ASI7214S-W is a standalone access control terminal featuring advanced face recognition, fingerprint scanning, IC card reading, and password verification. Designed for secure and efficient access management, it integrates seamlessly into various security systems.
Key Features:

  • 7" LCD capacitive touchscreen with 1024 × 600 resolution

  • 2-MP dual-lens CMOS camera with auto illumination for low-light environments

  • Supports multiple verification methods: face, fingerprint, IC card, password, and QR code

  • Face recognition distance: 0.3 m–2.0 m; height range: 0.9 m–2.4 m

  • Recognition speed: face within 0.2 s; fingerprint within 0.5 s

  • High storage capacity: 50,000 users, 50,000 faces, 10,000 fingerprints, 100,000 cards, 50,000 passwords, and 300,000 records

  • Wi-Fi (802.11b/g/n) and TCP/IP connectivity

  • Supports mask and safety helmet detection

  • Multiple alarm functions: duress, tamper, intrusion, and more
    Specifications:

  • Dimensions: 218 mm × 118 mm × 24.2 mm

  • Weight: 0.67 kg

  • Material: Tempered glass and PC

  • Color Options: Silver/Black

  • Power Requirements: 12 VDC, 2 A; ≤24 W

  • Other Specs:

    • Operating Temperature: –20 °C to +55 °C

    • Operating Humidity: 0%–90% (non-condensing)

    • Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP

    • Interfaces: RS-485, RS-232, Wiegand, USB 2.0, RJ-45 Ethernet

    • Alarm Inputs/Outputs: 2 inputs, 1 relay output

    • Installation Options: Wall mount, turnstile mount, floor bracket mount

Dahua Face Recognition Access Controller

Product form

SKU: ASI7214S-W

330.000 JOD

    Description

    The Dahua ASI7214S-W is a standalone access control terminal featuring advanced face recognition, fingerprint scanning, IC card reading, and password verification. Designed for secure and efficient access management, it integrates seamlessly into various security systems.
    Key Features:

    • 7" LCD capacitive touchscreen with 1024 × 600 resolution

    • 2-MP dual-lens CMOS camera with auto illumination for low-light environments

    • Supports multiple verification methods: face, fingerprint, IC card, password, and QR code

    • Face recognition distance: 0.3 m–2.0 m; height range: 0.9 m–2.4 m

    • Recognition speed: face within 0.2 s; fingerprint within 0.5 s

    • High storage capacity: 50,000 users, 50,000 faces, 10,000 fingerprints, 100,000 cards, 50,000 passwords, and 300,000 records

    • Wi-Fi (802.11b/g/n) and TCP/IP connectivity

    • Supports mask and safety helmet detection

    • Multiple alarm functions: duress, tamper, intrusion, and more
      Specifications:

    • Dimensions: 218 mm × 118 mm × 24.2 mm

    • Weight: 0.67 kg

    • Material: Tempered glass and PC

    • Color Options: Silver/Black

    • Power Requirements: 12 VDC, 2 A; ≤24 W

    • Other Specs:

      • Operating Temperature: –20 °C to +55 °C

      • Operating Humidity: 0%–90% (non-condensing)

      • Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP

      • Interfaces: RS-485, RS-232, Wiegand, USB 2.0, RJ-45 Ethernet

      • Alarm Inputs/Outputs: 2 inputs, 1 relay output

      • Installation Options: Wall mount, turnstile mount, floor bracket mount
