Description

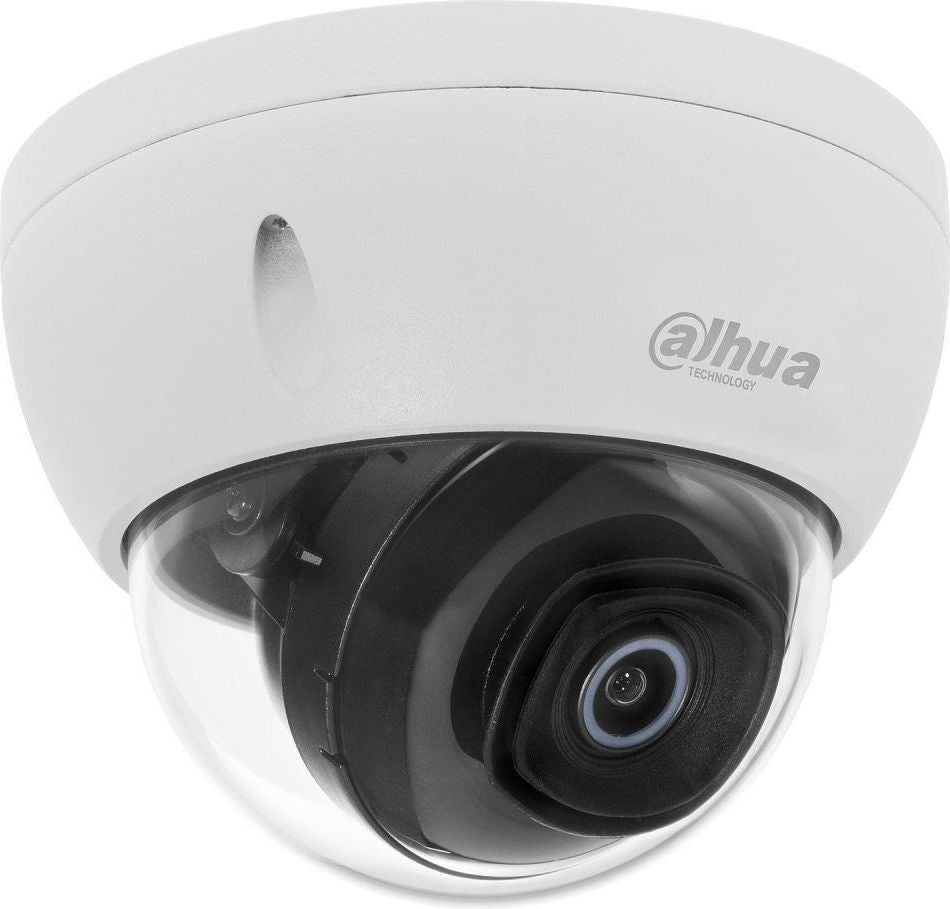

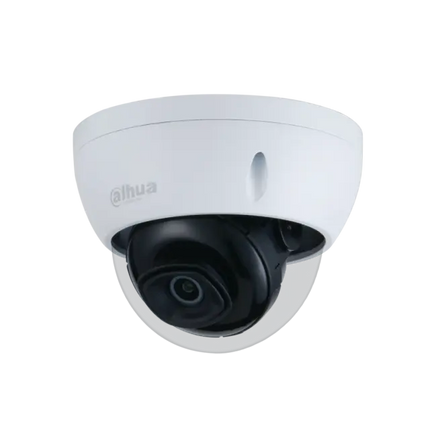

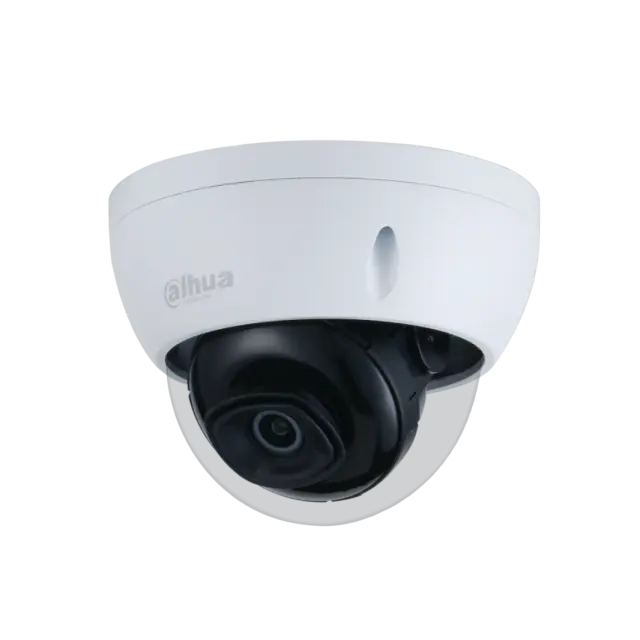

The Dahua DH-IPC-HDBW2431E-S-S2 is a 4MP Lite IR Fixed-focal Dome Network Camera designed for high-definition surveillance. It offers superior image quality with a compact design, making it ideal for various monitoring scenarios.

Key Features:

  • 4MP resolution (2688 × 1520) at 20 fps

  • H.265 codec, high compression rate, ultra-low bit rate

  • Built-in IR LED with up to 30 m illumination distance

  • Smart H.264+/H.265+, flexible coding

  • WDR, 3D NR, BLC, digital watermarking

  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access

  • Supports max. 256 G Micro SD card

  • IP67 protection

Specifications:

  • Dimensions: Φ122 mm × 88.9 mm

  • Weight: 0.47 kg

  • Material: Metal casing

  • Color Options: White

  • Power Requirements: 12 VDC

  • Other Specs:

    • Image Sensor: 1/3" CMOS

    • Lens: 3.5 mm fixed-focal

    • Field of View: Horizontal: 84°, Vertical: 45°, Diagonal: 100°

    • Minimum Illumination: 0.008 Lux@F1.6 (Color), 0 Lux with IR on

    • Video Compression: H.264B; H.264; H.264H; H.265

    • Smart Codec: Smart H.265+; Smart H.264+

    • Video Frame Rate: Main stream: 2688 × 1520 (1–20 fps); Sub stream: 704 × 576 (1–25 fps)

    • Day/Night: Auto (ICR)/Color/B/W

    • WDR: WDR

    • Noise Reduction: 3D NR

    • Ingress Protection: IP67

    • Operating Temperature: –30°C to +60°C

    • Storage Temperature: –30°C to +60°C

    • Humidity: <95% (non-condensation)

    • Power Consumption: Max. 5.3 W (12V DC, IR on)

Dahua 4MP Lite IR Fixed-focal Dome Network Camera

Product form

SKU: DH-IPC-HDBW2431E-S-S2-3.5

60.000 JOD

    Description

    The Dahua DH-IPC-HDBW2431E-S-S2 is a 4MP Lite IR Fixed-focal Dome Network Camera designed for high-definition surveillance. It offers superior image quality with a compact design, making it ideal for various monitoring scenarios.

    Key Features:

    • 4MP resolution (2688 × 1520) at 20 fps

    • H.265 codec, high compression rate, ultra-low bit rate

    • Built-in IR LED with up to 30 m illumination distance

    • Smart H.264+/H.265+, flexible coding

    • WDR, 3D NR, BLC, digital watermarking

    • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access

    • Supports max. 256 G Micro SD card

    • IP67 protection

    Specifications:

    • Dimensions: Φ122 mm × 88.9 mm

    • Weight: 0.47 kg

    • Material: Metal casing

    • Color Options: White

    • Power Requirements: 12 VDC

    • Other Specs:

      • Image Sensor: 1/3" CMOS

      • Lens: 3.5 mm fixed-focal

      • Field of View: Horizontal: 84°, Vertical: 45°, Diagonal: 100°

      • Minimum Illumination: 0.008 Lux@F1.6 (Color), 0 Lux with IR on

      • Video Compression: H.264B; H.264; H.264H; H.265

      • Smart Codec: Smart H.265+; Smart H.264+

      • Video Frame Rate: Main stream: 2688 × 1520 (1–20 fps); Sub stream: 704 × 576 (1–25 fps)

      • Day/Night: Auto (ICR)/Color/B/W

      • WDR: WDR

      • Noise Reduction: 3D NR

      • Ingress Protection: IP67

      • Operating Temperature: –30°C to +60°C

      • Storage Temperature: –30°C to +60°C

      • Humidity: <95% (non-condensation)

      • Power Consumption: Max. 5.3 W (12V DC, IR on)
