Description

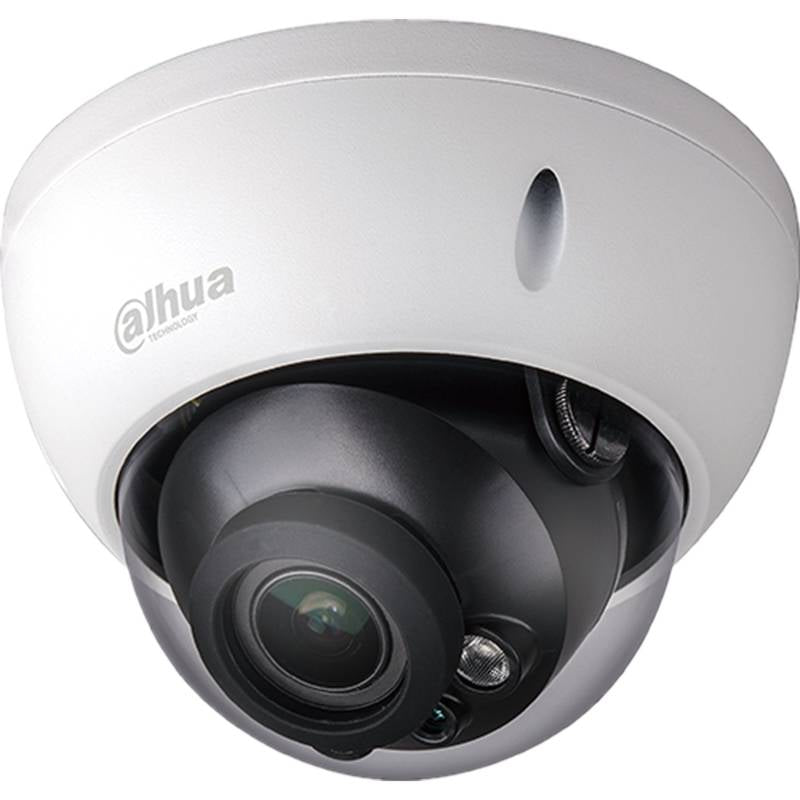

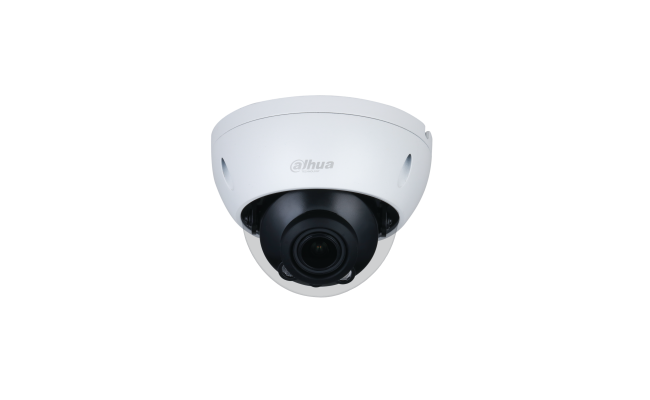

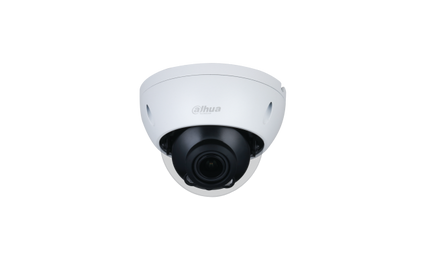

The Dahua DH-HAC-HDBW1200R-Z is a 2MP HDCVI IR dome camera designed for high-definition surveillance. It features a motorized vari-focal lens, Smart IR technology, and robust protection ratings, making it suitable for various indoor and outdoor applications.
Key Features:
-
2MP CMOS sensor delivering 1080p resolution
-
2.7–12mm motorized vari-focal lens
-
Smart IR with up to 30m IR distance
-
Supports CVI/TVI/AHD/CVBS video outputs
-
IP67 weatherproof and IK10 vandal-resistant ratings
-
Wide operating temperature range: –30°C to +60°C
Specifications:
-
Dimensions: φ122.0 mm × 88.9 mm
-
Weight: Net 0.34 kg; Gross 0.51 kg
-
Material: Plastic dome cover, metal upper casing, metal pedestal
-
Color Options: White
-
Power Requirements: 12V DC ±30%
-
Other Specs:
-
Minimum illumination: 0.02 Lux/F1.7, 0 Lux with IR on
-
S/N Ratio: >65 dB
-
IR LEDs: 2 units
-
Field of View: Horizontal 33°–102°, Vertical 19°–53°, Diagonal 38°–125°
-
Video Frame Rate: 1080p@25/30fps
-
Video Output: BNC port with CVI/TVI/AHD/CVBS switchable
-
Ingress Protection: IP67
-
Vandal Resistance: IK10
