Description

The D-Link NKJ-6AWHI1B21 is a high-performance Cat6A UTP keystone jack designed for 10 Gigabit Ethernet applications. It features a tool-less design with an IDC cap for easy wire management and is compatible with both 110 and Krone punch-down tools.

Key Features:

  • RJ45 8P8C 180° 50μ gold-plated contacts

  • Supports 10GBASE-T Ethernet

  • Tool-less termination with IDC cap

  • Compatible with 22–26 AWG stranded and solid wire

  • Universal labeling for T568A and T568B wiring schemes

  • Fits high-density keystone panels

  • Complies with ANSI/TIA/EIA 568 C.2 and ISO/IEC 11801 standards

Specifications:

  • Dimensions: 6.2 x 1 x 1 cm

  • Weight: 10 grams

  • Material:

    • Housing: ABS+PC, UL 94V-0

    • Contact Bracket: PC, UL 94V-2

    • Contacts: Phosphor bronze with nickel plating, 50μ gold-plated on plug contact area

    • IDC Housing: PC + Glass Fiber, UL 94V-2

    • IDC Terminals: Phosphor bronze with tin plating

    • IDC Cap: PC + Glass Fiber, UL 94V-2

    • PCB: FR4, UL 94V-0

  • Color Options: White

  • Power Requirements: Not applicable

  • Other Specifications:

    • Insertion force: 20N max (IEC 60603-7-4)

    • Retention strength: 7.7 kg between jack and plug

    • Operating temperature: -10°C to 60°C

    • Mating cycles: 750 cycles min

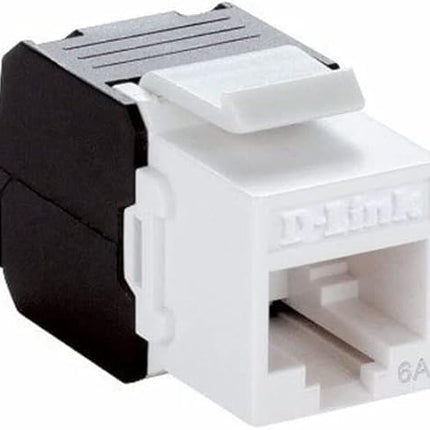

Cat6A 10G UTP 180° Tool-less Keystone Jack

Product form

The D-Link NKJ-6AWHI1B21 is a high-performance Cat6A UTP keystone jack designed for 10 Gigabit Ethernet applications. It features a tool-less... Read more

SKU: NKJ-6AWHI1B21

4.000 JOD

🚚 توصلك بسرعة

    Description

    The D-Link NKJ-6AWHI1B21 is a high-performance Cat6A UTP keystone jack designed for 10 Gigabit Ethernet applications. It features a tool-less design with an IDC cap for easy wire management and is compatible with both 110 and Krone punch-down tools.

    Key Features:

    • RJ45 8P8C 180° 50μ gold-plated contacts

    • Supports 10GBASE-T Ethernet

    • Tool-less termination with IDC cap

    • Compatible with 22–26 AWG stranded and solid wire

    • Universal labeling for T568A and T568B wiring schemes

    • Fits high-density keystone panels

    • Complies with ANSI/TIA/EIA 568 C.2 and ISO/IEC 11801 standards

    Specifications:

    • Dimensions: 6.2 x 1 x 1 cm

    • Weight: 10 grams

    • Material:

      • Housing: ABS+PC, UL 94V-0

      • Contact Bracket: PC, UL 94V-2

      • Contacts: Phosphor bronze with nickel plating, 50μ gold-plated on plug contact area

      • IDC Housing: PC + Glass Fiber, UL 94V-2

      • IDC Terminals: Phosphor bronze with tin plating

      • IDC Cap: PC + Glass Fiber, UL 94V-2

      • PCB: FR4, UL 94V-0

    • Color Options: White

    • Power Requirements: Not applicable

    • Other Specifications:

      • Insertion force: 20N max (IEC 60603-7-4)

      • Retention strength: 7.7 kg between jack and plug

      • Operating temperature: -10°C to 60°C

      • Mating cycles: 750 cycles min
