Description

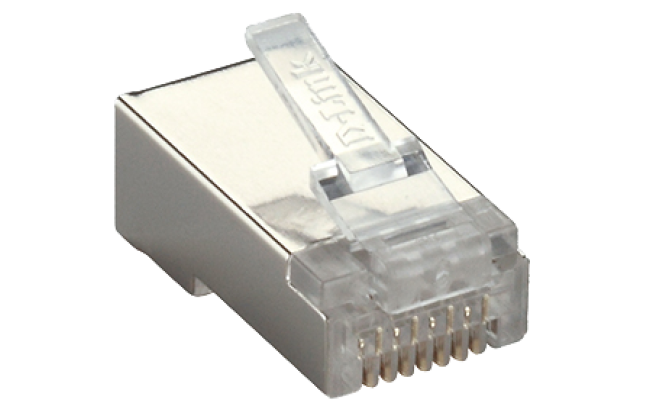

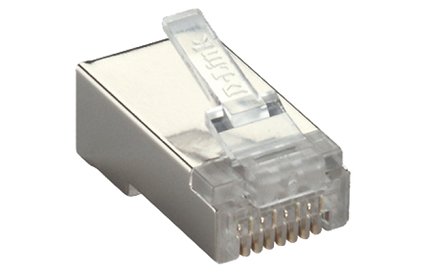

The D-Link NPG-C61MET502-100 is a high-performance Cat6 FTP modular plug designed for reliable and fast data transmission. It supports both stranded and solid 24–26 AWG cables and is compatible with standard RJ45 crimping tools, making it ideal for various networking applications
Key Features:
-
Supports 4 twisted pairs (8P8C)
-
Terminates 24–26 AWG stranded and solid wires
-
Compatible with T568A/T568B wiring schemes
-
50 micro-inch gold-plated contacts for enhanced conductivity and durability
-
Polycarbonate housing with UL94V-2 rating
-
Nickel-plated bronze shielding for EMI protection
-
Complies with IEC60603-7-4 and ANSI/TIA/EIA-568-C.2 standards
-
Rated for 2000 insertion cycles
-
Operating temperature range: -40°C to 125°C
Specifications:
-
Material: Polycarbonate housing, phosphor bronze contacts with nickel and gold plating, nickel-plated bronze shield
-
Color Options: Transparent with metallic shield
-
Other Specs: Current rating: 2A; Voltage rating: 250V AC; Insulation resistance: >500 MΩ at 1000V DC/min; Contact resistance: <20 mΩ
