Description

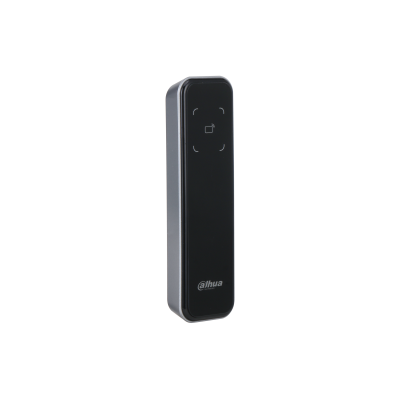

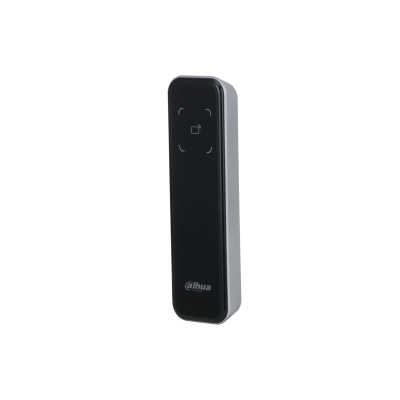

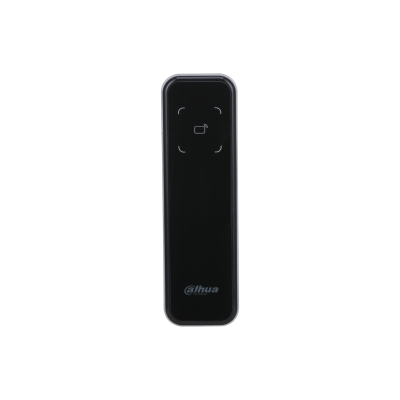

The Dahua ASR2200A-B is a slim, IP66-rated access control reader designed for both indoor and outdoor environments. It supports contactless IC card (Mifare) authentication and Bluetooth unlocking via the DMSS mobile app. With RS-485 and Wiegand output compatibility, it integrates seamlessly into various access control systems. Features like tamper detection, buzzer/LED indicators, and a built-in watchdog ensure secure and reliable operation.
Key Features:
-
Supports IC card (Mifare) and Bluetooth unlocking
-
RS-485 and Wiegand output interfaces
-
IP66-rated for indoor and outdoor use
-
Tamper alarm and watchdog functionality
-
Visual and audio prompts via LED and buzzer
Specifications:
-
Dimensions: 135 mm × 40 mm × 15 mm
-
Weight: 160 g
-
Material: Tempered glass and PC plastic
-
Color Options: Black
-
Power Requirements: 12V DC, 0.5A
-
Other Specs:
-
Card Reading Distance: 0–5 cm
-
Bluetooth Range: Short: ≤0.2 m; Mid: ≤2 m; Long: ≤10 m
-
Response Time: 0.1 s
-
Operating Temperature: –30°C to +70°C
-
Operating Humidity: 5%–95% RH (non-condensing)
-
Ingress Protection: IP66
-
Certifications: CE, FCC
