Description

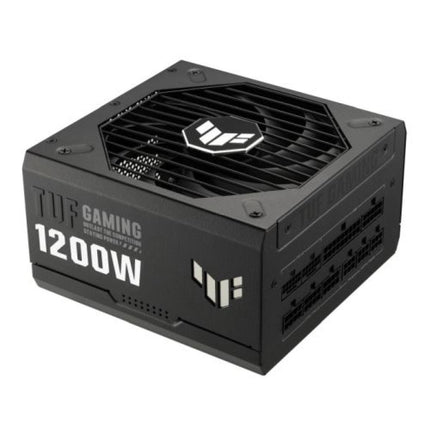

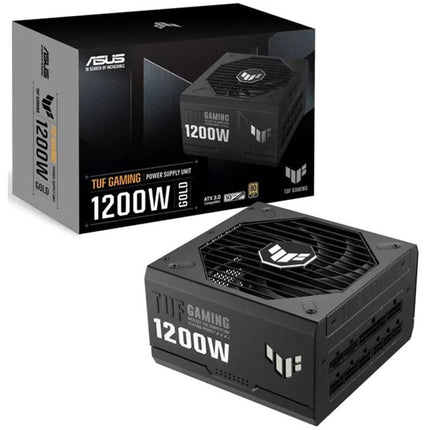

The ASUS TUF Gaming 1200W Gold PSU (TUF-GAMING-1200G) is engineered to deliver unwavering power for top-tier gaming PCs and high-performance workstations. Certified with 80 PLUS Gold for superior energy efficiency, this fully modular power supply features ATX 3.0 compatibility and supports PCIe 5.0 with a 12VHPWR connector, making it ready for the latest GPUs, including the NVIDIA RTX 40 series. With military-grade components, enhanced cooling with an Axial-tech fan, and robust protection features, this PSU offers unbeatable durability, stability, and efficiency for modern gaming builds.
Key Features:
-
1200W Total Power Output – Supports power-hungry CPUs and GPUs
-
80 PLUS Gold Certification – High energy efficiency
-
ATX 3.0 Compatible – Future-proof power delivery standard
-
Fully Modular Design – Use only the cables you need for cleaner builds
-
PCIe 5.0 Ready – Includes 12VHPWR connector for next-gen GPUs
-
Military-Grade Components – Built for long-lasting performance
-
135mm Axial-tech Fan – Quiet and efficient cooling
-
Comprehensive Protection – OPP, OVP, SCP, OCP, OTP included
Specifications
-
Power Output: 1200 Watts
-
Efficiency Rating: 80 PLUS Gold
-
Form Factor: ATX
-
Standard: ATX 3.0
-
Modularity: Fully modular
-
Main Connectors:
- 1x 24-pin motherboard
-2x 8-pin CPU (4+4)
-6x PCIe (6+2)
-1x 12VHPWR (for PCIe 5.0 GPUs)
-12x SATA, 4x Peripheral
-
Cooling Fan: 135mm Axial-tech fan with dual ball bearing
-
MTBF: Over 100,000 hours
-
Protections:
- Over Power Protection (OPP)
-Over Voltage Protection (OVP)
-Short Circuit Protection (SCP)
-Over Current Protection (OCP)
-Over Temperature Protection (OTP)
-
Build Quality: Military-grade capacitors
