Description

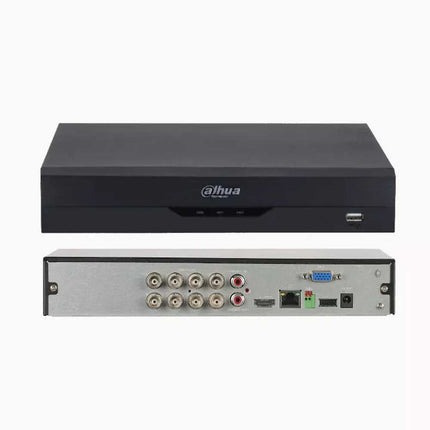

The Dahua DH-XVR5108HS-I3 is an 8-channel Penta-brid digital video recorder from the WizSense series, supporting HDCVI, AHD, TVI, CVBS, and IP video inputs. It features AI capabilities such as SMD Plus, perimeter protection, and face recognition, making it suitable for advanced surveillance applications.

Key Features:

  • 8-channel analog video input (HDCVI/AHD/TVI/CVBS)

  • Supports up to 12 IP camera inputs (each up to 6MP)

  • H.265+/H.265 dual-stream video compression

  • AI functions: 8-channel SMD Plus, 4-channel perimeter protection, 2-channel face recognition

  • AI Coding for optimized storage and bandwidth

  • Supports IoT and POS functionalities

Specifications:

  • Dimensions: 260mm × 237.8mm × 47.6mm

  • Weight: 0.97kg (net), 1.39kg (gross)

  • Material: Metal

  • Color Options: Black

  • Power Requirements: 12V DC, 2A; Power consumption <7W (without HDD)

  • Other Specs:

    • Operating Temperature: –10°C to +55°C

    • Storage Temperature: –20°C to +60°C

    • Operating Humidity: 10%–90% (non-condensing)

    • Video Outputs: 1 HDMI, 1 VGA

    • Audio Input/Output: 1/1 RCA; Two-way talk supported

    • Disk Interface: 1 SATA port, up to 16TB

    • Network Interface: 1 RJ-45 port (10/100 Mbps)

    • USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)

    • AI Functions:

      • SMD Plus: 8 channels for analog; 12 channels for IP

      • Perimeter Protection: 4 channels for analog

      • Face Recognition: 2 channels for analog; up to 10 face databases with 10,000 images

    • Recording Resolution: Up to 5M-N for analog channels; up to 6MP for IP channels

    • Maximum Incoming Bandwidth: 64 Mbps

    • Supported Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, Alarm Server, P2P

    • Mobile Access: iOS, Android

    • Interoperability: ONVIF (Profile T, S, G), CGI, SDK

8 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense Digital Video Recorder

Product form

The Dahua DH-XVR5108HS-I3 is an 8-channel Penta-brid digital video recorder from the WizSense series, supporting HDCVI, AHD, TVI, CVBS, and... Read more

SKU: XVR5108HS-I3

75.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua DH-XVR5108HS-I3 is an 8-channel Penta-brid digital video recorder from the WizSense series, supporting HDCVI, AHD, TVI, CVBS, and IP video inputs. It features AI capabilities such as SMD Plus, perimeter protection, and face recognition, making it suitable for advanced surveillance applications.

    Key Features:

    • 8-channel analog video input (HDCVI/AHD/TVI/CVBS)

    • Supports up to 12 IP camera inputs (each up to 6MP)

    • H.265+/H.265 dual-stream video compression

    • AI functions: 8-channel SMD Plus, 4-channel perimeter protection, 2-channel face recognition

    • AI Coding for optimized storage and bandwidth

    • Supports IoT and POS functionalities

    Specifications:

    • Dimensions: 260mm × 237.8mm × 47.6mm

    • Weight: 0.97kg (net), 1.39kg (gross)

    • Material: Metal

    • Color Options: Black

    • Power Requirements: 12V DC, 2A; Power consumption <7W (without HDD)

    • Other Specs:

      • Operating Temperature: –10°C to +55°C

      • Storage Temperature: –20°C to +60°C

      • Operating Humidity: 10%–90% (non-condensing)

      • Video Outputs: 1 HDMI, 1 VGA

      • Audio Input/Output: 1/1 RCA; Two-way talk supported

      • Disk Interface: 1 SATA port, up to 16TB

      • Network Interface: 1 RJ-45 port (10/100 Mbps)

      • USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)

      • AI Functions:

        • SMD Plus: 8 channels for analog; 12 channels for IP

        • Perimeter Protection: 4 channels for analog

        • Face Recognition: 2 channels for analog; up to 10 face databases with 10,000 images

      • Recording Resolution: Up to 5M-N for analog channels; up to 6MP for IP channels

      • Maximum Incoming Bandwidth: 64 Mbps

      • Supported Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, Alarm Server, P2P

      • Mobile Access: iOS, Android

      • Interoperability: ONVIF (Profile T, S, G), CGI, SDK
