Description

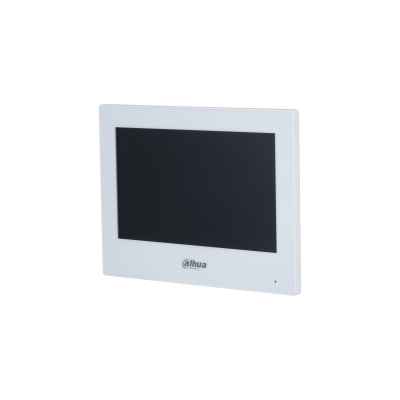

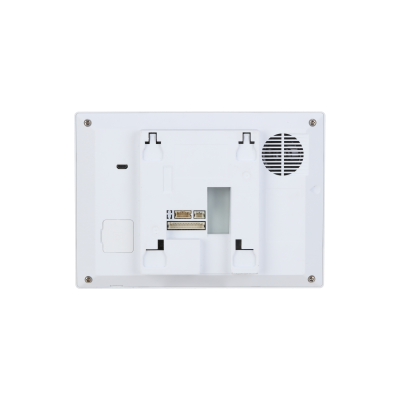

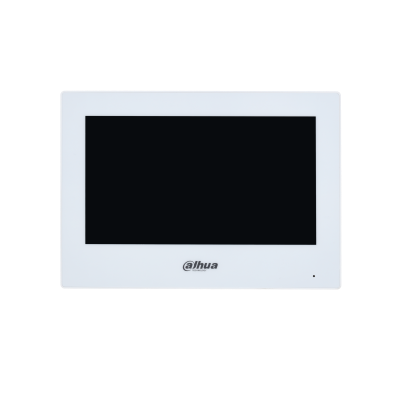

The Dahua DHI-VTH2621G-WP is a 7-inch IP & Wi-Fi indoor monitor designed for seamless integration with Dahua's video intercom systems. Featuring a capacitive touchscreen, it supports two-way audio communication, alarm integration, and offers both wired and wireless connectivity options for flexible installation.
Key Features:
-
7" TFT capacitive touchscreen with 1024 × 600 resolution
-
Supports H.265 and H.264 video decoding
-
Built-in speaker and microphone for two-way audio
-
6-channel alarm input and 1-channel alarm output
-
Supports Wi-Fi (IEEE802.11b/g/n) and standard PoE
-
Compatible with door stations and IPC monitors
-
Supports Micro SD card up to 64 GB (reserved for software)
Specifications:
-
Dimensions: 189.6 mm × 134.6 mm × 26.0 mm
-
Weight: Net: 0.34 kg; Gross: 0.58 kg
-
Material: PC + ABS
-
Color Options: Black / White
-
Power Requirements: 12 VDC 1A; Standard PoE (36–57 V, 0.35 A)
-
Other Specs:
-
Operating System: Embedded Linux
-
CPU: Dual-core 1.2 GHz
-
RAM/ROM: 128 MB / 128 MB
-
Audio Compression: G.711a, G.711u, PCM
-
Network Protocols: RTSP, RTP, SIP, DNS, SSH
-
Operating Temperature: –10°C to +55°C
-
Operating Humidity: 10%–95% RH (non-condensing)
-
Installation: Surface mount
-
Certifications: CE, FCC
