Description

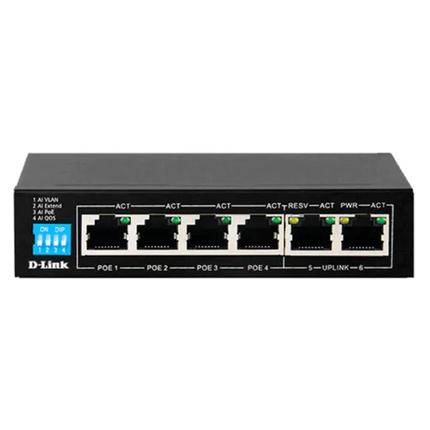

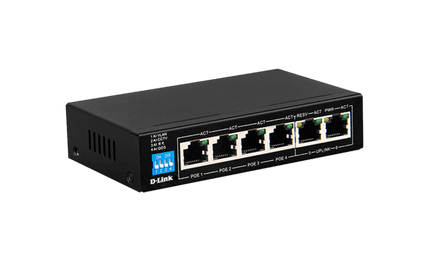

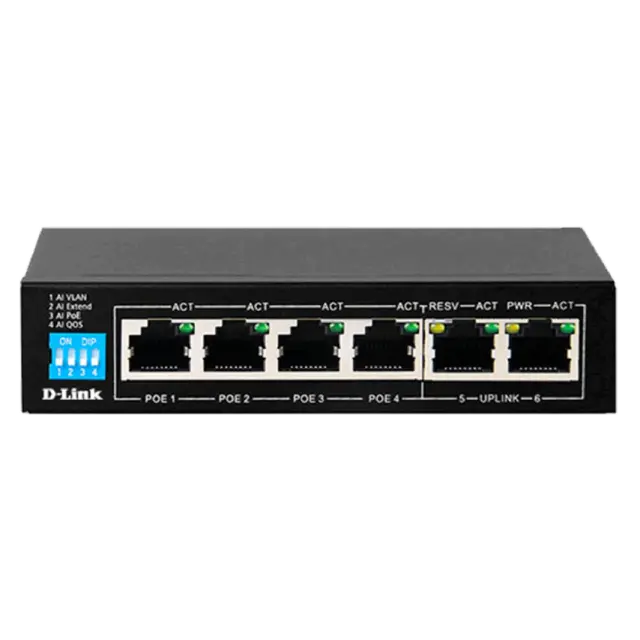

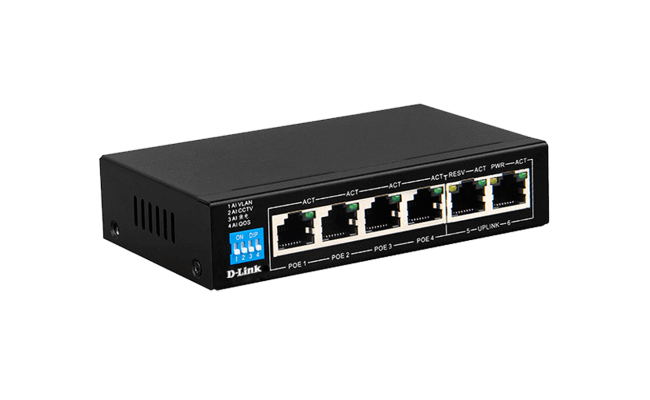

The D-Link DGS-F1006P-E is a 6-port unmanaged Gigabit switch featuring 4 PoE+ ports and 2 uplink ports. Designed for small to medium-sized businesses, it provides power and data over a single Ethernet cable to devices like IP cameras, VoIP phones, and wireless access points. With a total PoE power budget of 60W and support for long-distance PoE transmission up to 250 meters, it ensures flexible and reliable network expansion.
Key Features:
-
4 x 10/100/1000 Mbps PoE+ ports (Ports 1–4)
-
2 x 10/100/1000 Mbps uplink ports (Ports 5–6)
-
Supports IEEE 802.3af/at PoE standards
-
Total PoE power budget of 60W; up to 30W per port
-
Extended PoE transmission up to 250 meters
-
Smart features: Extend, VLAN, QoS, and PoE Reset modes
-
Built-in 6KV surge protection
-
Plug-and-play installation; no configuration required
Specifications:
Dimensions: 135 x 75 x 27 mm
Weight: 0.75 kg
Material: Metal enclosure
Color Options: Black
Power Requirements: External power adapter: 52V, 1.15A
Other Specs:
-
Switching Capacity: 12 Gbps
-
Packet Forwarding Rate: 8.93 Mpps
-
LED Indicators: Power, Link/Activity
-
Operating Temperature: 0°C to 40°C
-
Operating Humidity: 10% to 90% non-condensing
-
Certifications: CE
