Description

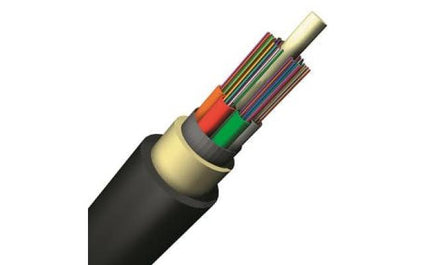

The D-Link NCB-FS09O-AUHD-06 is a 6-core single-mode (G652D) unitube armored outdoor fiber cable, designed for high-speed data transmission in challenging environments. It features a central loose tube filled with jelly compound, corrugated steel tape armor, and a UV-protected HDPE sheath, ensuring durability and protection against moisture, rodents, and mechanical stresses.
Key Features:
-
6-core single-mode (G652D) fiber
-
Unitube design with jelly-filled loose tube
-
Corrugated steel tape armor for enhanced crush resistance
-
UV-protected HDPE outer sheath
-
Suitable for outdoor installations
-
Rodent-resistant and moisture-proof
Specifications:
-
Dimensions: Outer diameter: 9.0 ± 0.3 mm
-
Weight: 100 ± 10 kg/km
-
Material: HDPE sheath, corrugated steel tape armor, glass yarn reinforcement
-
Color Options: Fiber colors include blue, orange, green, brown, slate, white
-
Power Requirements: Not applicable
-
Other Specs:
-
Loose tube diameter: 2.8 mm nominal
-
Strength member: Steel wire, steel tape, glass yarn reinforcement
-
Standard length: 2 ± 5% km
-
Installation tensile strength: 3000 N
-
Operational tensile strength: 1000 N
-
Crush resistance: 2000 N/100 mm
-
Minimum bending radius: 20 × outer diameter (installation), 10 × outer diameter (operation)
