Description

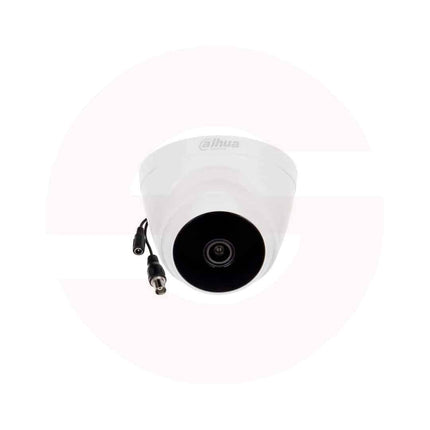

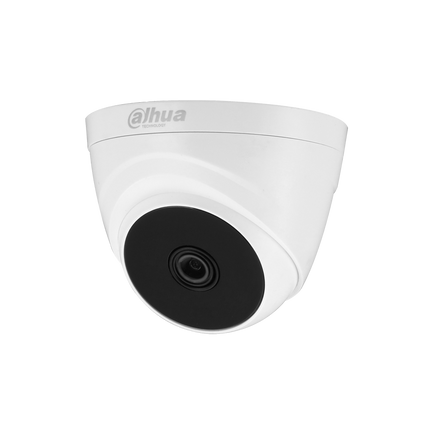

The Dahua DH-HAC-T1A51-3.6mm is a 5MP HDCVI fixed IR eyeball camera designed for high-definition surveillance applications. It offers 16:9 video output, Smart IR technology for optimal low-light performance, and IP66 weatherproofing for reliable outdoor use.
Key Features:
-
5MP resolution (2880 × 1620)
-
Supports HDCVI, CVBS, AHD, and TVI video formats
-
3.6mm fixed lens (2.8mm optional)
-
Maximum IR length of 20 meters with Smart IR
-
IP66 weatherproof rating
-
12V DC power supply
-
Multi-language OSD menu
-
Day/Night (ICR), BLC/HLC, DWDR, 2DNR
Specifications:
-
Dimensions: Φ85.0mm × 77.1mm
-
Weight: Approximately 110g
-
Material: Plastic housing
-
Color Options: White
-
Power Requirements: 12V DC ±30%
-
Other Specs:
-
Minimum illumination: 0.02 Lux/F2.0, 30IRE; 0 Lux IR on
-
Video frame rate: 5MP@25fps (16:9 video output)
-
Signal-to-Noise Ratio: More than 65 dB
-
Operating temperature: –40°C to +55°C
-
Operating humidity: <95% RH
-
Angle adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
