Description

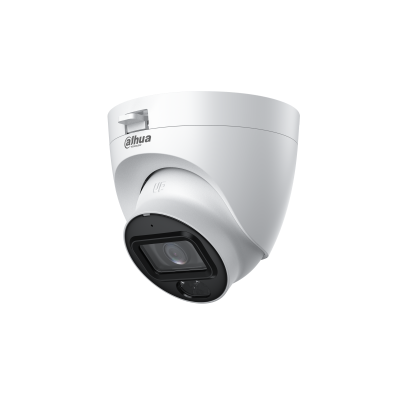

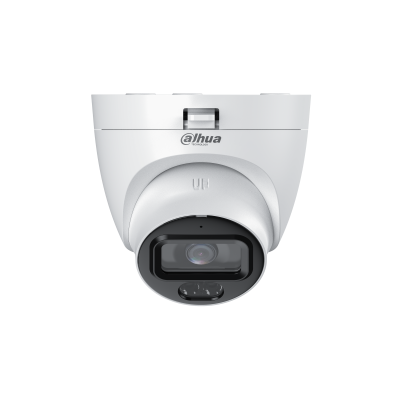

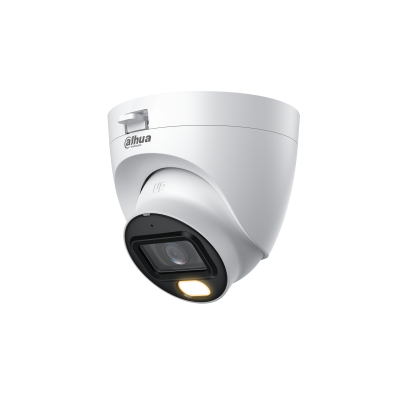

The Dahua DH-HAC-HDW1509TLQ-A-LED is a 5MP Full-color HDCVI Eyeball Camera from the Lite Series, offering 24/7 color imaging with a built-in microphone and warm LED illumination.
Key Features:
-
5MP resolution (2880 × 1620)
-
24/7 full-color imaging
-
Built-in microphone
-
Warm LED illumination up to 20 meters
-
120 dB true WDR, 3D NR
-
Smart Light+ technology
-
Switchable video output: CVI/CVBS/AHD/TVI
-
Quick-to-install eyeball design
Specifications:
-
Dimensions: Φ97.1 mm × 91.4 mm
-
Weight: 0.24 kg
-
Material: Metal inner core with plastic cover and pedestal
-
Color Options: White
-
Power Requirements: 12 VDC ±30%; Max 4.4 W (LED on)
-
Other Specs:
-
Image Sensor: 5MP CMOS
-
Lens: 3.6 mm fixed (2.8 mm optional)
-
Field of View: H: 88°; V: 46°; D: 104° (3.6 mm lens)
-
Min. Illumination: 0.001 Lux/F1.0; 0 Lux with LED on
-
Illumination Distance: 20 m
-
Video Frame Rate:
-
CVI: 5M@25 fps (PAL), 5M@25 fps (NTSC)
-
AHD: 4M@25 fps (PAL), 4M@30 fps (NTSC)
-
TVI: 4M@25 fps (PAL), 4M@30 fps (NTSC)
-
CVBS: 960H
-
WDR: 120 dB
-
Noise Reduction: 3D NR
-
Operating Temperature: –40°C to +55°C
-
Operating Humidity: <95% (non-condensing)
-
Protection: IP67
-
Mounting: Wall mount; ceiling mount; vertical pole mount
