Description

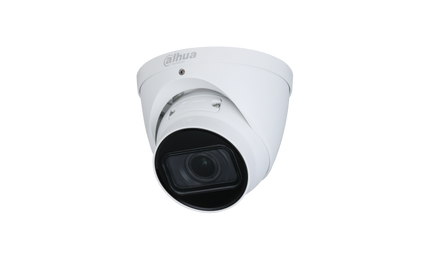

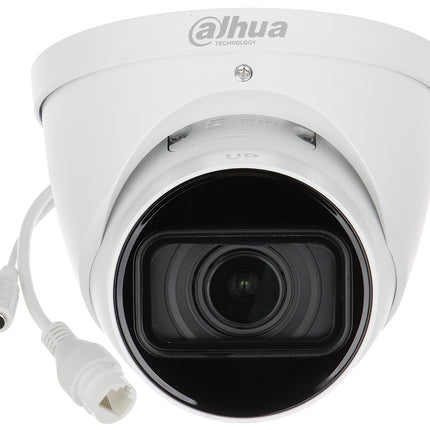

The Dahua DH-IPC-HDW1431T1N-ZS-S4 is a 4MP Entry IR Vari-focal Eyeball Network Camera designed for high-definition surveillance. It features a 1/3" CMOS image sensor, offering excellent low-light performance and high image definition. The camera supports H.265 compression, reducing bandwidth and storage requirements.

Key Features:

  • 4MP, 1/3” CMOS image sensor with low illuminance and high image definition

  • Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps

  • H.265 codec for high compression rate and ultra-low bit rate

  • Built-in IR LED with a maximum IR distance of 50 meters

  • Smart H.264+/H.265+ flexible coding

  • Image Rotation, WDR, 3D NR, HLC, BLC, digital watermarking

  • Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection

  • Supports microSD card up to 256 GB

  • 12V DC/PoE power supply

  • IP67 protection rating

Specifications:

  • Dimensions: 85.5 mm × Φ109 mm

  • Weight: 0.25 kg (net), 0.37 kg (gross)

  • Material: Metal and plastic

  • Color Options: White

  • Power Requirements: 12V DC ±30% / PoE (802.3af)

  • Other Specs:

    • Lens: 2.8 mm–12 mm motorized vari-focal lens

    • Field of View: Horizontal: 98°–31°, Vertical: 55°–18°, Diagonal: 116°–36°

    • IR Distance: Up to 50 meters

    • Ingress Protection: IP67

    • Operating Temperature: –40°C to +55°C

    • Storage: MicroSD card slot (up to 256 GB)

    • Network Interface: RJ-45 (10/100 Base-T)

    • Video Compression: H.265, H.264, MJPEG (sub stream)

    • Smart Features: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection

4MP Entry IR Vari-focal Eyeball Network Camera

Product form

The Dahua DH-IPC-HDW1431T1N-ZS-S4 is a 4MP Entry IR Vari-focal Eyeball Network Camera designed for high-definition surveillance. It features a 1/3"... Read more

SKU: DH-IPC-HDW1431T1N-ZS-S4

85.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua DH-IPC-HDW1431T1N-ZS-S4 is a 4MP Entry IR Vari-focal Eyeball Network Camera designed for high-definition surveillance. It features a 1/3" CMOS image sensor, offering excellent low-light performance and high image definition. The camera supports H.265 compression, reducing bandwidth and storage requirements.

    Key Features:

    • 4MP, 1/3” CMOS image sensor with low illuminance and high image definition

    • Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps

    • H.265 codec for high compression rate and ultra-low bit rate

    • Built-in IR LED with a maximum IR distance of 50 meters

    • Smart H.264+/H.265+ flexible coding

    • Image Rotation, WDR, 3D NR, HLC, BLC, digital watermarking

    • Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection

    • Supports microSD card up to 256 GB

    • 12V DC/PoE power supply

    • IP67 protection rating

    Specifications:

    • Dimensions: 85.5 mm × Φ109 mm

    • Weight: 0.25 kg (net), 0.37 kg (gross)

    • Material: Metal and plastic

    • Color Options: White

    • Power Requirements: 12V DC ±30% / PoE (802.3af)

    • Other Specs:

      • Lens: 2.8 mm–12 mm motorized vari-focal lens

      • Field of View: Horizontal: 98°–31°, Vertical: 55°–18°, Diagonal: 116°–36°

      • IR Distance: Up to 50 meters

      • Ingress Protection: IP67

      • Operating Temperature: –40°C to +55°C

      • Storage: MicroSD card slot (up to 256 GB)

      • Network Interface: RJ-45 (10/100 Base-T)

      • Video Compression: H.265, H.264, MJPEG (sub stream)

      • Smart Features: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
