Description

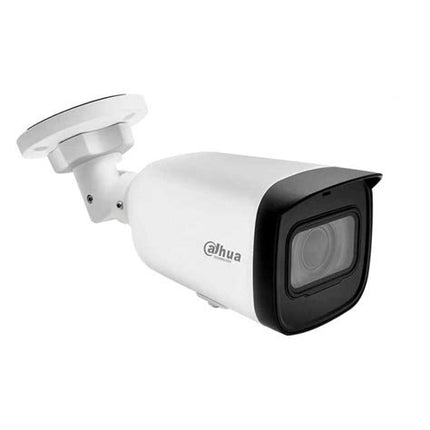

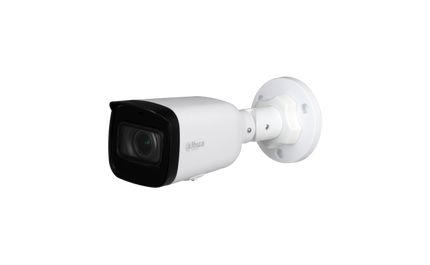

The Dahua IPC-HFW1431T1-ZS-S4 is a 4MP entry-level bullet network camera featuring a motorized vari-focal lens, Smart H.265+ compression, and up to 50m IR night vision. Designed for small to medium-sized installations, it offers IP67 weather resistance and advanced image enhancement features for reliable surveillance.
Key Features:
-
4MP 1/3" CMOS sensor with low-light sensitivity
-
Motorized 2.8–12mm vari-focal lens
-
Smart H.265+/H.264+ compression
-
Up to 50m IR illumination with Smart IR
-
120 dB true WDR, 3D DNR, HLC, BLC
-
Supports microSD card up to 256 GB
-
IP67-rated weatherproof housing
-
ONVIF (Profiles S/G/T) and RTSP support
Specifications:
-
Dimensions: 244.1 mm × 79 mm × 75.9 mm
-
Weight: Net: 0.69 kg; Gross: 0.89 kg
-
Material: Metal and plastic
-
Color Options: White
-
Power Requirements: 12V DC ±30% / PoE (802.3af)
-
Other Specs:
-
Resolution: 2688 × 1520 @20 fps; 2560 × 1440 @25/30 fps
-
Field of View: H: 98°–31°, V: 55°–18°, D: 116°–36°
-
IR Distance: Up to 50 meters
-
Operating Temperature: –30°C to +60°C
-
Ingress Protection: IP67
-
Storage: MicroSD card slot (up to 256 GB)
-
Network Interface: RJ-45 (10/100 Base-T)
-
Video Compression: H.265, H.264, MJPEG (sub stream)
-
Smart Features: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
