Description

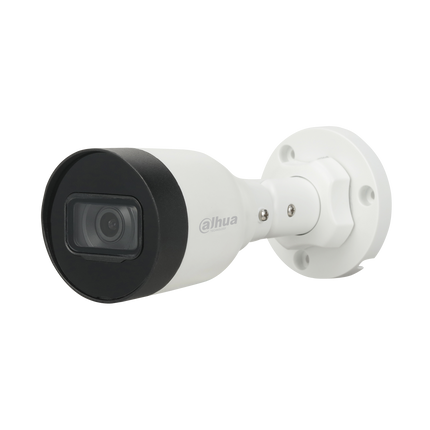

The Dahua IPC-HFW1431S1-S4-2.8 is a 4MP entry-level bullet network camera designed for high-definition surveillance in small to medium-sized environments. Equipped with a 1/3” CMOS sensor and a 2.8mm fixed lens, it delivers clear images with a wide field of view. The camera supports H.265 compression, Smart IR up to 30 meters, and features IP67-rated weatherproof housing, making it suitable for both indoor and outdoor installations.
Key Features:
-
4MP resolution (2688 × 1520)
-
2.8mm fixed lens with 93° horizontal field of view
-
H.265/H.264 video compression
-
Smart IR with 30m illumination distance
-
WDR (120 dB), 3D DNR, BLC, HLC
-
IP67 weatherproof rating
-
12V DC and PoE (802.3af) power supply
Specifications:
-
Dimensions: 162.6 mm × Φ70 mm
-
Weight: 0.22 kg
-
Material: Metal front cover, plastic main body
-
Color Options: White
-
Power Requirements: 12V DC ±30% / PoE (802.3af)
-
Other Specs:
-
Image Sensor: 1/3” 4MP progressive CMOS
-
Minimum Illumination: 0.03 Lux @ F2.0; 0 Lux with IR on
-
IR Distance: Up to 30 meters
-
Video Frame Rate: Main Stream: 2688 × 1520 (1–20 fps); 2560 × 1440 (1–25/30 fps)
-
Day/Night: Auto (ICR) / Color / B/W
-
BLC/HLC/WDR: Yes (WDR 120 dB)
-
Noise Reduction: 3D NR
-
Operating Temperature: -40°C to +55°C
-
Ingress Protection: IP67
