Description

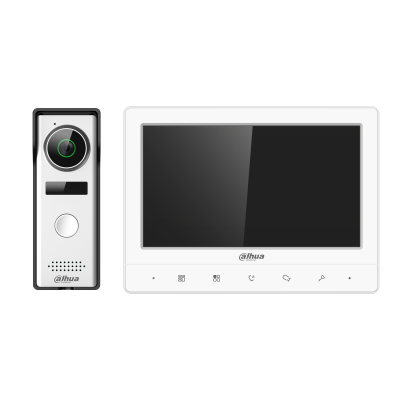

The Dahua DHI-KTA02 is a 4-wire analog video intercom kit designed for residential and small commercial applications. It includes a 7" TFT indoor monitor (VTH1020J) and an outdoor door station (VTO1000J) with a 1.3MP camera. The system supports two-way audio, video calls, door unlocking, and volume adjustment, providing a reliable and user-friendly communication solution.
Key Features:
-
7" TFT indoor monitor with 1024 × 600 resolution
-
1.3MP CMOS camera in the outdoor station
-
Supports up to 2 door stations and 3 indoor monitors
-
Digital Wide Dynamic Range (DWDR) for improved image quality
-
Multiple bell sounds
-
Surface mount installation
-
IP66-rated outdoor station for weather resistance
Specifications:
Indoor Monitor (VTH1020J):
-
Display: 7.0" TFT
-
Resolution: 1024 × 600
-
Button Type: Touch button
-
Power Supply: DC 12V/1A
-
Power Consumption: ≤ 2W (standby), ≤ 5W (working)
-
Dimensions: 133.90 mm × 182.70 mm × 17.70 mm
-
Operating Temperature: -10°C to +55°C
-
Operating Humidity: 10%RH–95%RH
-
Material: PC + ABS
-
Color: White
Outdoor Station (VTO1000J):
-
Camera: 1.3MP CMOS
-
Field of View: Horizontal: 70°, Vertical: 40°
-
Illuminator Type: Auto IR
-
Day/Night: ICR auto switch
-
Audio Input: 1 channel to the microphone; pickup distance 0.5 m
-
Audio Output: 1 channel to the speaker
-
Power Supply: Powered by indoor monitor
-
Power Consumption: ≤ 1W (standby), ≤ 3W (working)
-
Dimensions: 131.45 mm × 46.00 mm × 33.80 mm
-
Operating Temperature: -30°C to +60°C
-
Operating Humidity: 10%RH–95%RH
-
Material: PC + ABS
-
Color: Silver
-
Protection Grade: IP66
