Description

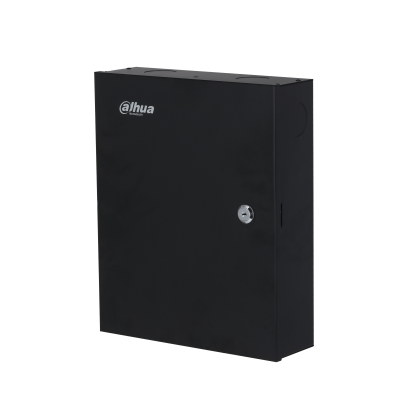

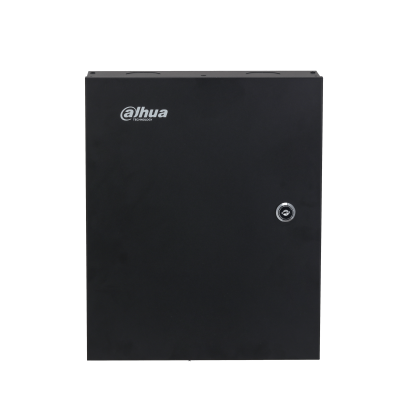

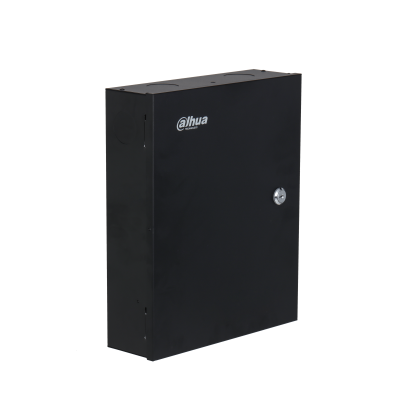

The Dahua ASC2204C-D is a multifunctional access controller designed for managing up to 4 doors with 2-way access. It supports various communication protocols and offers robust security features, making it suitable for diverse access control applications.

Key Features:

  • Supports TCP/IP, RS-485, and Wiegand communication protocols

  • Manages up to 4 doors with 2-way access

  • Stores up to 100,000 users and 500,000 card-swiping records

  • Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock

  • Equipped with alarm features: reader tamper, intrusion, unlocking timeout, duress, invalid card threshold, and incorrect password

  • Built-in RTC with manual and automatic time synchronization

  • Data retention during power failure and supports online upgrades

  • Watchdog mechanism ensures operational stability

Specifications:

  • Dimensions: 337 mm × 272 mm × 90 mm

  • Weight: 3.5 kg

  • Material: SECC steel board

  • Color Options: Black

  • Power Requirements: 100–240 V AC

  • Other Specs:

    • User Capacity: 100,000 users

    • Fingerprint Capacity: 3,000 fingerprints

    • Card Capacity: 100,000 cards

    • Record Capacity: 500,000 events

    • Alarm Inputs: 8 digital inputs

    • Alarm Outputs: 8 relay outputs

    • RS-485 Ports: 9

    • Wiegand Ports: 8

    • Network Interface: 1 × 10/100 Mbps Ethernet port

    • Operating Temperature: –30°C to +60°C

    • Operating Humidity: 5%–95% RH (non-condensing)

    • Installation: Surface mount

    • Certifications: CE, FCC, UL

4-Door 2-Way Access Controller

Product form

The Dahua ASC2204C-D is a multifunctional access controller designed for managing up to 4 doors with 2-way access. It supports... Read more

SKU: ASC2204C-D

215.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua ASC2204C-D is a multifunctional access controller designed for managing up to 4 doors with 2-way access. It supports various communication protocols and offers robust security features, making it suitable for diverse access control applications.

    Key Features:

    • Supports TCP/IP, RS-485, and Wiegand communication protocols

    • Manages up to 4 doors with 2-way access

    • Stores up to 100,000 users and 500,000 card-swiping records

    • Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock

    • Equipped with alarm features: reader tamper, intrusion, unlocking timeout, duress, invalid card threshold, and incorrect password

    • Built-in RTC with manual and automatic time synchronization

    • Data retention during power failure and supports online upgrades

    • Watchdog mechanism ensures operational stability

    Specifications:

    • Dimensions: 337 mm × 272 mm × 90 mm

    • Weight: 3.5 kg

    • Material: SECC steel board

    • Color Options: Black

    • Power Requirements: 100–240 V AC

    • Other Specs:

      • User Capacity: 100,000 users

      • Fingerprint Capacity: 3,000 fingerprints

      • Card Capacity: 100,000 cards

      • Record Capacity: 500,000 events

      • Alarm Inputs: 8 digital inputs

      • Alarm Outputs: 8 relay outputs

      • RS-485 Ports: 9

      • Wiegand Ports: 8

      • Network Interface: 1 × 10/100 Mbps Ethernet port

      • Operating Temperature: –30°C to +60°C

      • Operating Humidity: 5%–95% RH (non-condensing)

      • Installation: Surface mount

      • Certifications: CE, FCC, UL
