Description

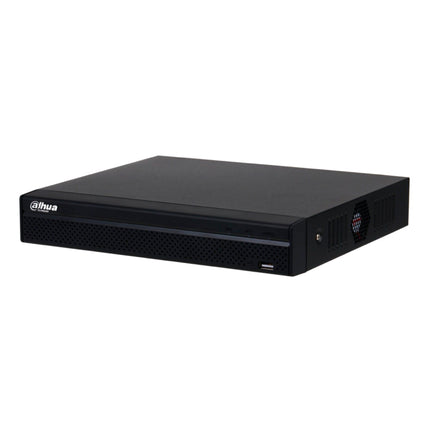

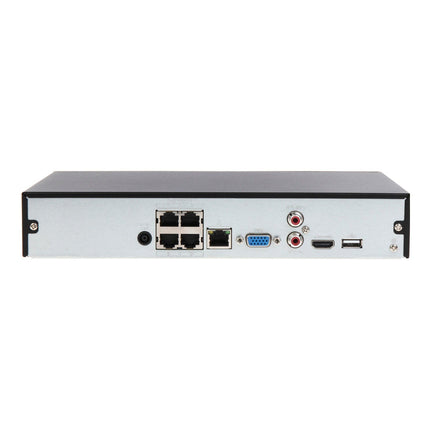

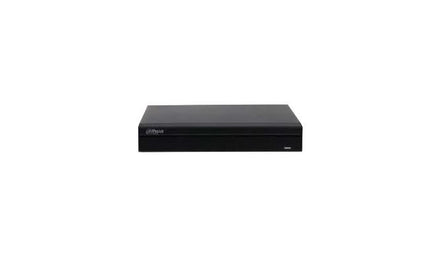

The Dahua DHI-NVR1104HS-P-S3-H is a compact 4-channel network video recorder featuring Power over Ethernet (PoE) support, Smart H.265+/H.264+ video compression, and a user-friendly interface. Designed for small to medium-sized surveillance setups, it offers efficient storage, remote monitoring, and seamless integration with ONVIF-compatible cameras.

Key Features:

  • 4-channel IP camera input

  • 4 PoE ports with a total power budget of 36W

  • Supports up to 8MP resolution

  • Smart H.265+/H.264+ video compression

  • HDMI and VGA simultaneous video output (max 1080p)

  • Remote access via mobile app (iDMSS/gDMSS)

  • ONVIF and RTSP protocol support

Specifications:

  • Dimensions: 260mm × 225mm × 47.6mm

  • Weight: 0.84 kg

  • Material: Metal

  • Color Options: Black

  • Power Requirements: DC 48V, 1.25A

  • Other Specs:

    • Video Input: 4 IP channels

    • PoE Ports: 4 (10/100 Mbps)

    • Maximum Decoding Capability: 1-ch@8MP (30fps), 4-ch@1080p (30fps)

    • Storage: 1 SATA port, up to 8TB

    • Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

    • Mobile Access: iDMSS (iOS), gDMSS (Android)

    • USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)

    • Operating Temperature: -10°C to +45°C

    • Storage Temperature: 0°C to +40°C

    • Operating Humidity: 10%~93%

    • Storage Humidity: 30%~85%

4 Channel Compact 1U 1HDD 4 PoE Network Video Recorder

Product form

SKU: DHI-NVR1104HS-P-S3-H

75.000 JOD

    Description

    The Dahua DHI-NVR1104HS-P-S3-H is a compact 4-channel network video recorder featuring Power over Ethernet (PoE) support, Smart H.265+/H.264+ video compression, and a user-friendly interface. Designed for small to medium-sized surveillance setups, it offers efficient storage, remote monitoring, and seamless integration with ONVIF-compatible cameras.

    Key Features:

    • 4-channel IP camera input

    • 4 PoE ports with a total power budget of 36W

    • Supports up to 8MP resolution

    • Smart H.265+/H.264+ video compression

    • HDMI and VGA simultaneous video output (max 1080p)

    • Remote access via mobile app (iDMSS/gDMSS)

    • ONVIF and RTSP protocol support

    Specifications:

    • Dimensions: 260mm × 225mm × 47.6mm

    • Weight: 0.84 kg

    • Material: Metal

    • Color Options: Black

    • Power Requirements: DC 48V, 1.25A

    • Other Specs:

      • Video Input: 4 IP channels

      • PoE Ports: 4 (10/100 Mbps)

      • Maximum Decoding Capability: 1-ch@8MP (30fps), 4-ch@1080p (30fps)

      • Storage: 1 SATA port, up to 8TB

      • Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

      • Mobile Access: iDMSS (iOS), gDMSS (Android)

      • USB Ports: 2 (1 front USB 2.0, 1 rear USB 2.0)

      • Operating Temperature: -10°C to +45°C

      • Storage Temperature: 0°C to +40°C

      • Operating Humidity: 10%~93%

      • Storage Humidity: 30%~85%
