Description

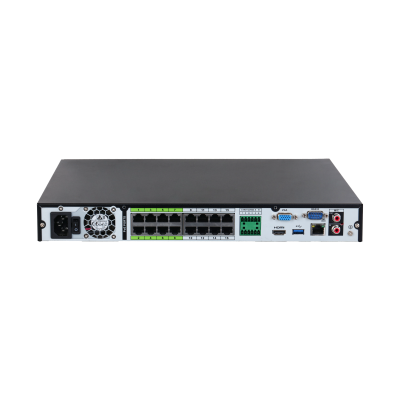

The Dahua DHI-NVR5232-16P-EI is a high-performance 32-channel network video recorder from the WizSense series. It features 16 PoE ports, supports up to 32MP IP cameras, and offers advanced AI functions including face recognition, perimeter protection, and SMD Plus.
Key Features:
-
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats
-
Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps
-
Max. 384 Mbps incoming/recording/outgoing bandwidth
-
Supports IP cameras with a resolution up to 32 MP
-
Supports AcuPick with up to 32 channels
-
Supports N+M cluster
-
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
Specifications:
-
Dimensions: 375.0 mm × 327.0 mm × 53.0 mm
-
Weight: 2.66 kg
-
Material: Metal casing
-
Color Options: Black
-
Power Requirements: 100–240 VAC, 47–63 Hz
-
Other Specs:
-
2 SATA ports, up to 16 TB for each HDD
-
16 PoE ports (IEEE802.3af/at), total output power ≤ 130W
-
1 HDMI and 1 VGA output
-
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
-
1 USB 2.0 port (front), 1 USB 3.0 port (rear)
-
Operating temperature: –10°C to +55°C
-
Operating humidity: 10%–93%
-
Rack or desktop installation
