Description

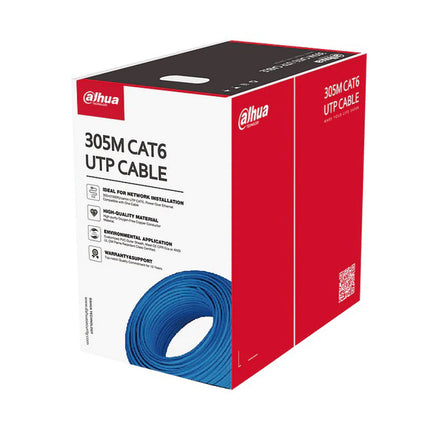

The Dahua DH-PFM920I-6UN-C is a high-performance 305-meter UTP CAT6 network cable designed for efficient data transmission and Power over Ethernet (PoE) applications. Constructed with high-purity oxygen-free copper conductors and a customized PVC outer sheath, this cable ensures reliable connectivity and meets CE CPR Eca flame retardant standards, making it suitable for various networking environments.
Key Features:
-
305 meters (1000 feet) per carton
-
High-purity (99.97%) oxygen-free copper conductors
-
Customized PVC outer sheath with CE CPR Eca flame retardant certification
-
Supports Power over Ethernet (PoE) applications
-
Complies with Category 6 standards for high-speed data transmission
Specifications:
-
Conductor Material: Oxygen-free copper (99.97% purity)
-
Conductor Diameter: 0.53 mm ± 0.01 mm
-
Insulation Material: High-Density Polyethylene (HDPE)
-
Insulation Diameter: 0.95 mm ± 0.1 mm
-
Color Code (4 Pairs): Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
-
Separator Material: Polyethylene (PE), translucent 4.5 × 0.4 mm
-
Rip Cord Material: Polyester, 500D specification
-
Sheath Material: PVC
-
Sheath Diameter: 6.0 mm ± 0.3 mm
-
Sheath Color: White
-
Electrical Performance:
-
Max. DC Resistance (Single Conductor): 8.7 Ω/100 m
-
Min. Insulation Resistance: 5000 MΩ·km
-
Max. DC Resistance Unbalance: 2% (intra-pair), 4% (inter-pair)
-
Dielectric Strength: No breakdown at 1 KV DC for 1 minute
-
Transmission Characteristics:
-
Characteristic Impedance: 100 ± 15 Ω
-
Near End Crosstalk (NEXT): ≥39.3 dB/100 m @ 250 MHz
-
Max. Attenuation: 34.8 dB/100 m @ 250 MHz
-
Return Loss: ≥17.3 dB/100 m @ 250 MHz
-
Mechanical Properties:
-
Tensile Strength (Sheath): ≥13.5 MPa
-
Tensile Strength (Insulation): ≥16 MPa
-
Elongation at Break (Sheath): ≥150%
-
Elongation at Break (Insulation): ≥300%
-
Minimum Bending Radius:
8 times the outer cable diameter
-
Environmental Conditions:
-
Operating Temperature: –20°C to +60°C
-
Installation Temperature: 0°C to +50°C
-
Storage Temperature and Humidity: –10°C to +40°C, <60% RH
-
