Description

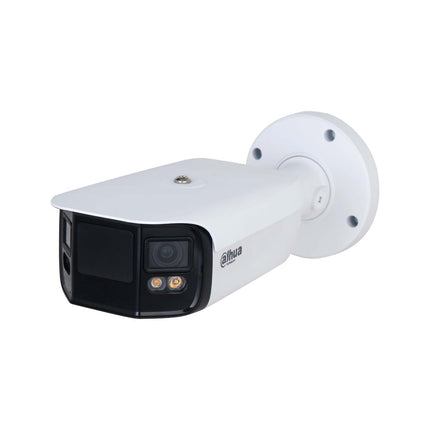

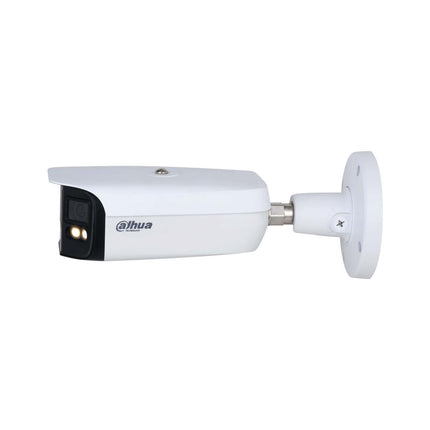

The Dahua IPC-PFW5849-A180-E2-ASTE is a high-performance network camera featuring dual 4MP sensors that stitch together a seamless 180° panoramic view. Equipped with full-color technology and built-in warm LEDs, it delivers vivid color images even in low-light conditions. Advanced AI capabilities, including perimeter protection, people counting, and smart motion detection, make it ideal for comprehensive surveillance applications.
Key Features:
-
Dual 4MP sensors providing a combined 8MP (4096 × 1800) resolution at 25 fps
-
180° wide-angle panoramic splicing image
-
Full-color imaging with built-in warm light LEDs (up to 40 m illumination)
-
Advanced AI functions: intrusion detection, tripwire, people counting, heat map
-
Smart Motion Detection (SMD) 3.0
-
ePTZ functionality for intelligent target tracking
-
Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 encoding
-
Built-in microphone and speaker supporting two-way talk
-
Supports up to 512 GB Micro SD card
-
IP67-rated weatherproof housing
Specifications:
-
Dimensions: 301.2 mm × 128.2 mm × 120.1 mm
-
Weight: 1.42 kg
-
Material: Metal and plastic
-
Color Options: White
-
Power Requirements: 12 VDC ±30% / PoE (802.3af) / ePoE
-
Other Specs:
-
Image Sensor: Dual 1/1.8" CMOS
-
Lens: 3.6 mm fixed lens
-
Min. Illumination: 0.0005 lux@F1.0 (Color, 30 IRE), 0 lux with LED on
-
Video Compression: H.265, H.264, MJPEG (sub stream only)
-
Frame Rate: Main stream: 4096 × 1800 @1–25 fps
-
Audio Input/Output: 1/1 channel, built-in mic and speaker
-
Alarm Input/Output: 1/1 channel
-
Operating Temperature: –30°C to +60°C
-
Operating Humidity: ≤95% RH
-
Storage: Supports Micro SD card up to 512 GB
-
Ingress Protection: IP67
