Description

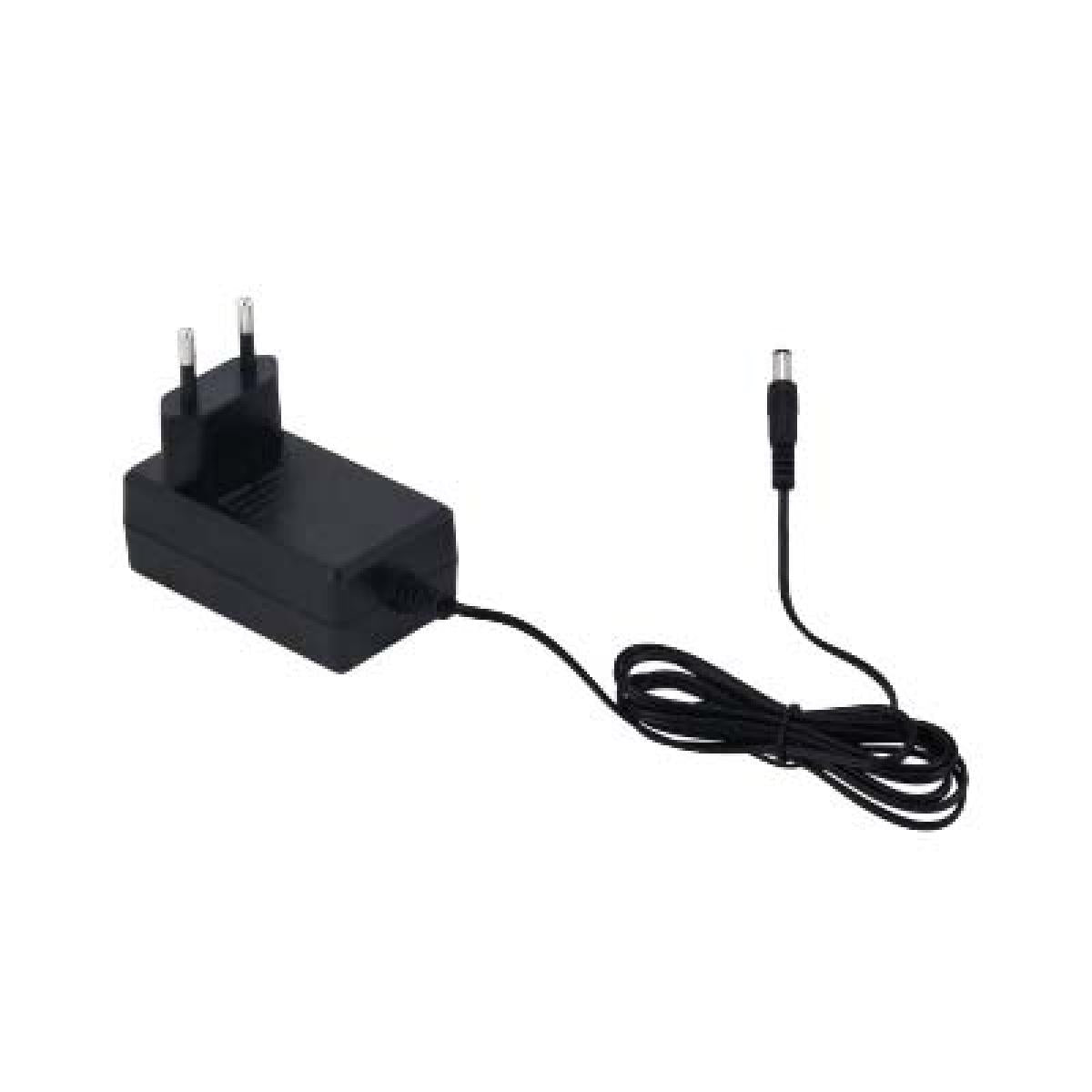

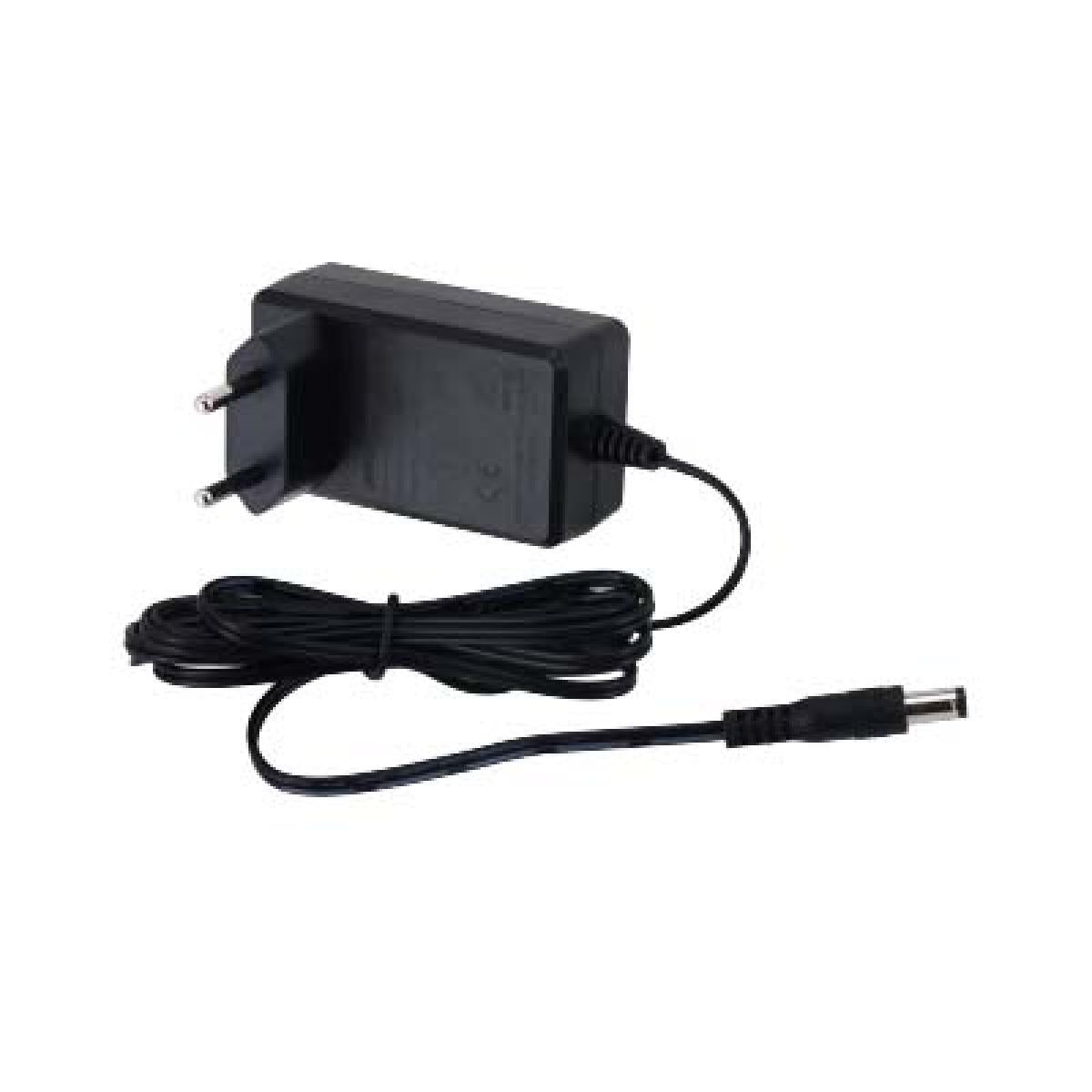

The Dahua PFM320-010EN is a reliable 12V DC 1A power adapter designed to provide stable power supply for various electronic devices. It features a wide input voltage range and multiple protection mechanisms, ensuring safe and efficient operation

Key Features:

  • Wide input voltage range: 100–240 VAC

  • Output voltage: 12V DC with ±7% tolerance

  • Rated output current: 1A

  • Output power: 12W

  • High energy efficiency: ≥82.96%

  • Low no-load power consumption: ≤0.1W

  • Multiple protection features: over voltage, over current, short circuit, and input protection

  • Flame-resistant shell with V-0 level rating

  • Easy wall-mount installation

Specifications:

  • Dimensions: 70.0 mm × 40.0 mm × 27.5 mm

  • Weight: 0.084 kg

  • Material: Plastic casing

  • Color Options: Black

  • Power Requirements: 100–240 VAC, 50/60 Hz

  • Other Specs:

    • Output Cable Length: 1500 mm

    • Output Plug: Φ5.5 mm × Φ2.1 mm × 10 mm

    • Operating Temperature: 0°C to +40°C

    • Operating Humidity: 10%–90% RH

    • Storage Temperature: –40°C to +80°C

    • Storage Humidity: 5%–95% RH

    • Certifications: CE

12V DC 1A Power Adapter

Product form

The Dahua PFM320-010EN is a reliable 12V DC 1A power adapter designed to provide stable power supply for various electronic... Read more

SKU: PFM320

3.000 JOD

🚚 توصلك بسرعة

    Description

    The Dahua PFM320-010EN is a reliable 12V DC 1A power adapter designed to provide stable power supply for various electronic devices. It features a wide input voltage range and multiple protection mechanisms, ensuring safe and efficient operation

    Key Features:

    • Wide input voltage range: 100–240 VAC

    • Output voltage: 12V DC with ±7% tolerance

    • Rated output current: 1A

    • Output power: 12W

    • High energy efficiency: ≥82.96%

    • Low no-load power consumption: ≤0.1W

    • Multiple protection features: over voltage, over current, short circuit, and input protection

    • Flame-resistant shell with V-0 level rating

    • Easy wall-mount installation

    Specifications:

    • Dimensions: 70.0 mm × 40.0 mm × 27.5 mm

    • Weight: 0.084 kg

    • Material: Plastic casing

    • Color Options: Black

    • Power Requirements: 100–240 VAC, 50/60 Hz

    • Other Specs:

      • Output Cable Length: 1500 mm

      • Output Plug: Φ5.5 mm × Φ2.1 mm × 10 mm

      • Operating Temperature: 0°C to +40°C

      • Operating Humidity: 10%–90% RH

      • Storage Temperature: –40°C to +80°C

      • Storage Humidity: 5%–95% RH

      • Certifications: CE
