Description

The Dahua DHI-NVR616H-128-XI is a high-performance 128-channel network video recorder from the WizMind series, designed for large-scale surveillance applications. It supports advanced AI features such as face detection, perimeter protection, and SMD Plus, ensuring intelligent and efficient video monitoring.

Key Features:

  • Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats

  • Maximum decoding capability: 32 × 1080p@30 fps

  • Maximum 1280 Mbps incoming, 1280 Mbps recording, and 1024 Mbps outgoing bandwidth

  • Supports IP cameras with resolutions up to 32 MP

  • AI by recorder: 8-channel face detection and recognition, up to 40 face databases and 300,000 face images; 8-channel metadata; 32-channel perimeter protection; 32-channel SMD Plus

  • AI by camera: supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting

  • Supports AcuPick with up to 64 channels

  • Supports N+M cluster, RAID 0/1/5/6/10, and iSCSI

  • Drawer-like chassis design allows for HDD hot swapping

  • Supports EPTZ, one-click arming & disarming

  • Security baseline 2.3

Specifications:

  • Dimensions: 485 mm × 133.2 mm × 508.3 mm

  • Weight: Approximately 11.95 kg

  • Material: Metal enclosure

  • Color Options: Black

  • Power Requirements: AC 100–240V, 50/60Hz

  • Other Specs:

    • 16 SATA III ports, each supporting up to 10 TB HDD

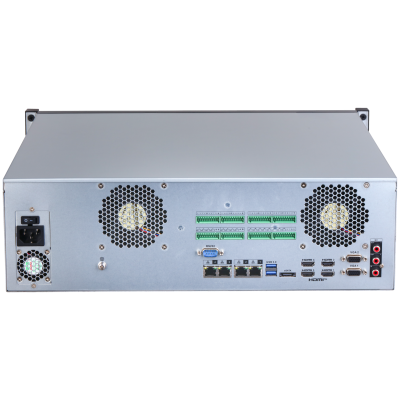

    • 4 HDMI (HDMI3 up to 8K) and 2 VGA video outputs

    • Supports various network protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI

    • Browser support: Chrome, IE, Safari, Edge, Firefox

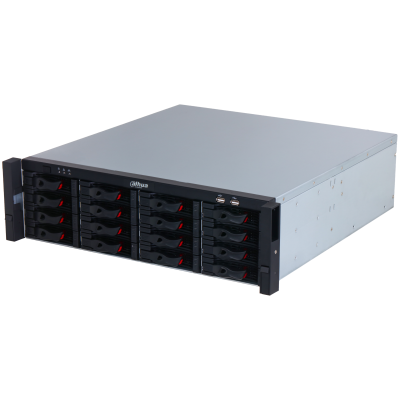

128-Channel 3U 16HDDs WizMind Network Video Recorder

Product form

SKU: NVR616H-128-XI

2,650.000 JOD

Order this product via WhatsApp
Message us on WhatsApp to book this product or ask about availability
We will confirm your request on WhatsApp as soon as possible
WhatsApp Order Via WhatsApp

Description

The Dahua DHI-NVR616H-128-XI is a high-performance 128-channel network video recorder from the WizMind series, designed for large-scale surveillance applications. It supports advanced AI features such as face detection, perimeter protection, and SMD Plus, ensuring intelligent and efficient video monitoring.

Key Features:

  • Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding formats

  • Maximum decoding capability: 32 × 1080p@30 fps

  • Maximum 1280 Mbps incoming, 1280 Mbps recording, and 1024 Mbps outgoing bandwidth

  • Supports IP cameras with resolutions up to 32 MP

  • AI by recorder: 8-channel face detection and recognition, up to 40 face databases and 300,000 face images; 8-channel metadata; 32-channel perimeter protection; 32-channel SMD Plus

  • AI by camera: supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting

  • Supports AcuPick with up to 64 channels

  • Supports N+M cluster, RAID 0/1/5/6/10, and iSCSI

  • Drawer-like chassis design allows for HDD hot swapping

  • Supports EPTZ, one-click arming & disarming

  • Security baseline 2.3

Specifications:

  • Dimensions: 485 mm × 133.2 mm × 508.3 mm

  • Weight: Approximately 11.95 kg

  • Material: Metal enclosure

  • Color Options: Black

  • Power Requirements: AC 100–240V, 50/60Hz

  • Other Specs:

    • 16 SATA III ports, each supporting up to 10 TB HDD

    • 4 HDMI (HDMI3 up to 8K) and 2 VGA video outputs

    • Supports various network protocols including HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI

    • Browser support: Chrome, IE, Safari, Edge, Firefox
